Rubbermaid 401096 - Manual

Installation Instructions
High Mount
Adaptor Kit
Chrome Adaptor
Anti-Rotational Sleeves
Pink Washer
(Included with Adaptor Kit)
Pink Washer
(Included with Automatic Flush)
Plastic
Push rod
Components:
401096
For Automatic Flusher
RIGHT LEFT

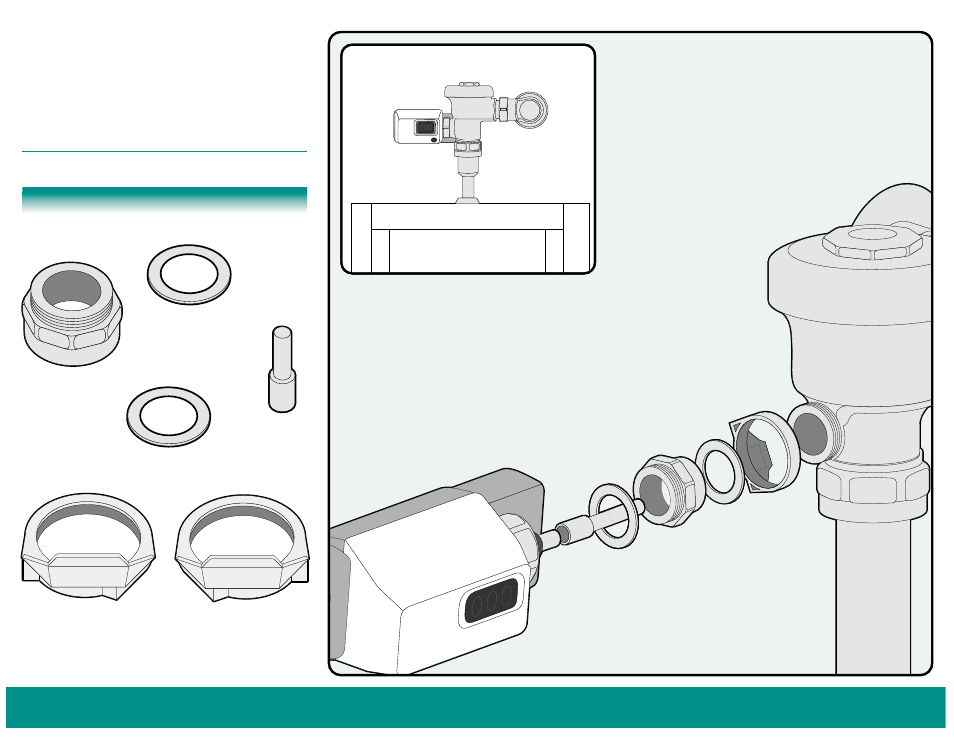

1. Remove valve handle assembly
2. Install pink washer into chrome adaptor
3. Install anti-rotational sleeve on the side of
the chrome adaptor with the pink washer
* This adaptor kit includes two different anti-rotational sleeves. One is to be used for a
left handed valve assembly and the other is for a right handed valve assembly. When
installed properly the lens should be pointing down at approximately a 45
° angle.
LEFT LEFT
4. Attach chrome adaptor and anti-rotational
sleeve to your plumbing flush valve assembly
assuring flat extension rests on the back of
the flush valve assembly. Tighten securely
with wrench (included with
Automatic Flush unit).
5. Install plastic push rod extension
onto end of Automatic Flush
metal push rod.
Press push rod
extension tip
against hard
surface until
extension is fully
seated on push rod.
6. Install Automatic Flush
unit onto chrome adaptor
with pink washer.
Tighten chrome nut.
