PS-75DBDRAG-STRUT · Pro Drag Strut 2010/2011
7

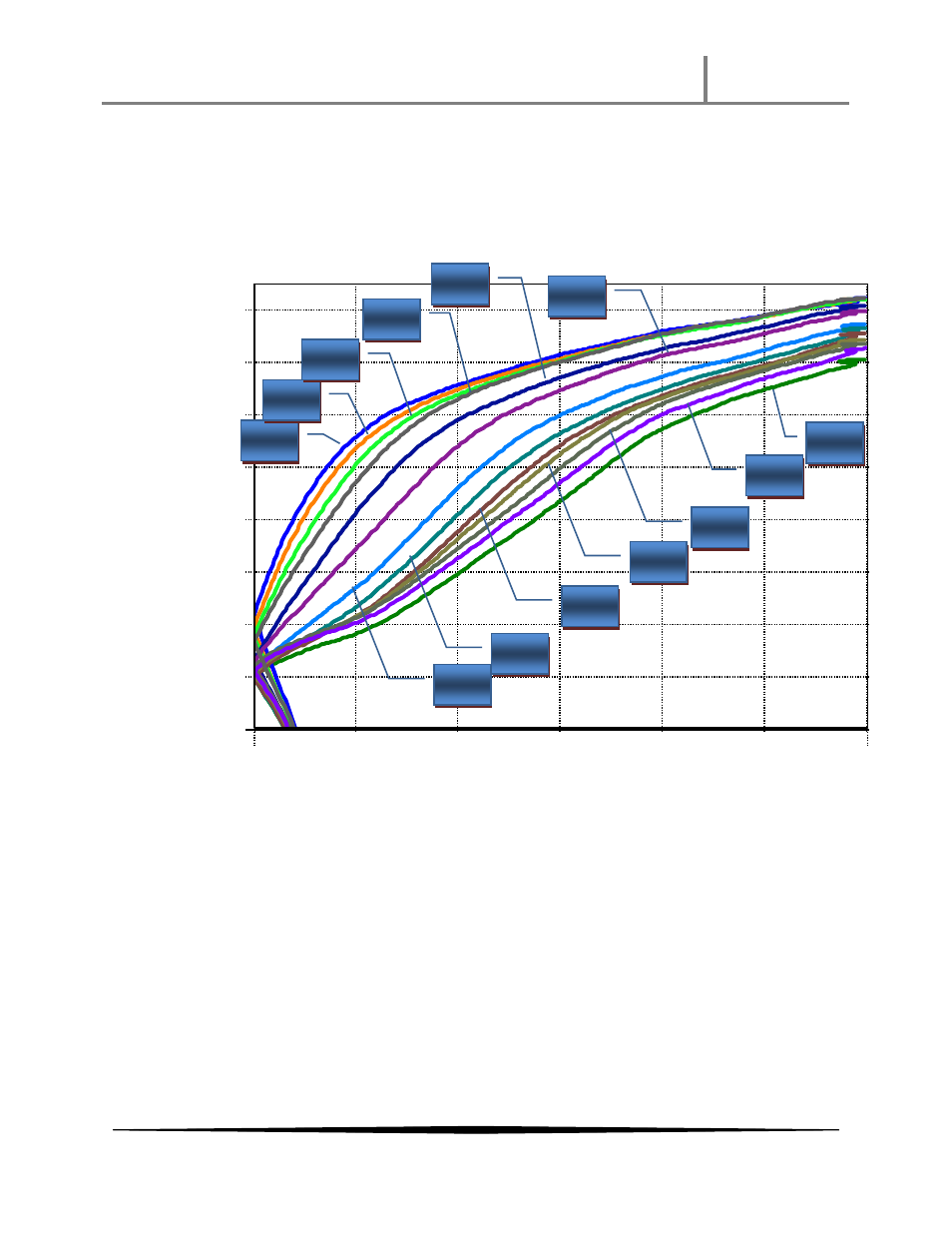

Adjustment Range: COMPRESSION (20 Clicks)
The adjustment range of the compression adjuster works primarily in the low-speed area of the velocity
spectrum. This is from
0-2 in/sec in strut velocity. Testing has shown that this is the area where
transients to the chassis can be tuned depending on driver preference and down-track aero
performance.
For
ce
(
lb
s)
0
20
40
60
80
100
120
140
160
0.5 1.0 1.5 2.0 2.5
0.00 3.01
Velocity (in/sec)
