Nitrous Express Radio Controlled Nitrous System - Manual (Page 3)

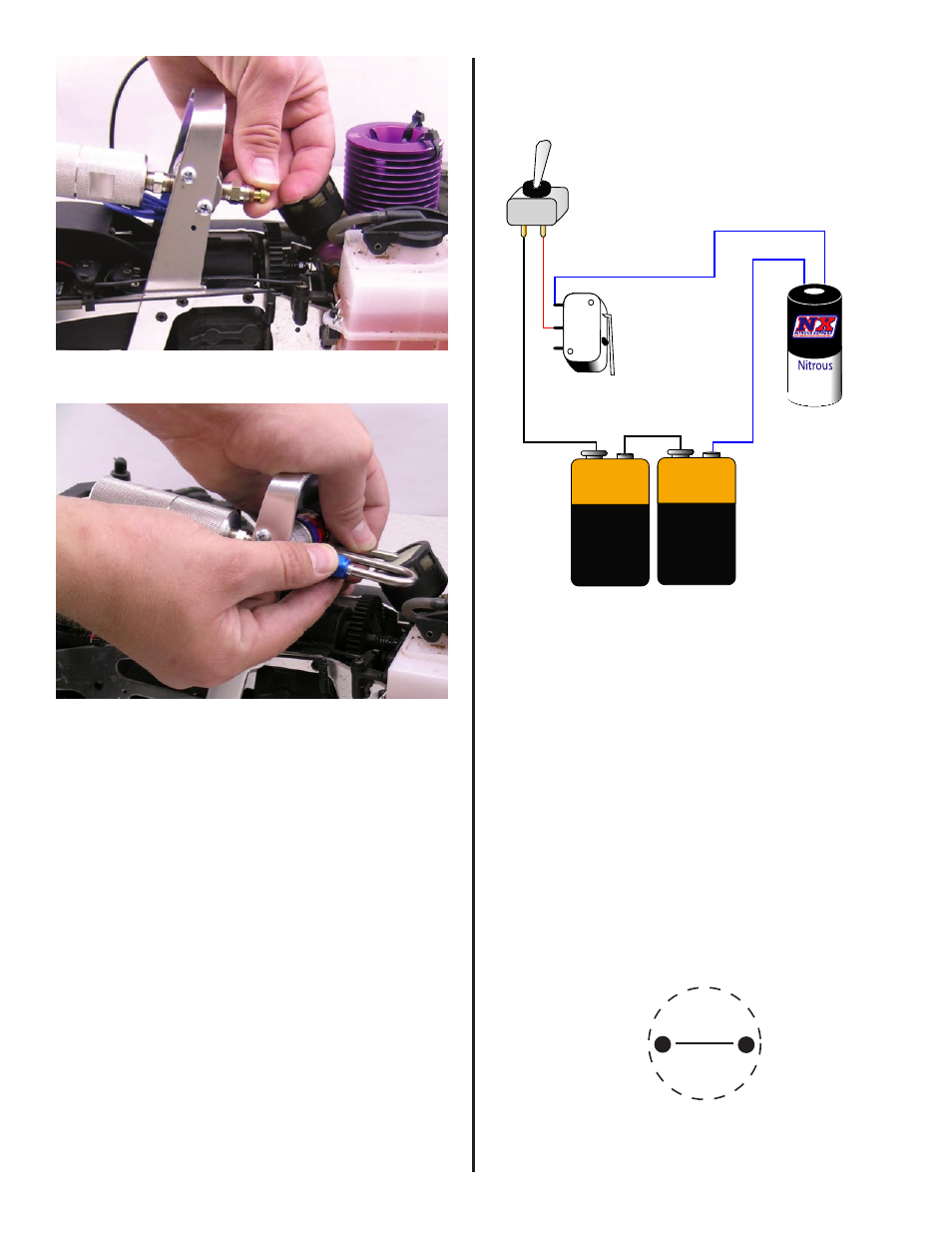

Install the .009 NX Jet into the jet fitting.
Bend stainless to fit from the end of the jet to point
directly into air filter. This step will differ for every
RC Vehicle.
Once all steps are completed, make sure all fittings,
nuts and bolts are tightened. Re-install any covers
or clips that were removed in the process. Now
following the wiring diagram solder all connections
to complete the install. Once all connections are
soldered, test system by arming the toggle switch and
pull the trigger until wide-open-throttle is achieved.
The nitrous solenoid should click. After the system
is functioning properly, Open the cartridge crusher,
insert a cartridge, and thread the crusher closed until
the cartridge is punctured.
Toggle
Switch
Micro Switch
N/C Contact not used
Nitrous Solenoid
6/,4 6/,4
9 Volt Batteries Must
Be Run In Series
+ + - -
Drill
V
V
Wiring Diagram
Cut out solenoid template for proper hole alignment,
angle of holes may vary depending on solenoid
location.
