STEERING CONTROL SYSTEM

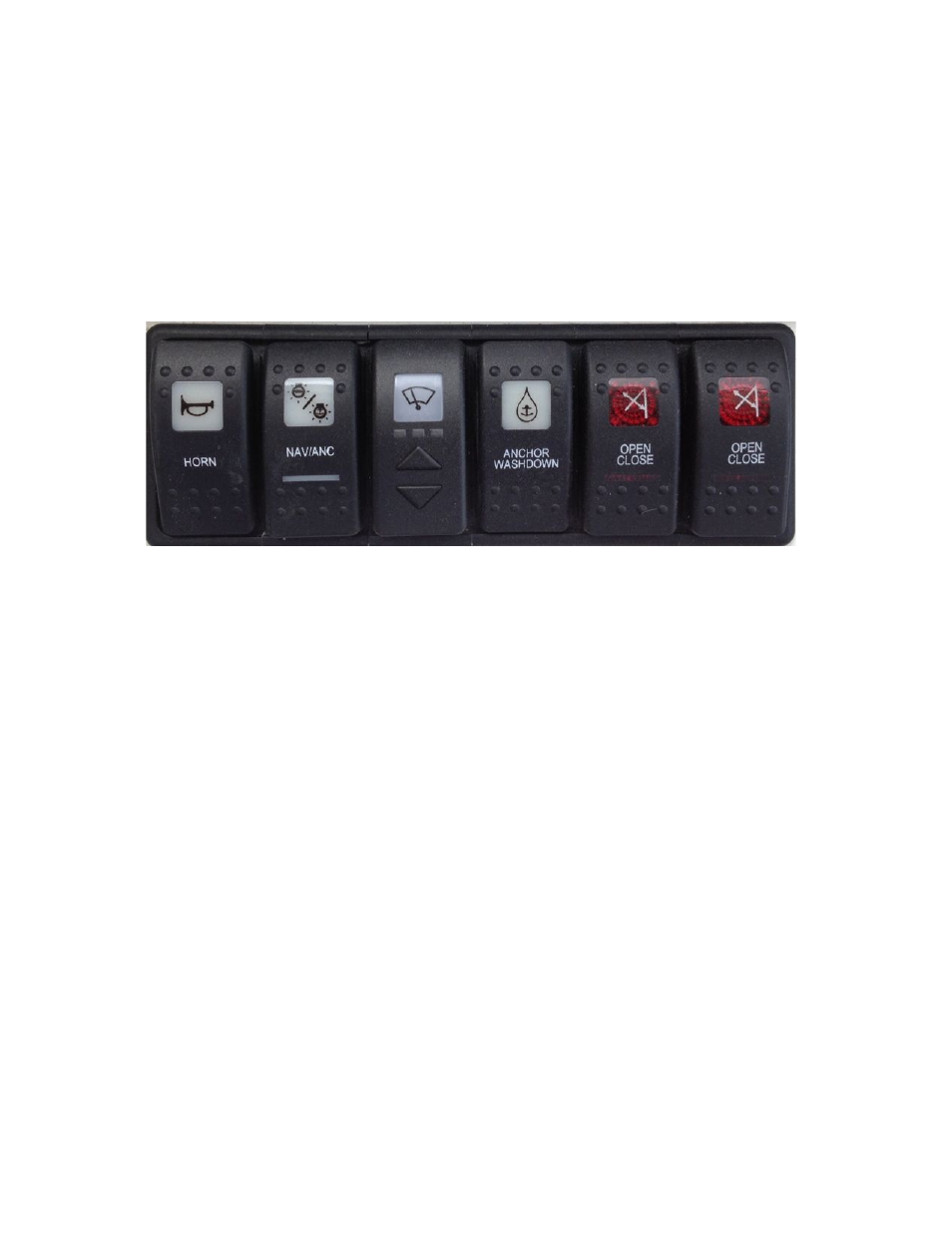

4.3 CONSOLE SWITCH PANEL
With the exception of the Anchor Washdown which is activated along with the “Windlass” breaker
(and must have the “Water Pressure” switch ON as does the washer function of the “Wiper”
switch) funcitons of this panel on the console are activated by turning on their respective breaker
switches on the DC Electrical Panel in the main saloon.
Functions of the panel rocker switches are described below the corresponding switch:
Sound
HORN
POWER TRIM
Activate by turning on the ignition. The current position (angle) of the drivea can be shown on the
Engine Display.
To move both drives simultaneously, RAISE or LOWER the Bow, PRESS the rocker switch on the
port engine control handle.
To move just one drive at a time, consult the Yanmar Owners Manual.
Emergency Trimming. If a fault prevents the trim panel from working, PRESS & HOLD the
BACK button (--) on the EVC Control Panel then trim the drive using the Trim Panel. This action
over-rides preset automatic trim limits.
To determine the best trim angle and ranges, familiarize yourself with the characteristics of the
boat, recording the RPMs and trim position at various speeds and in various wave conditions.
Beach Range – Used for running in shallow water at reduced speed of not greater than 1500
rpm. Make sure the drive’s raw water intake is never trimmed out of the water.
CHAPTER 4
WIPER
Press when
Raising Rode,
Chain & Anchor
to Wash with
Fresh Water
NAV LTS
FWD
Underway
AFT
At Anchor
WASHERS
Read Instr
Booklet.
CHAPTER 4
PORT STBD
WINDSHIELD CONTROLS
