MBRP IC2317 - Manual (Page 3)

IC2317 © 10/13 PAGE 3 OF 4
6. Remove both of the factory air charge pipes from the vehicle.
7. Remove the throttle body air charge hose from the factory adaptor for re-use.
Refer to Figure 8.
Installation of MBRP Inc. Intercooler Pipes:
Note: The hoses supplied are a tight fit to the pipes. Some silicone spray or
other suitable lubricant is required for installation.
1. Install the throttle body air charge hose onto the Right Hand Intercooler
Pipe, using one 3” T-Bolt Clamp. Place one 3” T-Bolt Clamp on the throttle
body air charge hose. Position the clamps so you can access them to tighten once
the pipe is in place.
2. Place one 3” T-Bolt Clamp over the intercooler outlet.
Refer to Figure 9.
3. Position the Right Hand Intercooler Pipe in place. Place one 3” T-Bolt
Clamp over the Right Hand Intercooler Pipe. Carefully install the Hose Elbow
onto the intercooler outlet and the Right Hand Intercooler Pipe. It is a very
tight fit requiring some extra patience.
Refer to Figure 10.
4. Install the throttle body air charge hose connector onto the throttle body and
the 3” T-Bolt Clamp onto the Hose Elbow.

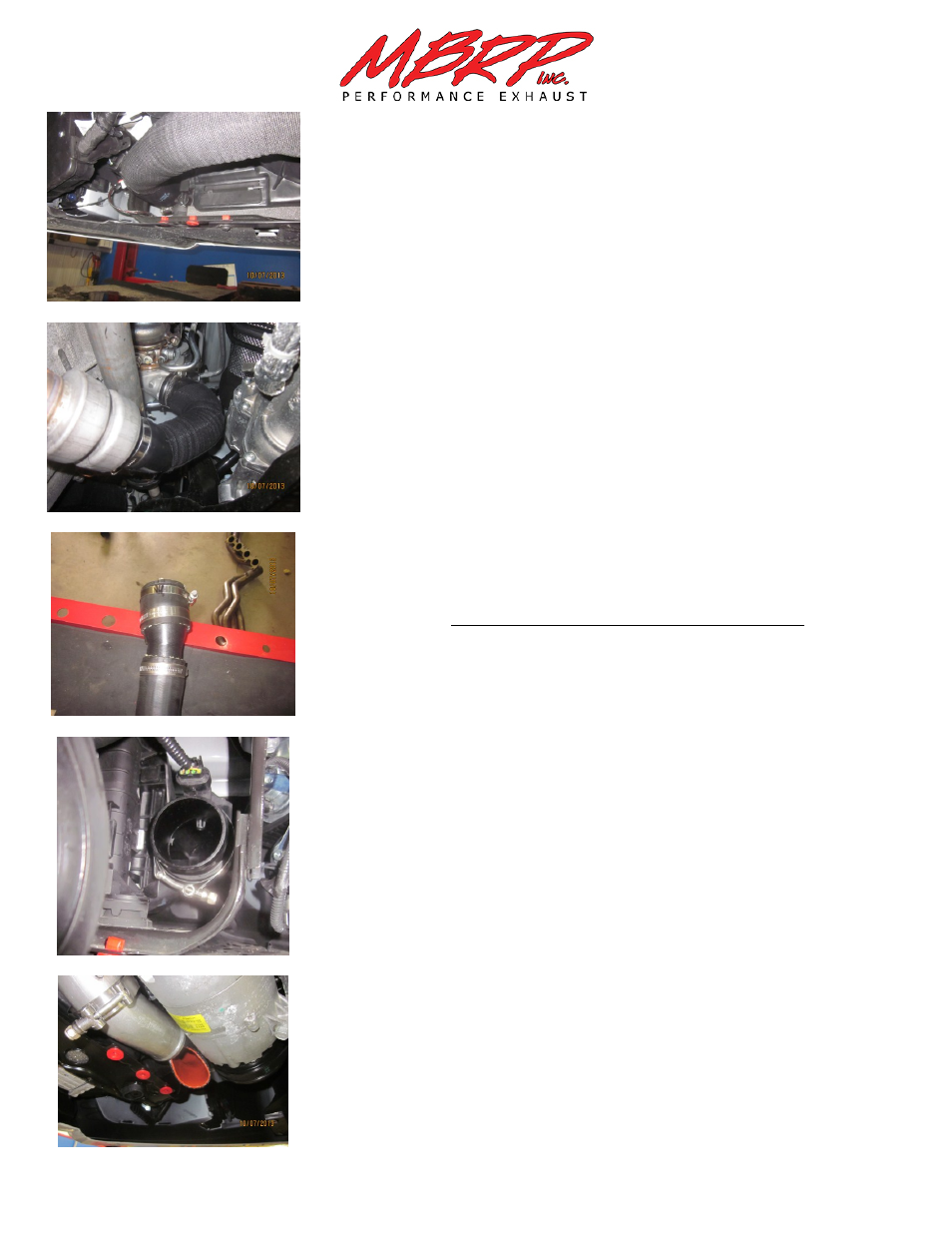

Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
