MBRP S5526 - Manual (Page 3)

S5526 © 01/13 PAGE 3 OF 3
Installation of MBRP Inc. Performance Exhaust:
1. Install the Extension Pipe using a 2 ½” Clamp and attaching it
to the existing rubber isolator. Leave the clamp loose enough for
some adjustment. Refer to Figure 5. NOTE: for the 2 door model
the extension pipe will need to be shortened by 20½”
2. Slide a 2 ½” Clamp over the Extension Pipe and then install the
Over Axle Pipe to the Extension Pipe. Attach the Over Axle Pipe
hanger to the existing rubber isolator. Refer to Figure 6.
3. Slide a 2 ½” Clamp onto the Over Axle Pipe. Install the Muffler to
the Over Axle Pipe, and then install the Muffler hanger into the factory
rubber insulator. Refer to Figure 7.
4. Slide a 2 ½” Clamp over the Tail Pipe and install onto the Muffler.
Slide the Tail Pipe hanger into the existing the rubber insulator.
Refer to Figure 8.
5. Install the Exhaust Tip onto the Tail Pipe and tighten.
6. Align the exhaust as required. Starting at the front of the exhaust,
tighten all clamps and connections.
7. Reinstall the guard below the transfer case.
8. Check along the whole length of the exhaust system to ensure that
there is adequate clearance around the spare tire, fuel and brake lines or
any wiring. If any interference is detected relocate or adjust.
Congratulations! You are ready to begin experiencing the improved
power, sound and driving experience of your MBRP Inc. performance
exhaust system. We hope you enjoy your purchase.

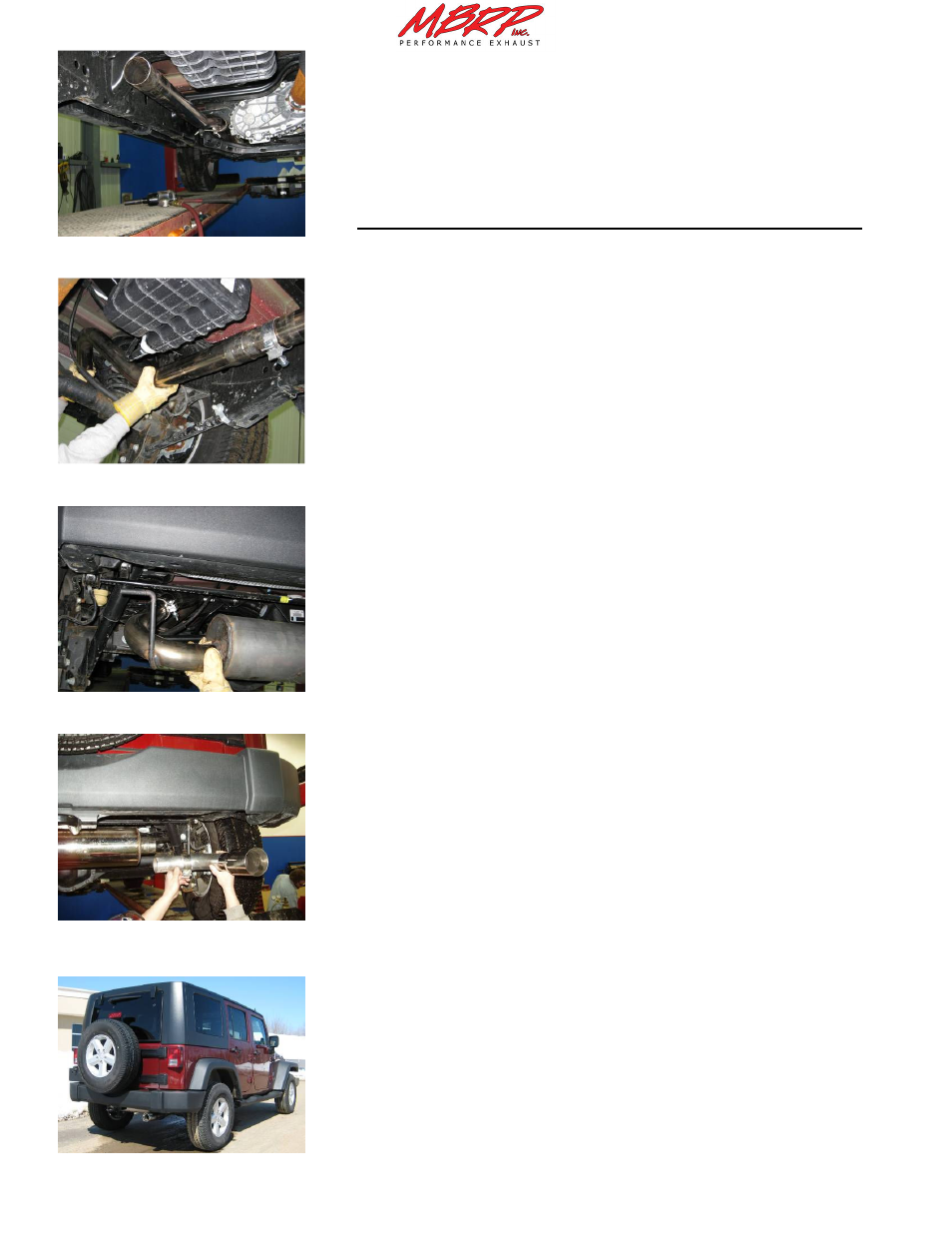

Figure 5
