Smokers – MBRP S8120 User Manual
Page 2
S8120 © 06/12
PAGE 2 OF 4
Removal of Stock System:
1. Apply a penetrating lubricant liberally to all exhaust fasteners, hangers and
rubber insulators.
2. Remove the exhaust system from the rubber insulators and remove all of
the clamps from the system.
3. Separate the slip joint behind the muffler and remove the tail pipe. Then,
separate the slip joint located behind the catalytic converter and remove the
muffler and extension pipe. Remove the catalytic converter by separating
the slip joint located between the down pipe and the catalytic converter.
Finally loosen the band clamp connecting the down pipe to the turbo and
remove the down pipe. Do not discard the band clamp as it is required
for the installation. See Figure 1.
4. Remove the OEM down pipe hanger bracket from the bell-housing. Do not
discard this part and hardware as they are required for the
installation. See Figure 1.
Installation of MBRP Inc. ““““
Smokers
Smokers
Smokers
Smokers
TM
TM
TM
TM
””””
:
1. Slide the OEM down pipe hanger bracket onto the Down Pipe hanger.
Install the Down Pipe in the same position as the stock down pipe by
reattaching the hanger bracket to the bell-housing and then attaching the
flared end to the turbo using the stock band clamp. Do not fully tighten
until all components are in place. Refer to Figure 2.
2. Loosely install the Extension Pipe 40 5/8” over the Down Pipe. The
Extension Pipe may require cutting to accommodate vehicles other than
the Quad Cab long box. Refer to Figure 3.
3. Loosely assemble the in bed portion of the T-Pipe assembly (T-Pipe, 13”
Elbow and 37” Elbow). Some models may require trimming of the T-Pipe
in order to accommodate the width of the truck bed and the Stacks that
have been purchased. Be sure to place the Band Clamps over the pieces
before they are assembled.
4. Place the Stacks onto the T-Pipe assembly and place into the desired
position in the truck bed. The 37” Elbow should be on the driver side so
that the T-Pipe passes through the bed floor towards the passenger side.
Refer to Figure 4.

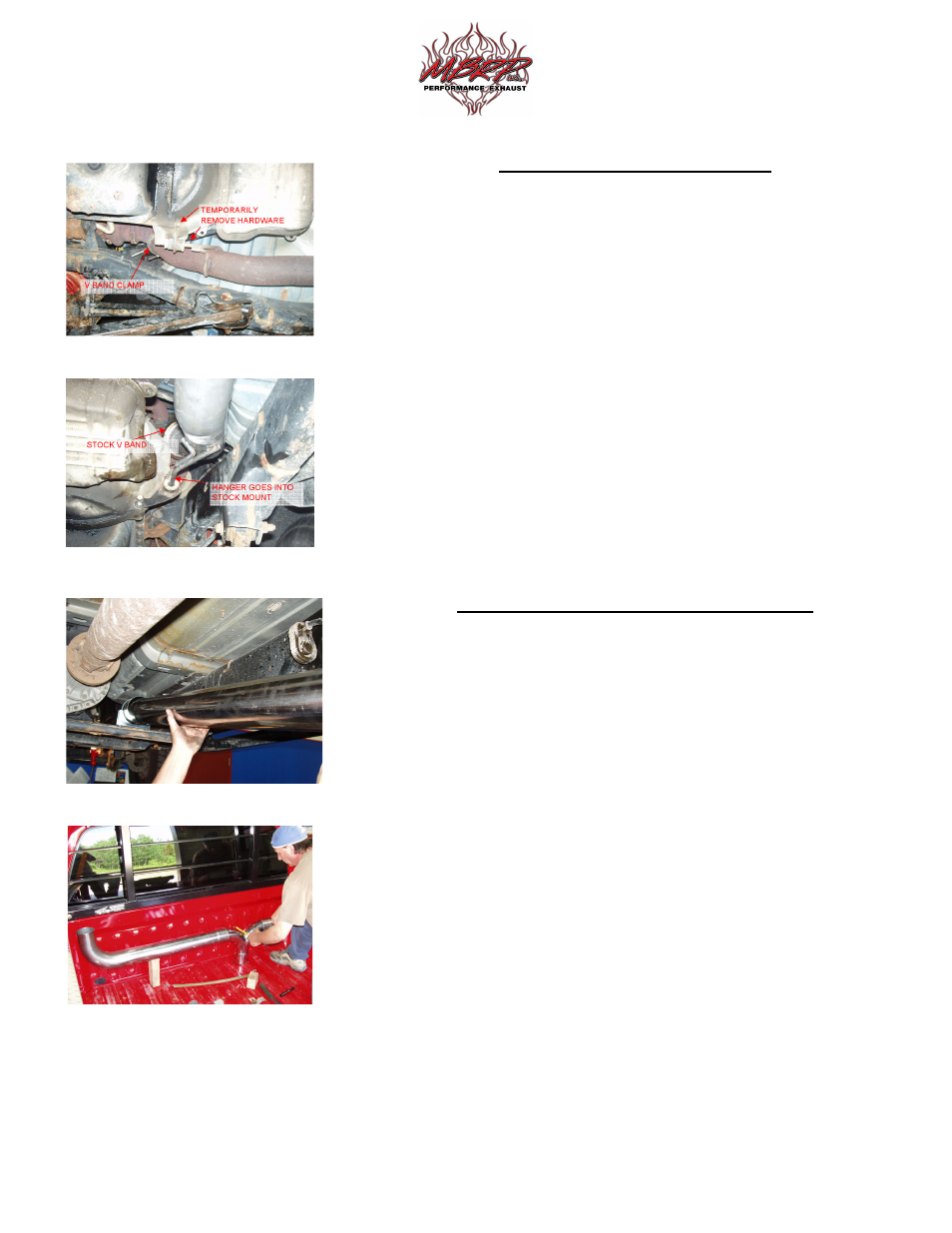

Figure 1
Figure 2
Figure 3
Figure 4
