S8206 © 11/09 PAGE 4 OF 4
8. Slide the Bed Mounting Bracket onto the 18” Extension Pipe. Install the assembly on the outlet of the Elbow
along with the required Clamp. Reinstall the Stack by sliding the inlet over the 18” Extension Pipe and then
securing the Stack to the Stack Mounting Bracket with the Clamp supplied with your Stack. Align the system
and tighten all Clamps to ensure that your
“Smokers “Smokers “Smokers “Smokers
TM TM TM TM
”””” exhaust system remains properly aligned.
9. Slide the Bed Mounting Bracket to the desired position on the 18” Extension Pipe to allow installation of the
mounting hardware. Ensure that the Stack is vertical. Trace the Bed Mounting Bracket hole from the bracket to
the floor and drill a hole to accommodate the 3/8” hardware supplied. Secure the Bed Mounting Bracket to the
truck and tighten the Clamp to the 18” Extension Pipe. This Clamp will ensure the Stack remains in position and
doesn’t vibrate.
10. Check along the whole length of the exhaust system to ensure that there is adequate clearance around fuel lines,
brake lines and any wiring. If any interference is detected relocate or adjust.

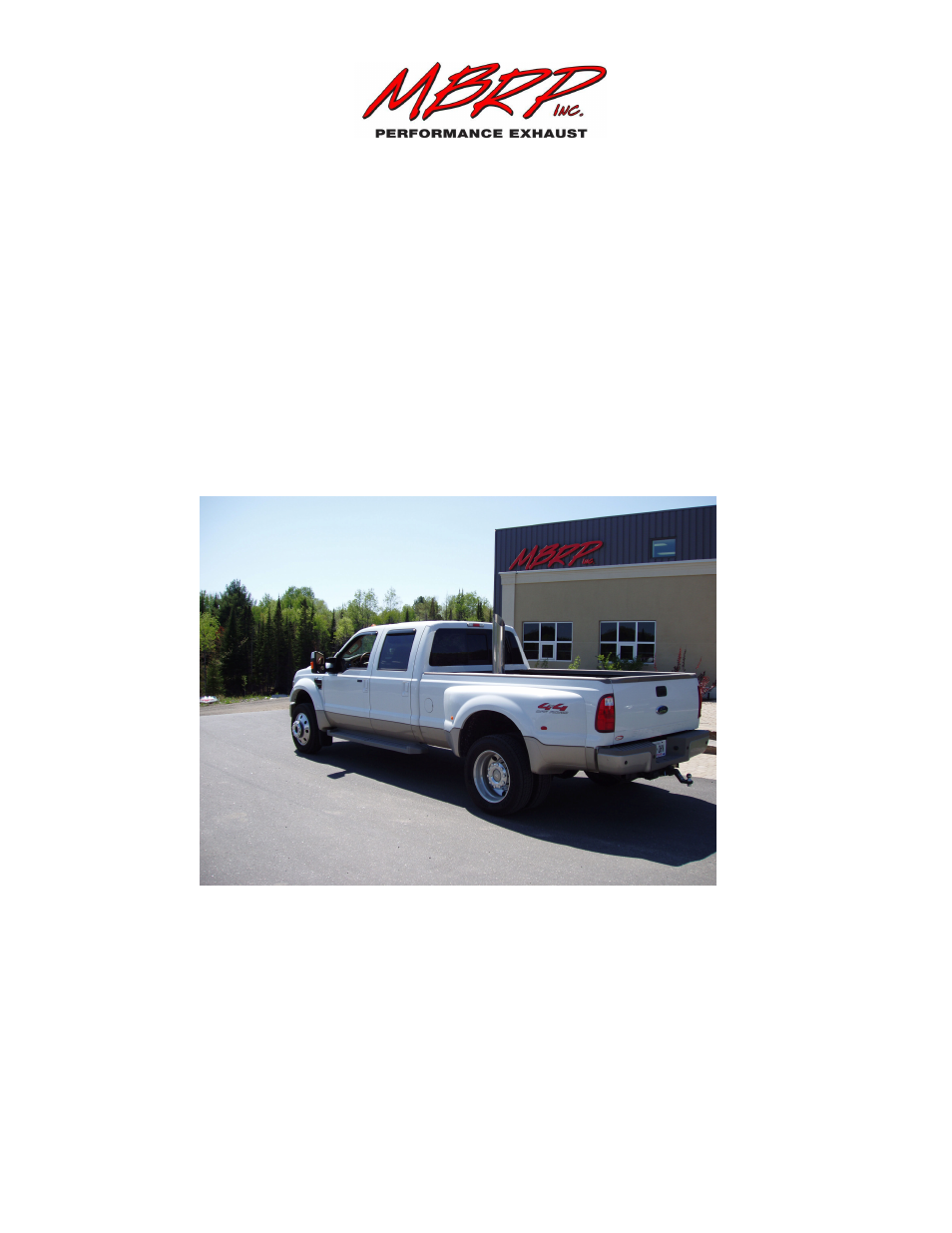

Shown with 6” x 36” Stack (B1610)
Congratulations! You are ready to begin experiencing the improved power, sound and driving excitement of your
MBRP Inc.
””””Smokers Smokers Smokers Smokers
TM TM TM TM
”””” .
We are certain that you will enjoy your purchase.
