S8206 © 11/09 PAGE 3 OF 4
4. Loosely attach the Stack Mounting Bracket to the front of the truck
bed using a 3/8” Bolt (included with the Stack Mounting Bracket).
Set the Stack up in the bed and loosely attach it to the Stack
Mounting Bracket. Make sure the Stack is vertical and in the desired
position. Refer to Figure 3.
5. Confirm that the base of the Stack is resting in the same position as in
Step 2. Re-trace and center punch if needed. This is where the 18”
Extension Pipe will pass through the floor. Remove the Stack from
the bed of the truck. Drill the hole using a 5” hole saw. It may be
required to cut part of a bed floor rail away. Refer to Figure 4.
6. Measure from the 18” Extension Pipe slip joint to the Mid Pipe. Mark
and cut the shorter side of the Elbow to the required length so that it
lines up with the Mid Pipe in a place where the Flex Pipe can be
placed between the Mid Pipe and the Elbow. It may be necessary to
cut the Elbow again as cut the Flex Pipe to ensure proper fit. Refer to
Figure 5.
7. Attach the Elbow to the 18” Extension Pipe slip joint and then attach
the Flex Pipe to both the Elbow and the Mid Pipe. Be sure to slide the
required Clamps over the Elbow and Flex Pipe before connecting to
the Mid Pipe. Refer to Figure 6.

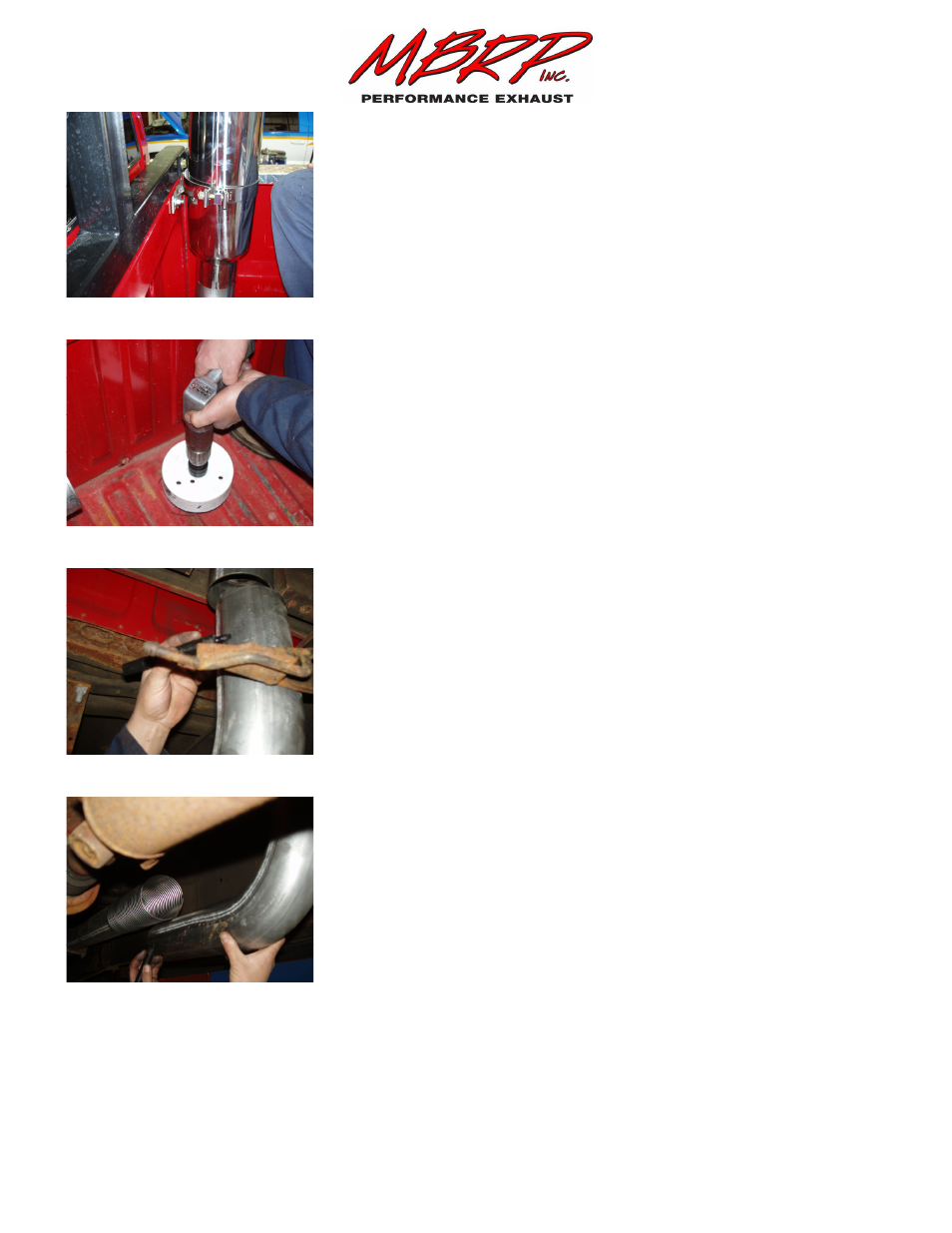

Figure 3
Figure 4
Figure 5
Figure 6
