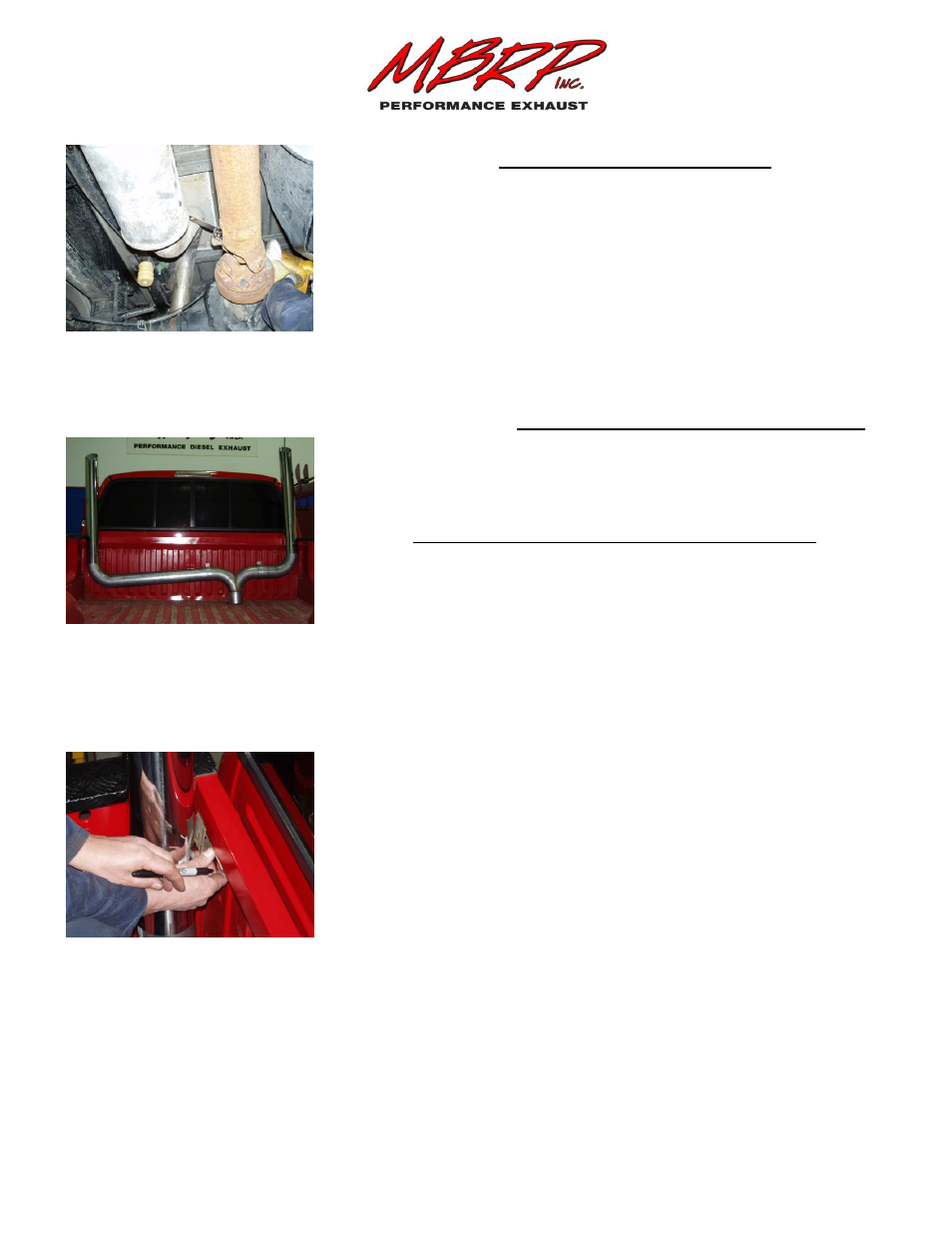

Removal of Stock System:
1.
Apply a penetrating lubricant liberally to all exhaust fasteners, hangers
and rubber insulators.
2.
Loosen the nut on the band clamp located behind the Diesel
Particulate Filter (DPF).
3.
Remove the muffler and tail pipe from the OEM rubber hangers. If a
hoist is being used the system can be removed in one piece by
removing the passenger side bottom shock bolt and swinging the
shock out of the way. Separate the stock exhaust system at the slip
joint located behind the DPF. Remove the muffler and tail pipe from
under the truck. Be sure to re-install the bottom shock bolt. If a
hoist is not being used you will have to cut the tail pipe at the over axle
section, behind the muffler and remove the exhaust in two pieces.
Refer to Figure 1.
Installation of MBRP Inc.
“Smokers™”
:
1.
Loosely assemble the in bed portion of the T-Pipe Assembly (T-Pipe,
13” Elbow and 37” Elbow). Some models may require trimming of the
T-Pipe in order to accommodate the width of the truck bed and the
Stacks that have been purchased. Be sure to place the Band Clamps
over the pieces before they are assembled.
2.
Place the Stacks onto the T-Pipe Assembly and place into the
desired position in the truck bed. The
37” Elbow should be on the
driver side so that the T-Pipe passes through the bed floor towards the
passenger side. Refer to Figure 2.
3.
Place the Stack Mounting Bracket between each Stack and the front
of the truck bed so that the Stacks are properly spaced from the front
of the truck bed. Center the Stack Mounting Brackets on the Stacks
and mark the front of the truck bed in the center of the slotted holes in
the Stack Mounting Brackets. Center punch the marks and drill holes
to accommodate the
3/8” Bolts (included with the Stack Mounting
Brackets). Refer to Figure 3.
4.
Loosely attach the Stack Mounting Brackets to the front of the truck
bed using the
3/8” hardware supplied. Set the Stacks up in the bed
and loosely attach them to the Stack Mounting Brackets. Make sure
the Stacks are in the desired position and the T-Pipe Assembly is
level.
Figure 1
Figure 2
Figure 3
