8. Connect the Driver Side Tail Pipe to the Driver Side Over Axle Pipe. Lift
the Driver Side Tail Pipe into approximate position. See Figure 10. Using
the factory hole located in the frame, found directly above the tail pipe
hanger, attach the Hanger Assembly provided using the 7/16"hardware
provided. See Figure 11. Hang the Driver Side Tail Pipe using the
installed Hanger Assembly.
9. Install the Passenger Side Tail Pipe from the rear of the truck, over the
axle and attach to the lower outlet of the Muffler. Install the tail pipe
hanger into the OEM hanger to complete the passenger’s side.
See Figure 12.
10. Install the provided Clamps around the pipes where needed. Adjust the
Tail Pipes and check along the whole length of the exhaust system to
ensure that there is adequate clearance around the fuel and brake lines or
any wiring. If any interference is detected relocate or adjust.
11. Make sure the complete exhaust is in place before tightening the clamps.
Start at the front of the exhaust system and begin tightening all
connections.
12. Install and adjust the Exhaust Tips to suit. Using a 17mm wrench tighten
the lock bolt located on each Exhaust Tip.
Congratulations! You are ready to begin experiencing the improved power, sound and driving excitement of your MBRP
Inc. performance exhaust system. We know you will enjoy your purchase.

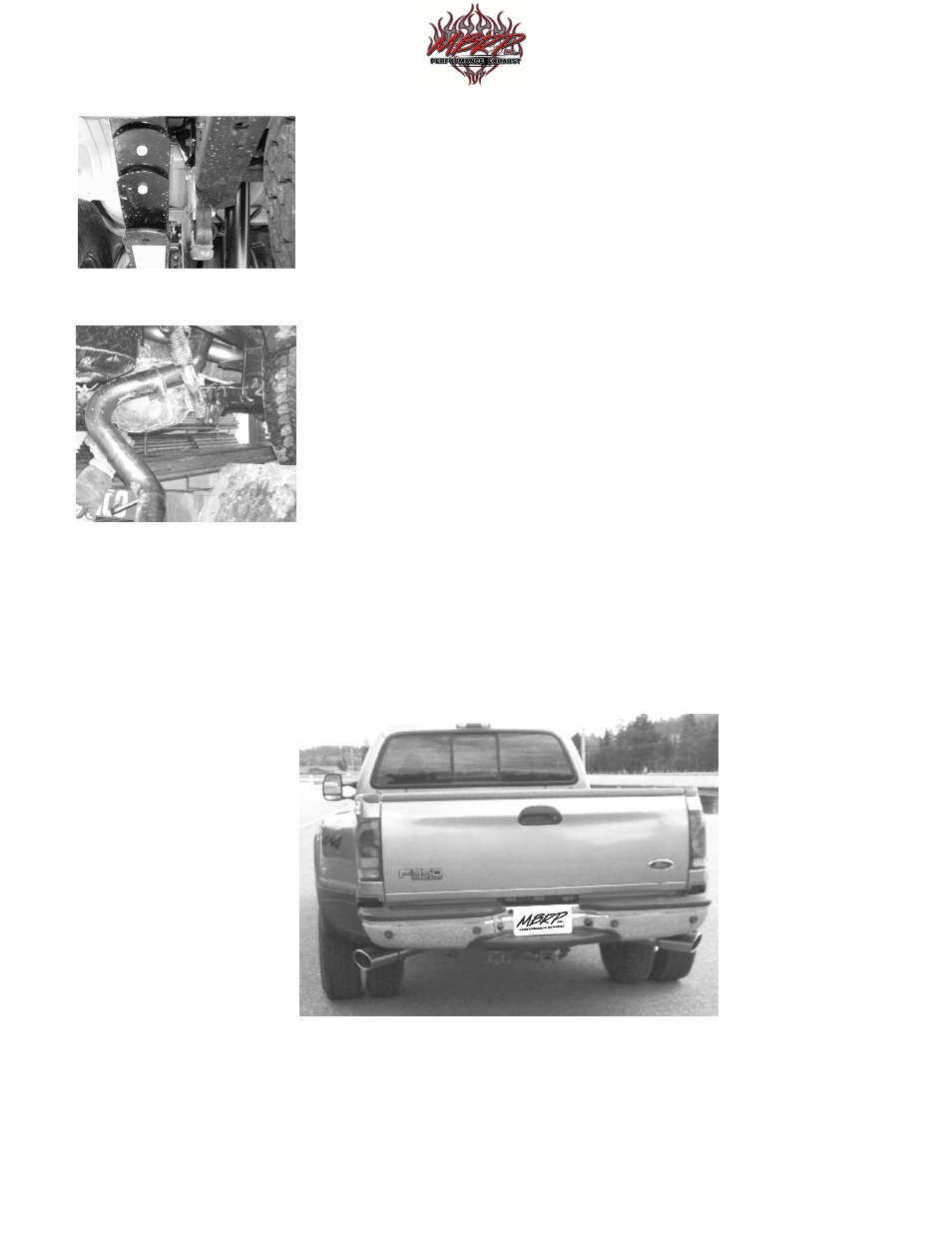

Figure 10
Figure 11
