S6102 © 07/11 PAGE 3 OF 3
3. Install the Muffler onto the Extension Pipe and into the OEM rubber
hangers above the inlet. Refer to Figure 4.
4. Install the Over Axle Pipe onto the Muffler outlet closest to the drive
shaft. Insert the hanger on the Over Axle Pipe into the OEM rubber
hanger located directly above the Muffler outlet.
5. Install the Driver Side Tail Pipe by feeding it around the outside of the
shock and connecting it to the Over Axle Pipe. Refer to Figure 6.
6. Using the factory hole located in the frame, found directly above the Tail
Pipe hanger, attach the Rubber Hanger provided using the supplied
hardware. Hang the Tail Pipe using the installed Rubber Hanger.
7. Install the Passenger Side Tail Pipe onto the remaining Muffler outlet.
8. Using the factory hole located in the frame, found directly above the Tail
Pipe hanger, attach the Rubber Hanger provided using the supplied
hardware. Hang the Tail Pipe using the installed Rubber Hanger.
Refer to Figure 7.
9. Install and adjust Exhaust Tips to suit. Use a 17mm wrench to tighten
the lock bolt located on each Exhaust Tip.
10. Install the provided Clamps around the pipes where required. Check
along the whole length of the exhaust system to ensure there is adequate
clearance around the fuel and brake lines or any wiring. If any
interference is detected, relocate or adjust. Tightening all connections.
Congratulations! You are ready to begin experiencing the improved
performance and driving pleasure of your MBRP Inc. performance exhaust
system. We know you will enjoy your purchase.

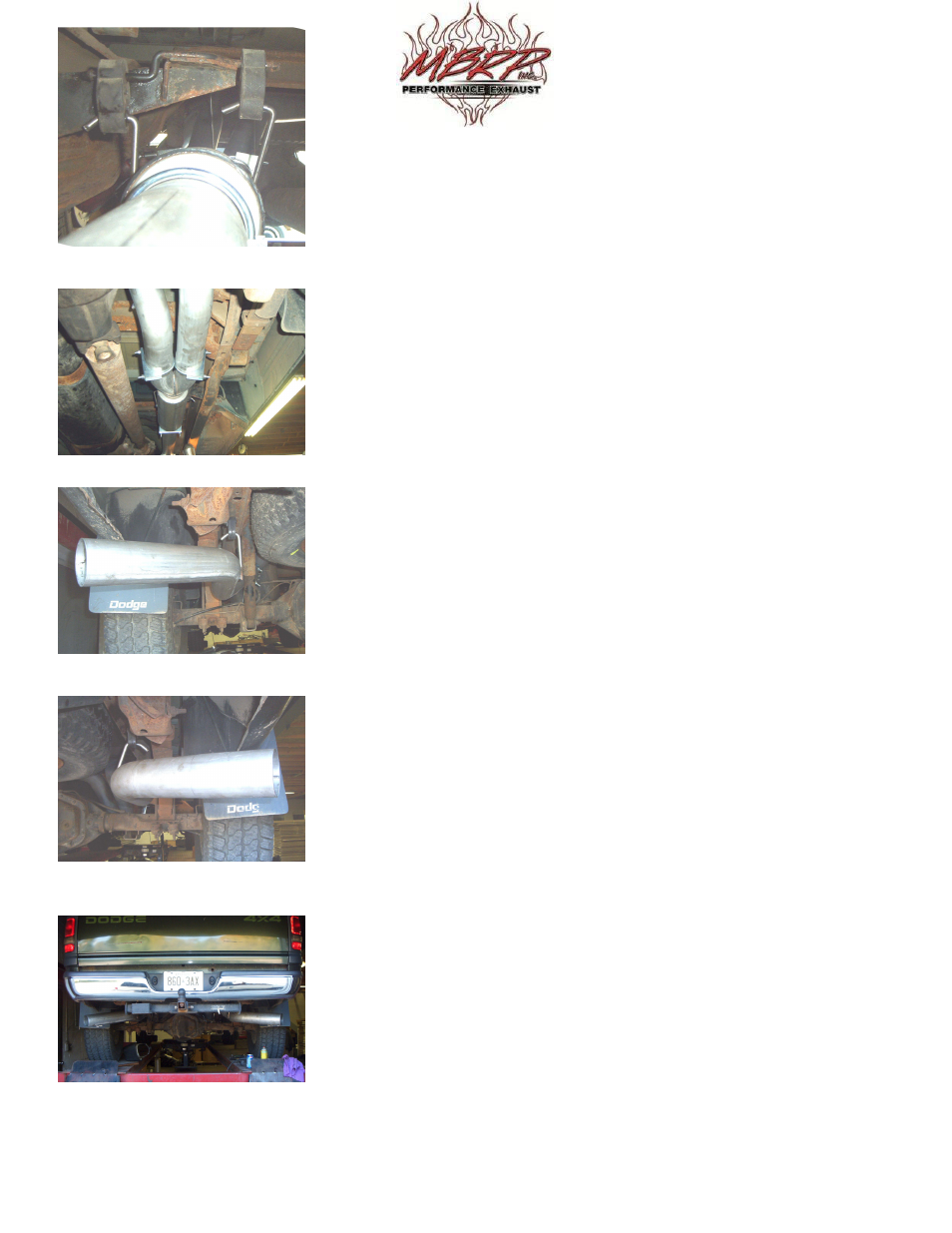

Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
