MBRP S6210 User Manual

Page 3

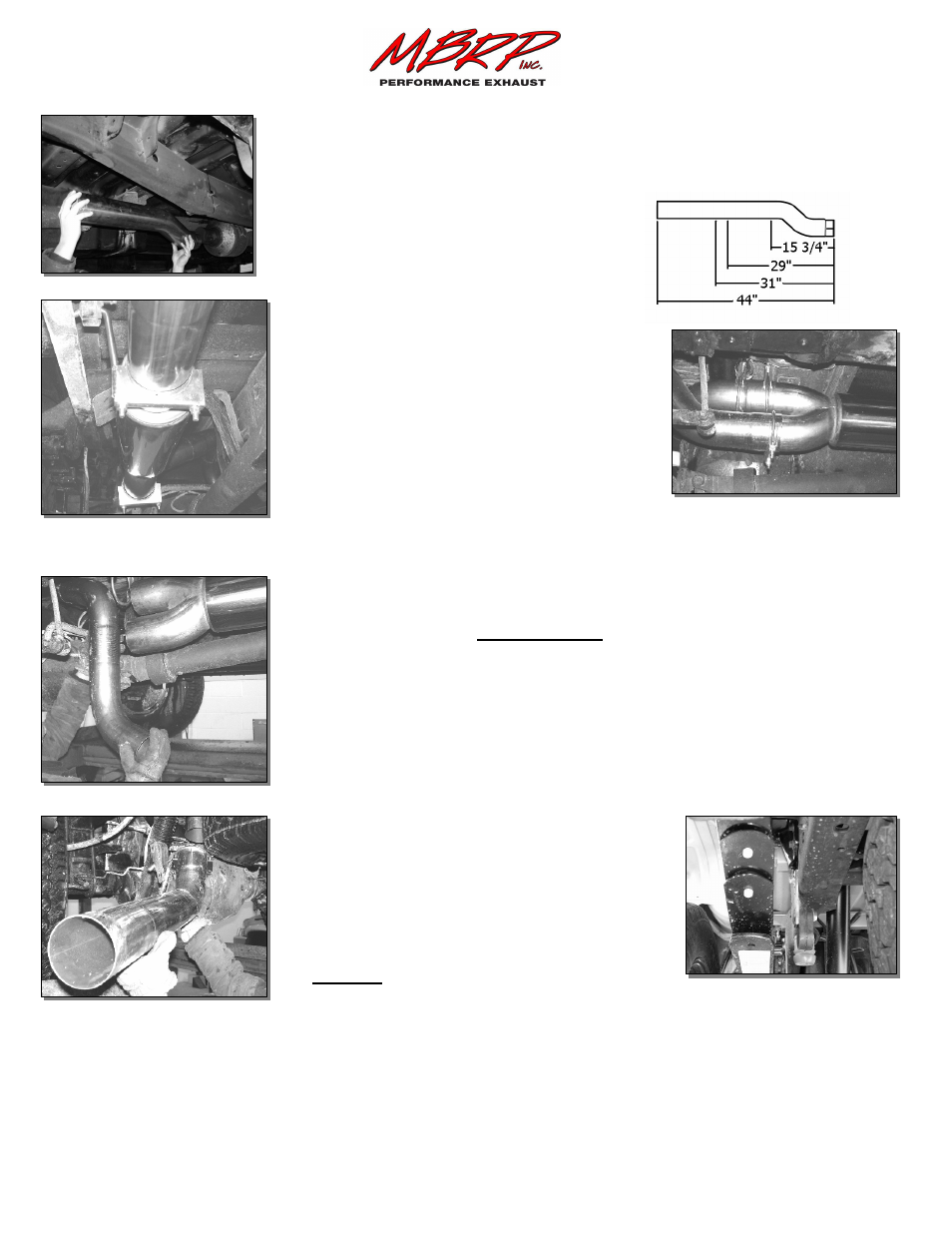

Install the Extension Pipe over the catalytic converter. See Figure 7.

The Extension Pipe provided is pre-cut for the crew cab long bed

configuration. All other configurations will require this pipe to be cut.

Extended cab short bed cut to 15 3/4"

Crew cab short bed cut to 29"

Extended cab long bed cut to 31"

Figure 7

5. Install the Muffler over the Extension

Pipe. Install the Hanger Clamp at the

connection between the Muffler and the

Extension Pipe.

See Figure 8.

6. Position the Muffler outlets vertically.

See Figure 9.

Figure 9

Figure 8

7. Install the Over Axle Pipe connecting the slip joint to the top outlet of the

dual outlet Muffler. Do not tighten to allow for adjustment.

See Figure 10.

8. Install the “T” Hanger Clamp into the two OEM rubber hangers located

above the outlets of the Muffler. The “T” Hanger Clamp provided is

used at this location to support the exhaust. It is positioned around the

Over Axle Pipe and is not used as a sealing clamp.

Figure 10

9. Connect the Driver’s Side Tail Pipe to the

Over Axle Pipe. Lift the Tail Pipe into

approximate position. See Figure 11.

Using the factory hole located in the

frame, found directly above the tail pipe

hanger, attach the Rubber Hanger

provided using the 7/16" nut & bolt

supplied. See Figure 12. Hang the Tail

Pipe using the installed Rubber Hanger.

Figure 12

Figure 11

S6210 © 12/05

Page 3 of 4
