STEREO GOLD ADDENDUM

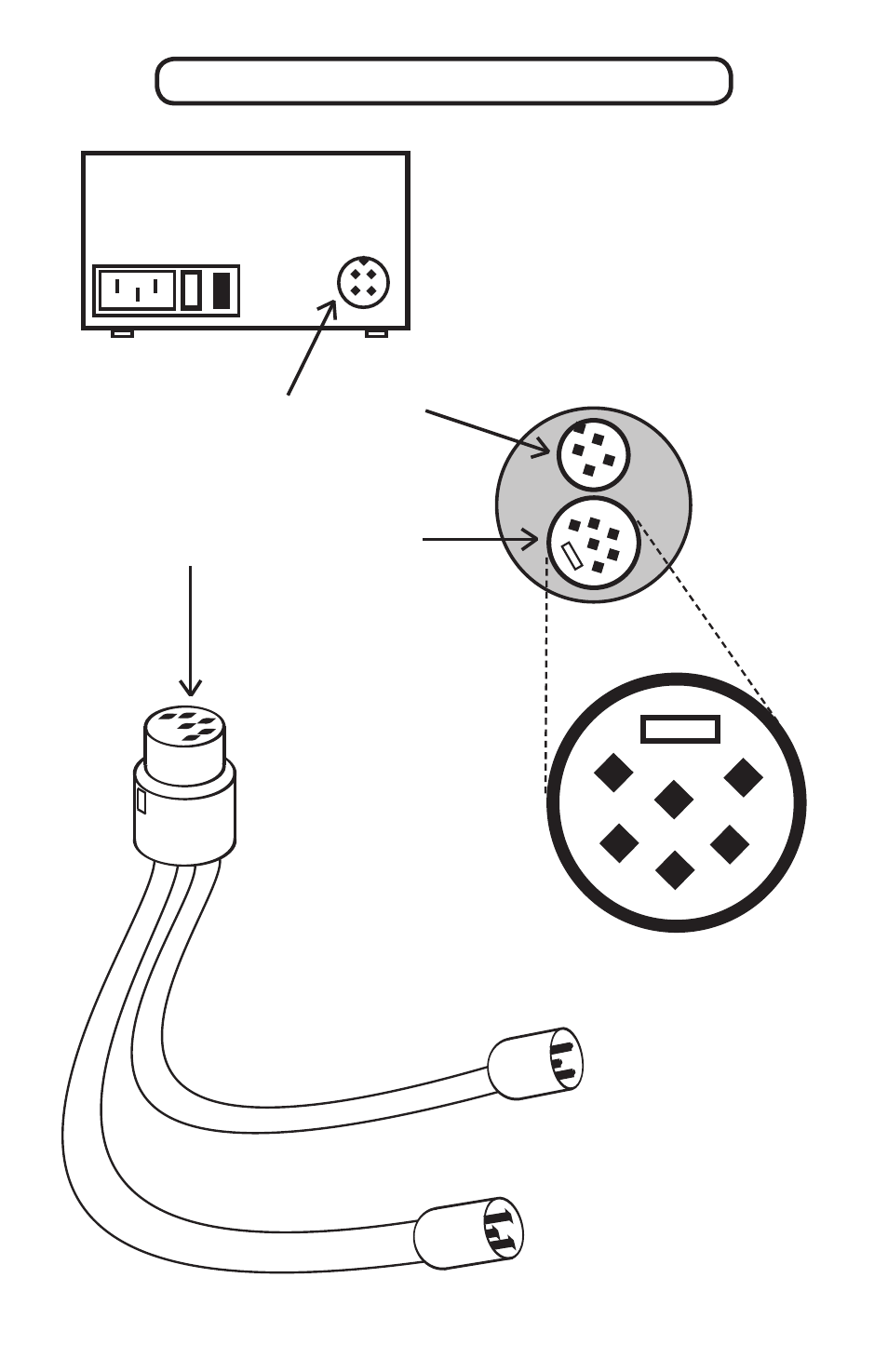

4-pin power connector
Power Supply: Instead of a six-pin
power/audio connector, the Stereo
Gold mic’s PSU holds merely a 4-pin
power connector. When connecting
the included cable, ensure each of the
pins are oriented correctly. (The cable
should screw on easily if the tab is
lined up within the connector.)
MIC BASE
6-pin audio connector
PSU
INCLUDED Y-CABLE
XLR Male connectors
(out to micpreamps)
1
2
6
5
4
3
Pin Out:
1. “Rotate” capsule Pin 2 (+)
2. “Rotate” capsule Pin 3 (-)
3. (GROUND)
4. “Fixed” capsule Pin 3 (-)
5. “Fixed” capsule Pin 2 (+)
6. (GROUND)
FIXED
ROTATE
