IMPORTANT: For personal safety and proper operation, the dryer must be grounded.
Provisions are made for ground connection in each dryer at the electrical service connection area.
4. ELECTRICAL CONNECTIONS
NOTE: A wire diagram is located in the front electrical control box for connection data.
a. Single phase (1Ø) wiring connections (hookup).
1. Gas model only

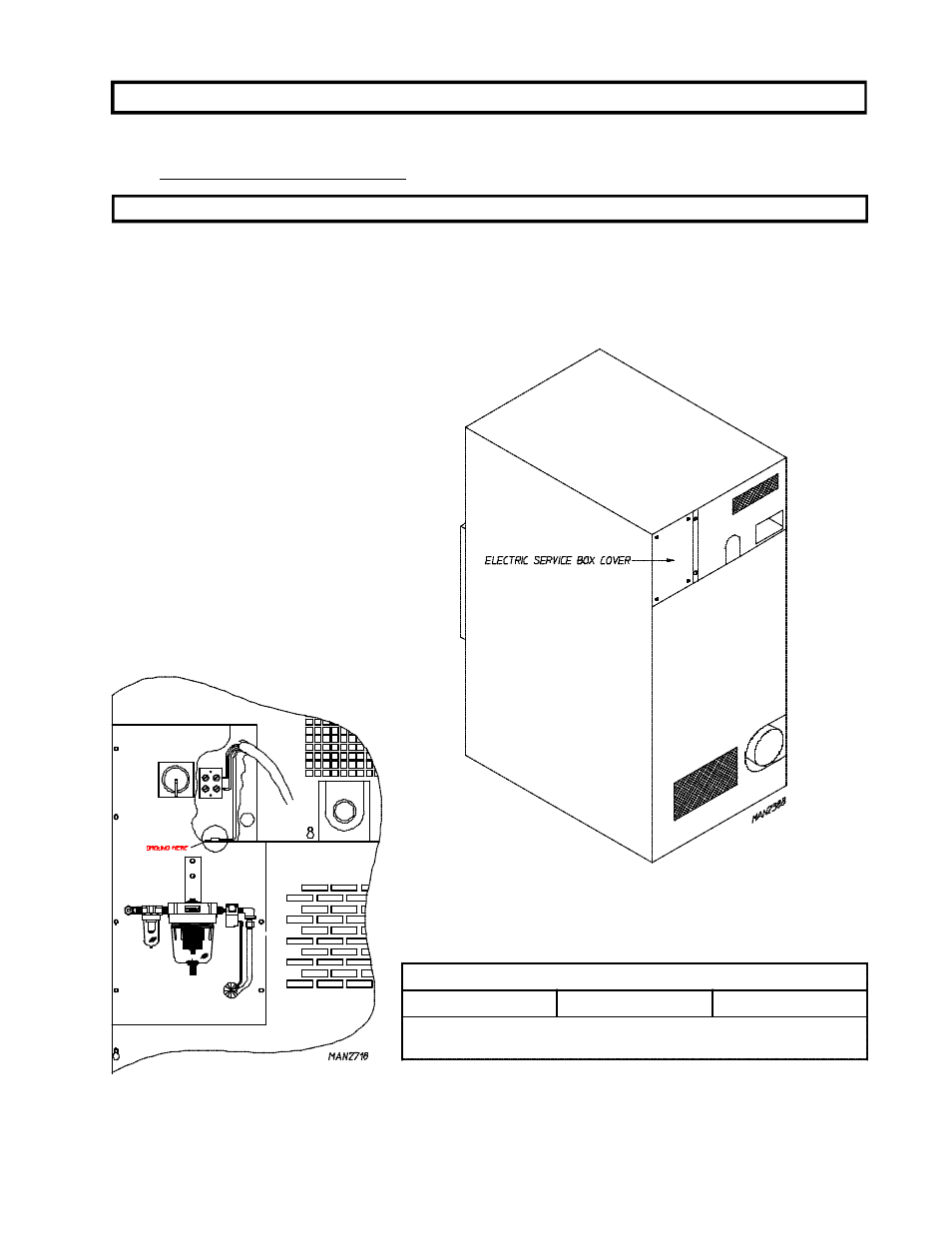

The electrical connections on ALL single phase (1Ø) gas dryers are made into the rear service box
located at the upper left area of the dryer.
Single Phase (1Ø) Electrical Leads
Black and Positive White and Neutral Green and Ground
or
L2
If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power cord or
pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service
breaker panel. In both cases, a strain relief must be installed where the wiring enters the dryer.
Actual electrical wire connections are made to the power distribution
block located in the rear service box mentioned above. The ground
connection is also made to the copper tube also provided in this box.
