Expansion Port Mode Select: The setting for external expansion interface module
NOTE:
(*) If select this option, a valid DNS server must be preconfigured under Basic Settings
Networking
button has to be clicked to save all the changes made to the device.
4.2. Video & Audio Setting Page
This page allows user to configure the video and audio related settings.

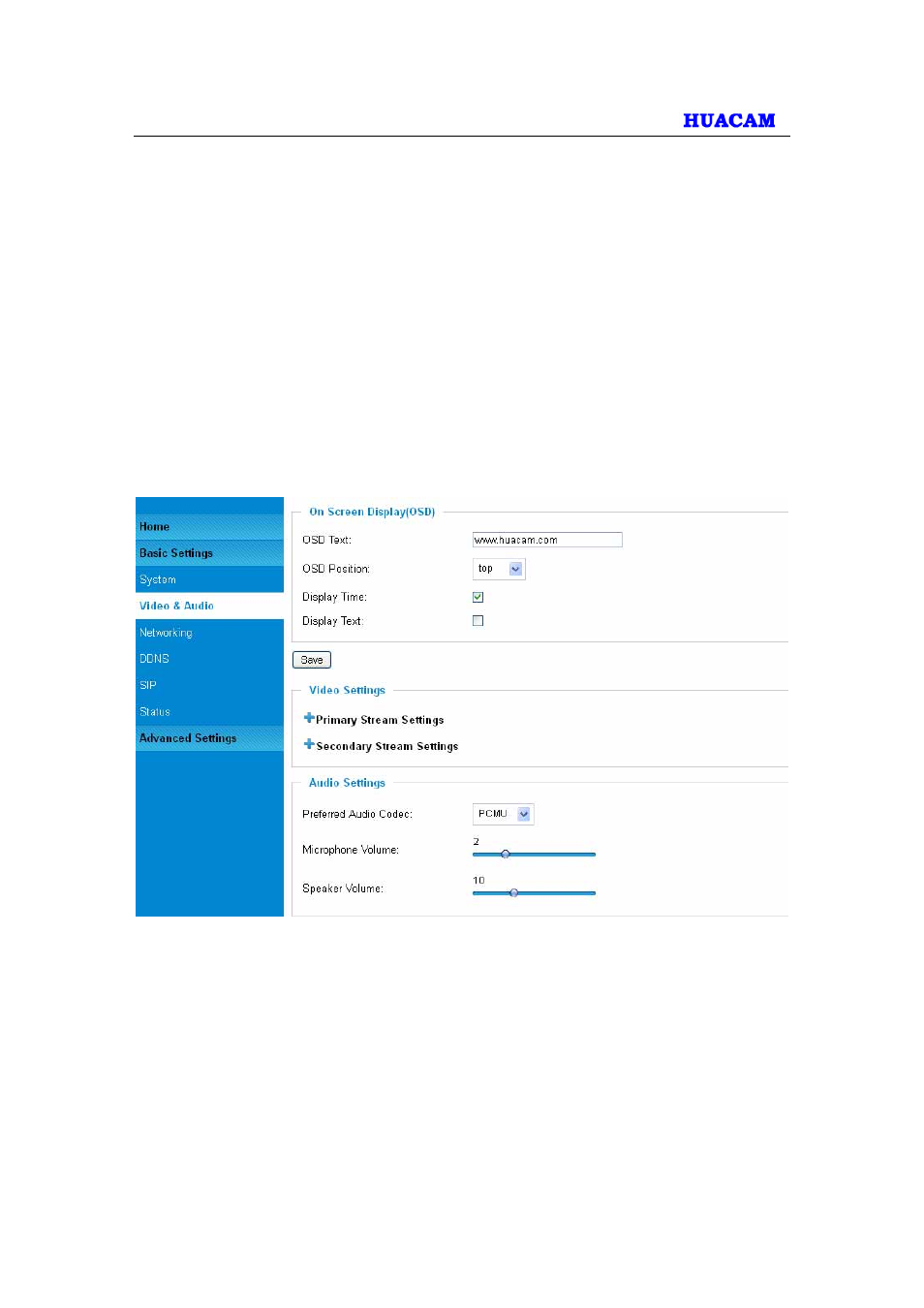

Figure 4-1: Video & Audio Settings Page
On Screen Display (OSD):
Display time stamp and text on the video screen.
• OSD Text:
Inputted text (to identify the camera) shown on the screen.
• OSD Position:
Show the OSD in either top or bottom position on screen.
• Display Time:
When checked, time stamp will display on video screen
• Display Text:
When checked, inputted text will display on video screen.
