BATTERY TEST
AC VOLTS

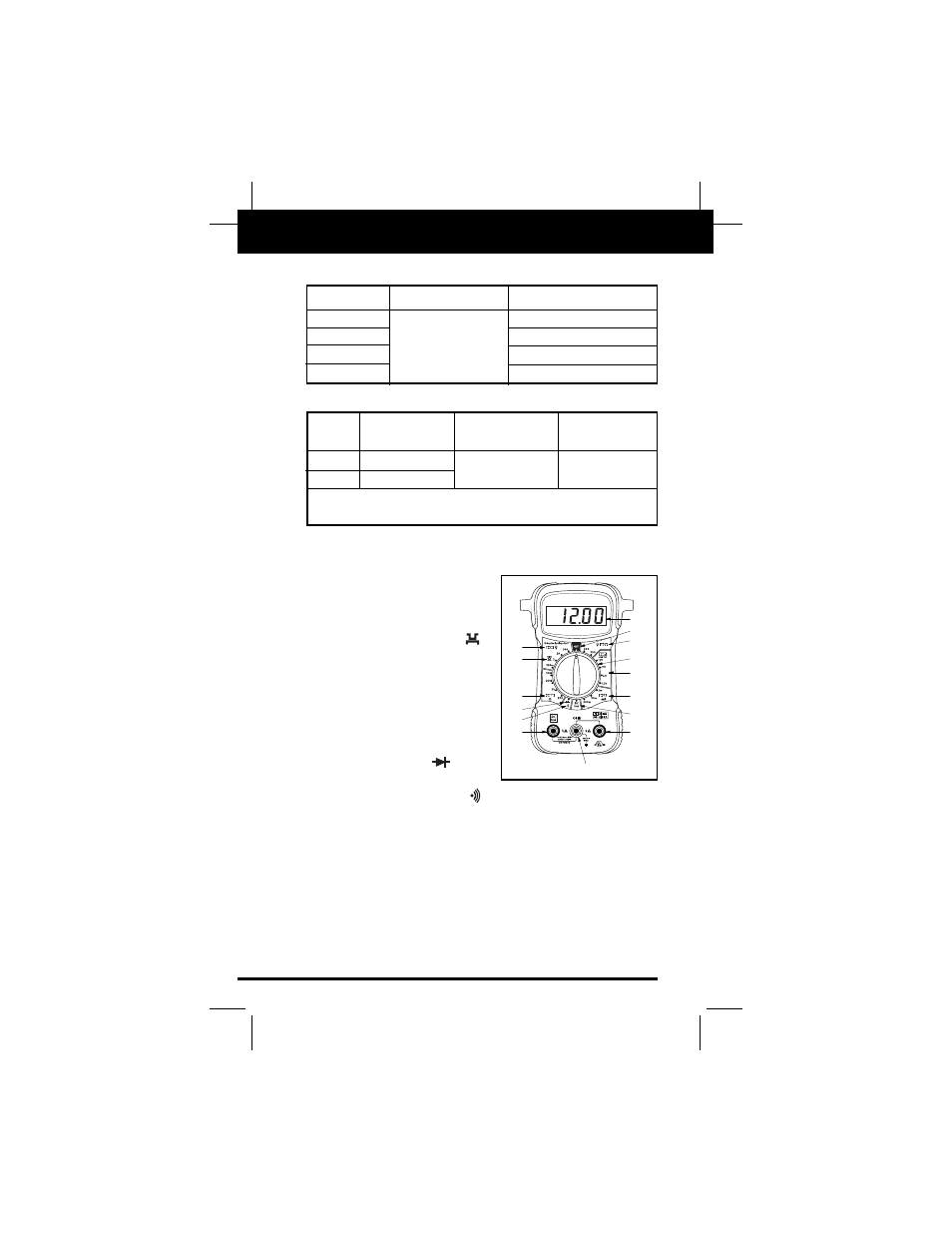

CONTROLS AND INDICATORS
1. DCV Function: Measures
DC volts. Four (4) ranges:
200 millivolts (mV), 2, 20,
and 500 volts.
2. POINTS Function :
Measures voltage drop
across ignition points.
3. OHM (
Ω Ω
) Function:
Measures resistance. Four
(4) ranges: 200, 2k (2000),
200k (200,000) and 20M
(20,000,000) ohms.
4. DIODE Function : For
testing diodes.
5. CONTINUITY Function : Tests for continuity between
two points.
6. 10A Input Jack.
7. COM Input Jack: Common Input Jack.
8. Volts, mA, OHMS, BAT, DIODE and CONTINUITY Input
Jack.
9. DCA Function: Measures direct current. One (1) range:
10AMPS DC from 0 to 10 amperes.
10. mA Function. Measures current in milliamps. Three
ranges: 2, 20 and 200 milliamps.
5
E
Range Resolution DC Current Load
1.5V 10mA
6V
0.01V
100mA
9V 10mA
12V 100mA
Overload
Range Resolution Accuracy Protection
200V 100mV ±(1.2% of reading 500V DC or AC
500V 1V + 10 digits) 500V RMS
Input Impedance: Approximately 5M Ω
Frequency: 40-400Hz
CATII 600V 315mA FUSED
1
3
4
5
6 8
9
10
11
12
13
14
15
7
2
