5. With a growing list of carriers, meaningful carrier names
help to identify the settings: Example 20W_869_896
indicates: power of the signals is 20W, and the frequen-
cies used are 869 MHz and 896MHz.
6. Every entry or change needs to be confirmed by pushing
the “Enter” button. Once entries are complete, return to
the, “Carrier List” by pushing the green Return button.

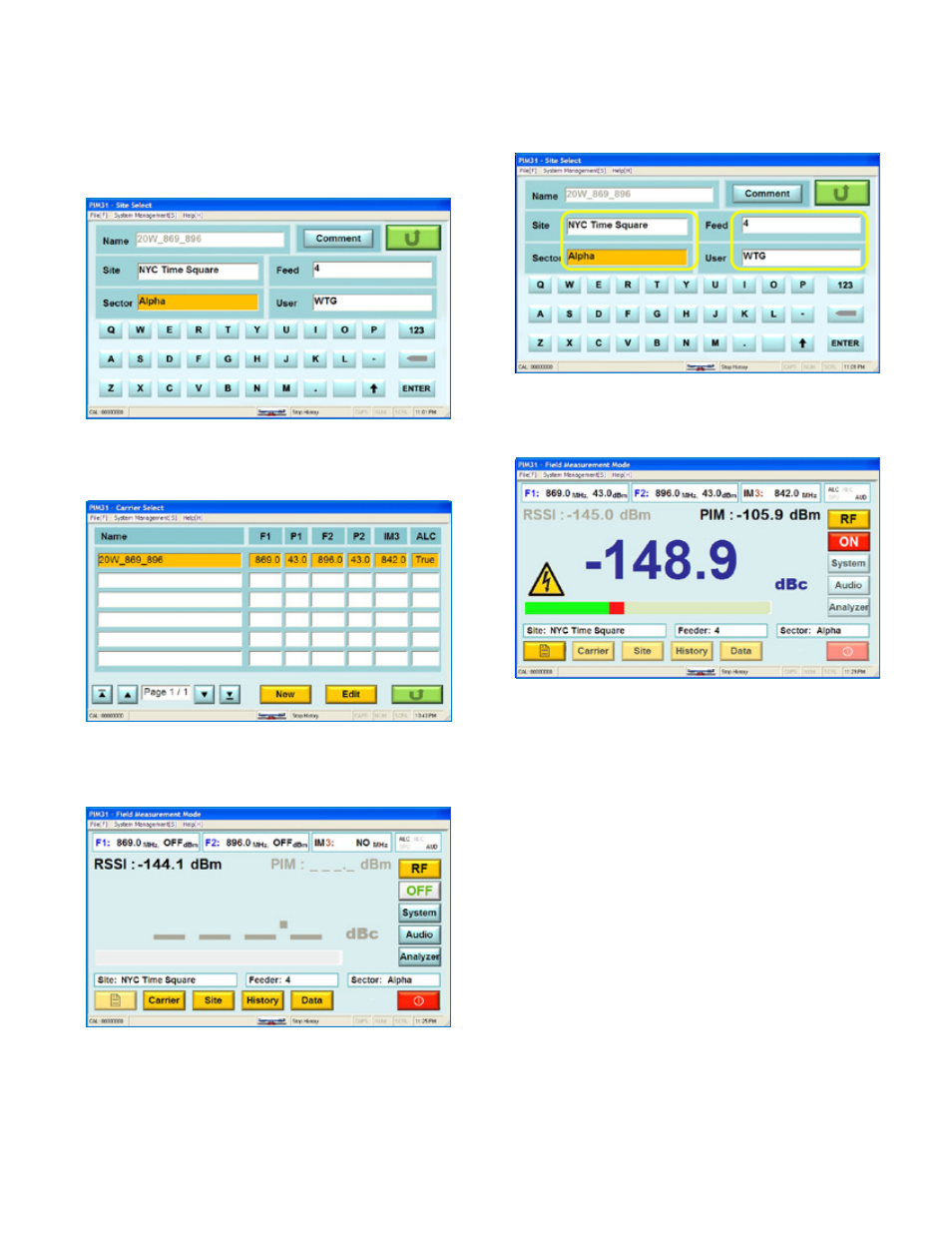

7. Now enter detailed base station or measurement setup
information. Once completed, return to the initial Field
Mode Screen.
8. The selected Site (Test) information is now visible in the
appropriate fields and the RF Button is now active.
9. By pressing the RF Button, the system initializes, and
starts measuring PIM.
10. A second push of the RF button stops measurements and
transmission of RF signal carriers. The last PIM reading is
held and shown in grey.
11. If satisfied with the results using the provided test cable
and load, the unit may now be used for actual testing.
Verify that RF is OFF and disconnect the test cable and
load.
12. Now connect the end terminal of the system under test
to the RF Port of the PIM 31 and start PIM measurements
from the real system.
