input field.

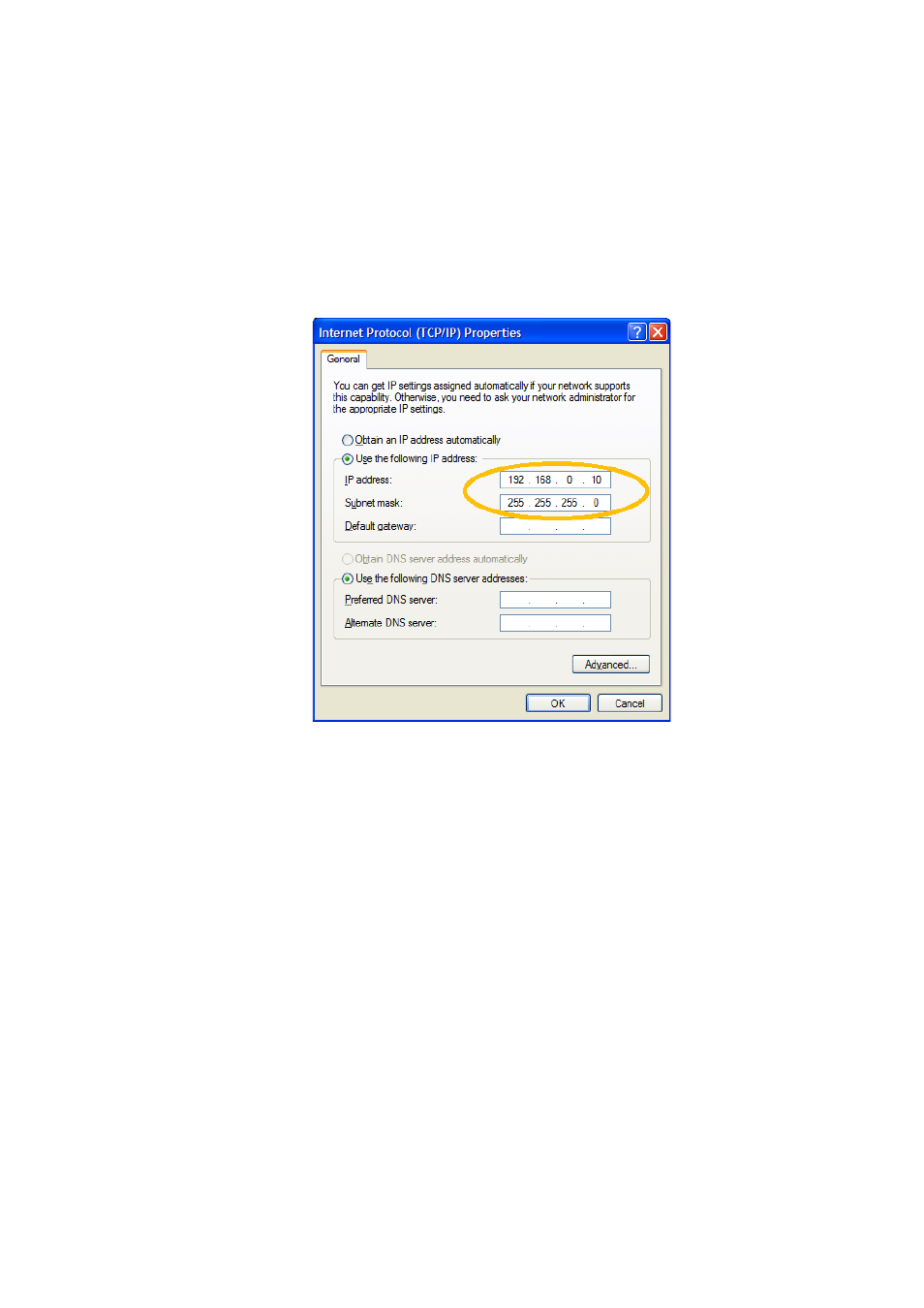

Check “Use the following IP address”
Enter IP Address:
192.168.0.10 (for example)
(The last number can be any number between 0 and 254 but should be higher
than that of the PC’s IP address)
Subnet Mask: 255.255.255.0
Press OK button when done
1.1.4 Connecting PIM31 and PC.
Connect the PIM31 unit to a PC with a regular LAN cable (not crossed type).
1.1.5 Setting IP Address of PC
Go to “Control Panel”, find & open the “Network Connections” icon.
Right click the “Local Area Connection” and open the properties window.
Select the “Internet Protocol (TCP/IP)” from the list and enter the IP address in
input field.
1. Enter IP Address: 192.168.0.1 (for example)
(the last number should be lower than the same of PIM31 IP address)
2. Enter Subnet Mask: 255.255.255.0
3. Gateway: (Leave it as blank because it does not affect the operation)
