Ashland I-180 Narrow Rear - Manual (Page 17)

17 17

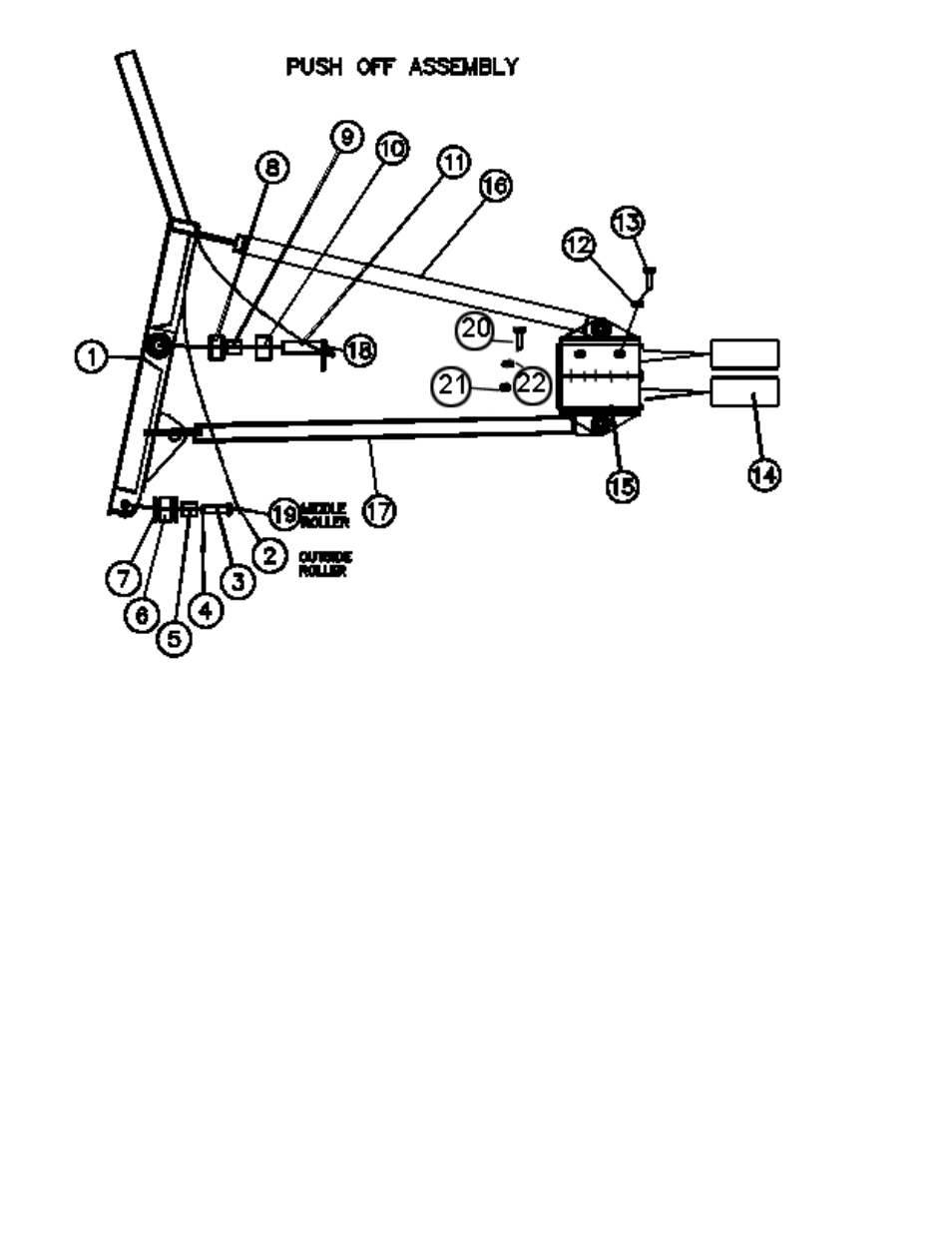

ITEM QTY PART NUMBER DESCRIPTION
1 1 A123323 Push Gate Assembly
2 2 A125023 Grease line, outside floor roller 48"
3 3 A123323-21 Pin: 1-1/4" x 4-1/8" long
4 3 AFP-0001 Cotter Pin: 1/4" x 3 1/2"
5 3 A10163 Bushing: 1-3/4" O.D. x 1-1/4" I.D.
6 3 A10164 Roller
7 6 AFW-00015 Washer
8 2 A123323-24 Roller
9 2 A123323-24B Bushing: 2-1/2" O.D. x2" I.D.
10 2 A123323-09 Spacer
11 2 A123323-23 Pin: 2" x 4-1/8" long
12 12 AFN-00023 JamNut: 3/4" NF
13 12 AFB-00060 Bolt: 3/4" NF x 2" long
14 4 A123364-08 Plastic slide
15 1 A123364 Slide Guide Box
16 2 A123323-36 Top Support
17 2 A123323-35 Bottom Support
18 2 A125022 Grease line, hold down roller 18"
19 1 A125023 Grease line, middle floor roller 96"
20 8 6684 5/8 x 2 NC gr. 8 Bolts
21 8 7530 5/8 NC gr. 8 Nuts
22 8 8110 5/8 Lock Washer
