I-180TS2

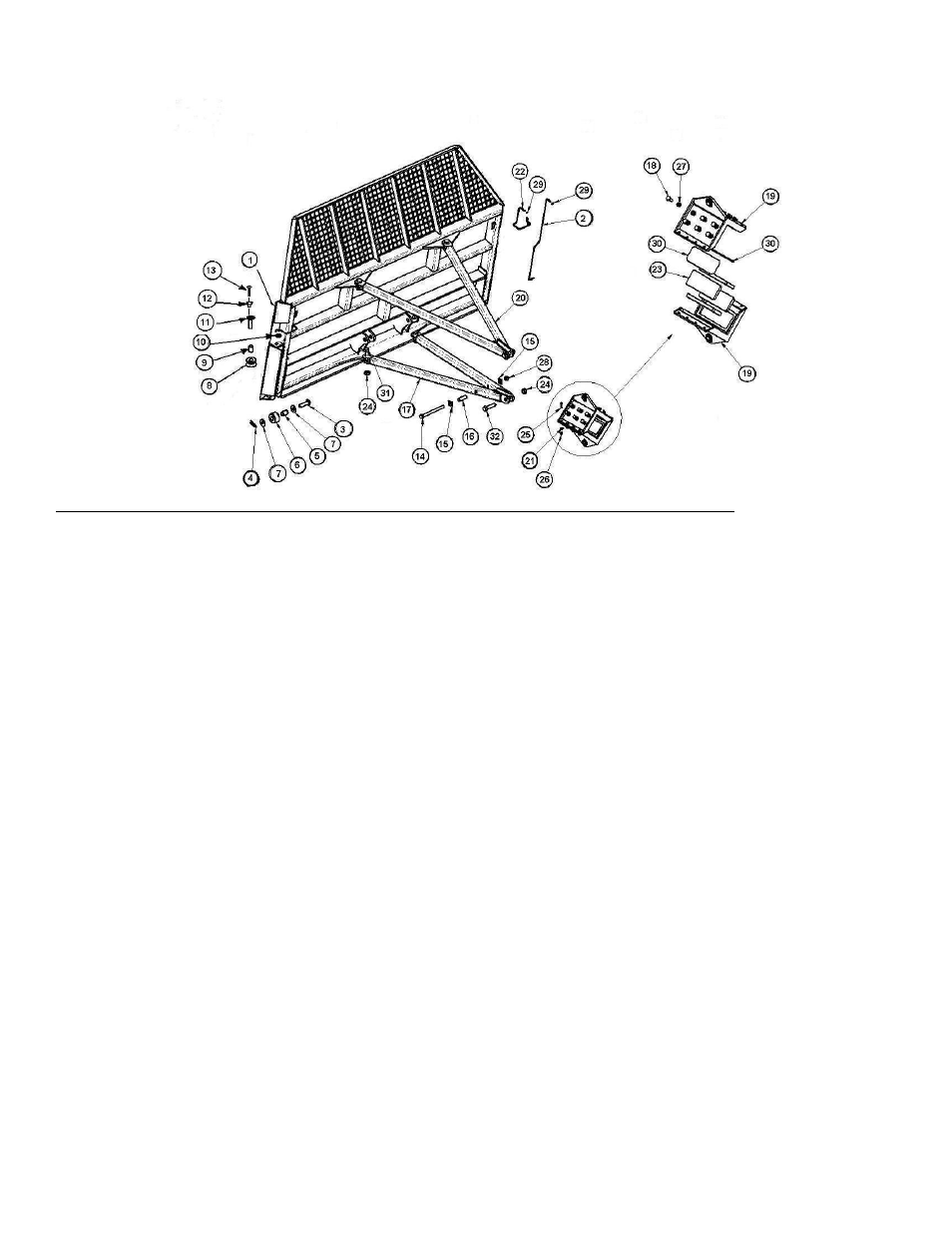

Pushoff Assembly
Key Number Part Number Description
1 A123323 Pushoff Assembly
2 A125023 Grease line, Outside floor roller 48"
3 A123323-21 Pin: 1-1/4” x 4-1/8” long
4 AFP-00001 Cotter Pin: 1/4" x 3"
5 A10163 Bushing: 1-3/4” O.D. x 1-1/4” I.D.
6 A10164 Roller
7 AFW-00015 Washer
8 A123323-24 Roller
9 A123323-24B Bushing: 2 ID X 2.5 OD
10 A123323-09 Spacer
11 A123323-23 Pin: Upper Roller 2 x 7 7/8
12 A123358 Pin Keeper
13 AFB-00079 Bolt: 5/8" x 1 1/2"
14 AFB-00103 1 x 12 Bolt
15 AFW-00019 Wedge Washer
16 A123323-48 Wedge Spacer
17 A123323-35 Bottom Support
18 AFB-00060 Bolt: 3/4” NF x 2” long
19 A123364 Slide Guide Box
20 A123323-36 Top Support
21 8110 5/8 Lock Washer
22 A125022 "Grease line, v-roller 18”"
23 A123364-08 Plastic slide
24 AFN-00009 1 1/4 NF Locknut
25 6684 5/8 x 2 NC gr. 8 Bolts
26 7530 5/8 NC gr. 8 Nuts
27 AFN-00023 JamNut: 3/4” NF
28 AFN-00001 NF Nut Lock 1” NF
29 A125026 Bulk Head Nut
30 A123364-3 Shim Plate
31 AFB-00076 Bolt: 1 1/4 NF X 4
32 AFB-00075 Bolt: 1 1/4 NF X 5
