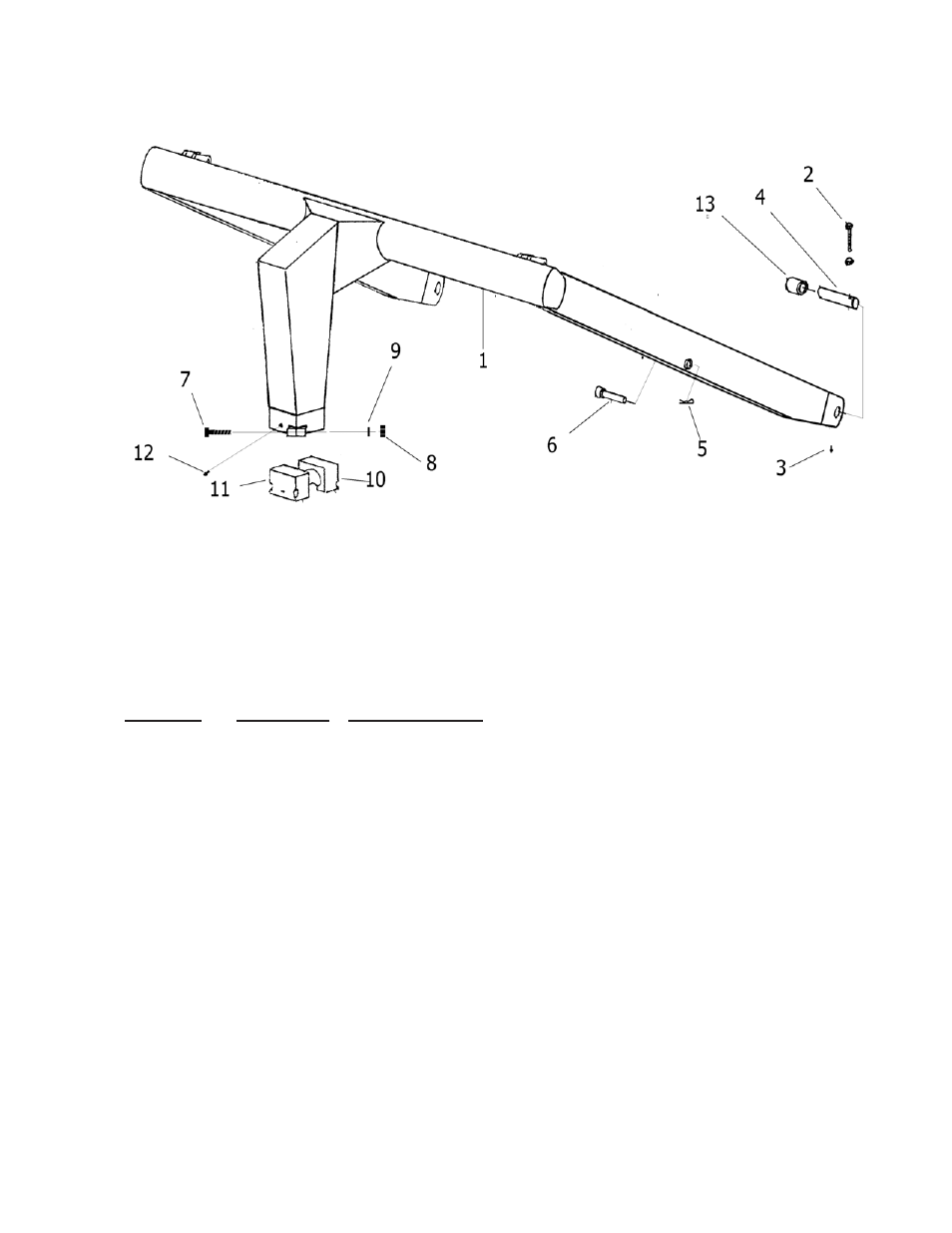

GOOSENECK FRAME ASSEMBLY
PARTS LIST
GOOSENECK FRAME ASSEMBLY
MODEL I-175
KEY NO. PART NO. DESCRIPTION
1. A17507 Gooseneck Frame
2. AFB-00054 Bolt, 1/2” NC x 3-1/2” Lg.
3. 14505 Grease Zerk - Straight
4. A17508 Pin, Frame Attach
5. ----- Hair Pin
6. AFB-00018 Bolt, Transport Lock, 1” NC x 3”
AFN-00012 Nut: 1” NC
7. AFB-00022 Bolt, 7/8”NF x 4-1/2” Lg. Grade 5
8. 7597 Nut, 7/8”NF
9. 8125 Lockwasher 7/8”
10. A14002 Cast Socket Half - Rear
11. A14003 Cast Socket Half - Front w/Zerk Hole
12. A2206 Grease Zerk - Long Shank
13. A17509 Bushing, 2-3/4” OD x 2-1/4” ID x 2” Long
