Ashland I-110 - Manual (Page 9)

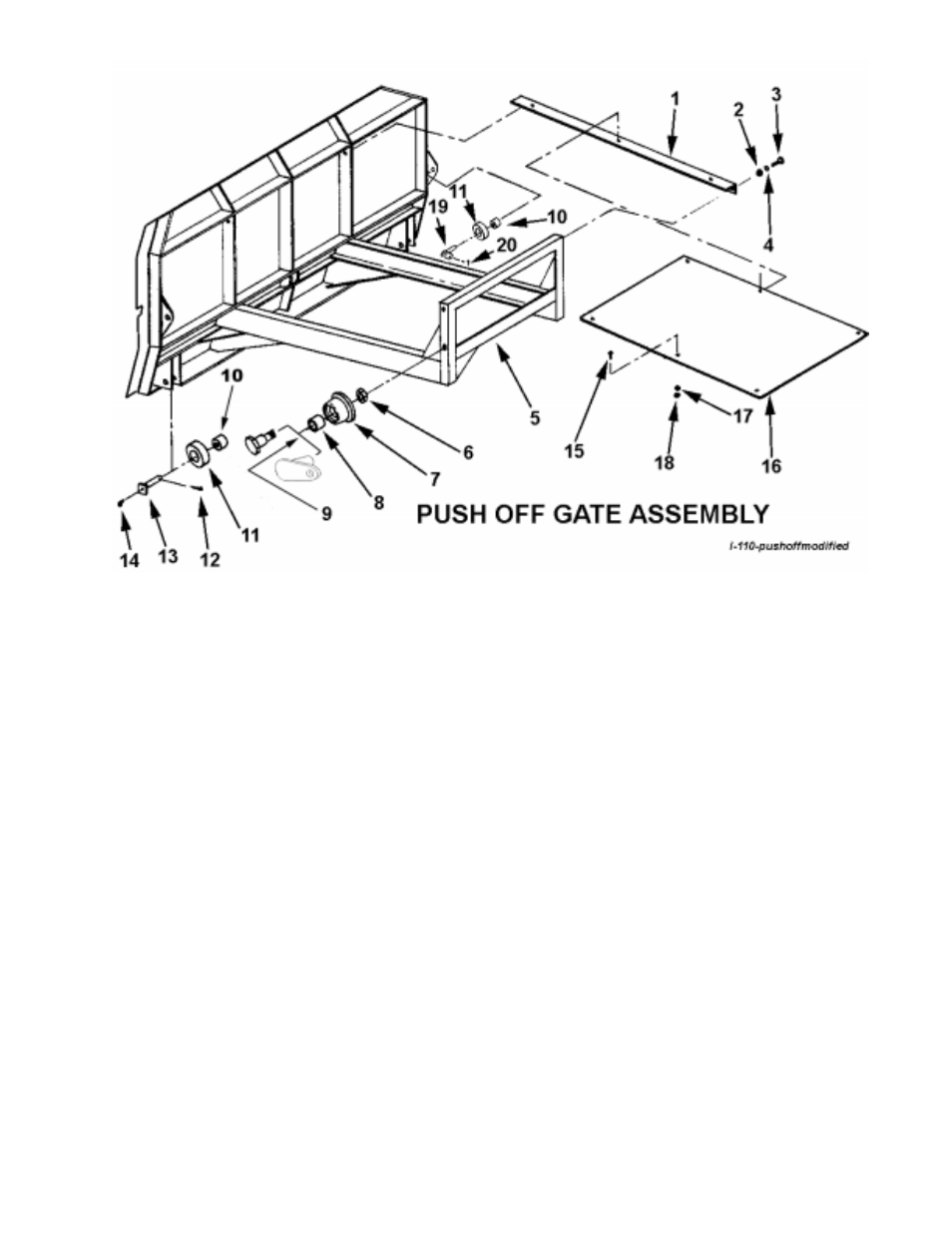

KEY NO. PART NO. DESCRIPTION
1 A10159 Brace, R. H. & L. H. same
2 Nut, 3/4" NC
3 Bolt, 3/4" NC x 1-1/2" lg.
4 Lockwasher, 3/4"
5 A10160 Push off gate
6 Jam nut, 1-1/4" NF
7 A123306 sn 20210 + Gate roller, rear, with A123307 bushing
A10161 upt o sn 20209 Gate roller, rear, with A10162 bushing
8 A123307 sn 20210 + Bushing, 1-5/8” OD x 1-1/4”ID x 1-1/2” lg
A10162 upto sn 20209 Bushing, 2" OD x 1-5/8" ID x 1-7/16"
9 A123305 sn 20210 + Pin, 1-1/4” dia. x 2-3/4” lg. tab head w/zerk
A10008 upto sn 20209 Shoulder pin, 1-5/8" to 1-1/4" w/ zerk in thd. end
10 A10163 Bushing, 1-3/4" OD x 1-1/4" ID x 2-3/8"
11 A10164 Gate roller, front, 4-1/4" OD
12 Cotter pin, 1/4" x 2" lg.
13 A6007A Pin, 1-1/4" x 4-1/8" lg.
14 Grease zerk, 90° x 1/8" NPT
15 Bolt, 1/4" x 1" NC
16 A10171 Dirt shield
17 Nut, 1/4" NC
18 Lockwasher, 1/4"
19 A123288 Pin, 1-1/4" dia. x3-1/4" lg. tab head w/ zerk
20 Bolt, 5/8" x 1-1/4" NC
9
