Ashland I-110 User Manual

Page 18

background image

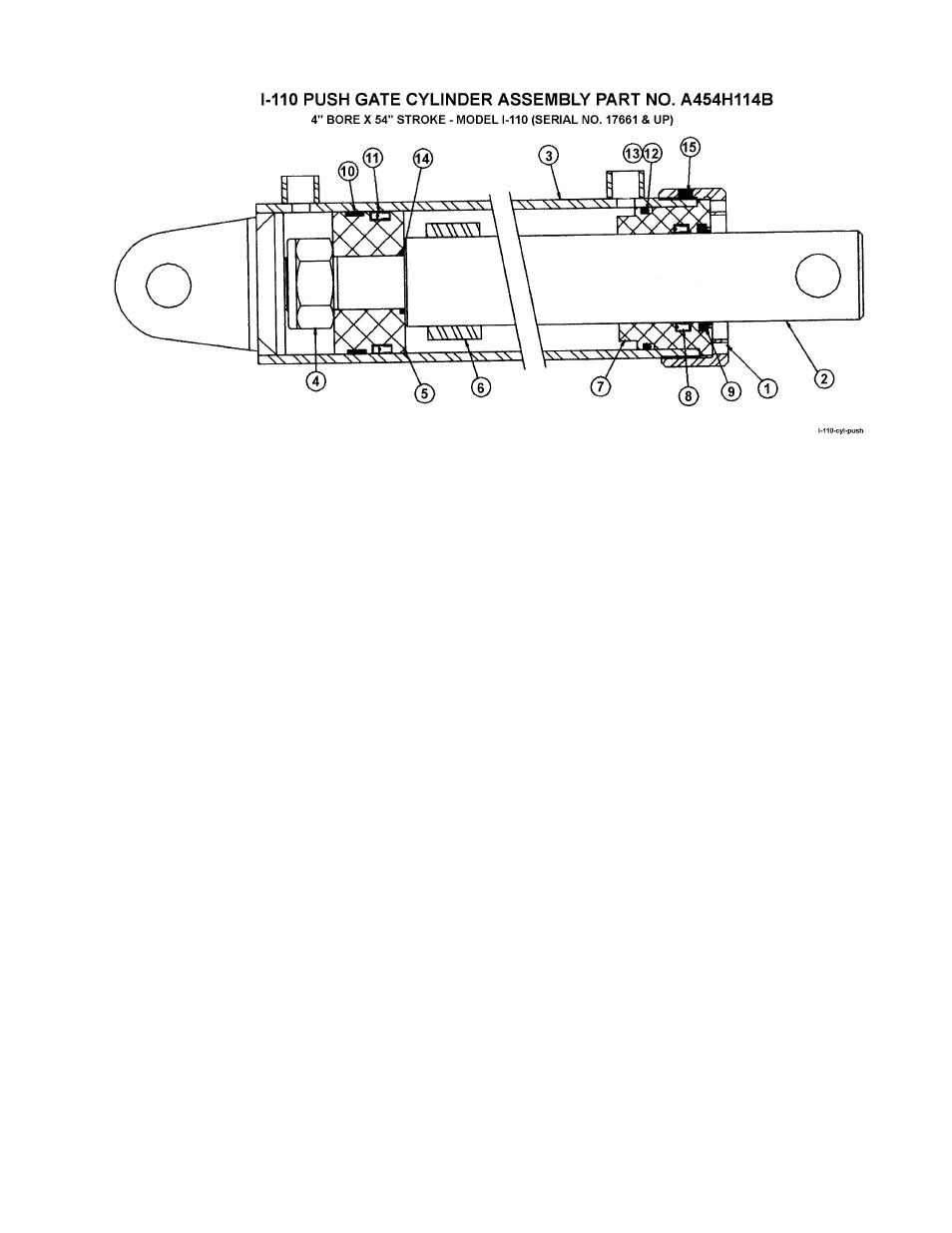

KEY NO. QTY. PART NO. DESCRIPTION
1

1

A101H103

Collar

2

1

A101H98

2 1/2" Rod

3

1

A101H97

Barrel weldment

4

1

Lock nut (1 1/2" - 12)

5

1

A101H96

Piston

6

1

A101H99

Spacer

7

1

A101H102

Head

8

1

A140H07

Rod seal

9

1

A140H08

Rod wiper

10

1

A101H100

Wear ring

11

1

A101H101

Piston seal

12

1

A200H06

O-ring

13

1

A300H05

Backup ring

14

1

A22H15

O-ring

15

1

Nylon tip set screw (3/8" NC x 3/8)

16

1

A101H30A Seal kit (Items 8-14)

18
