Ashland I-80 - Manual (Page 15)

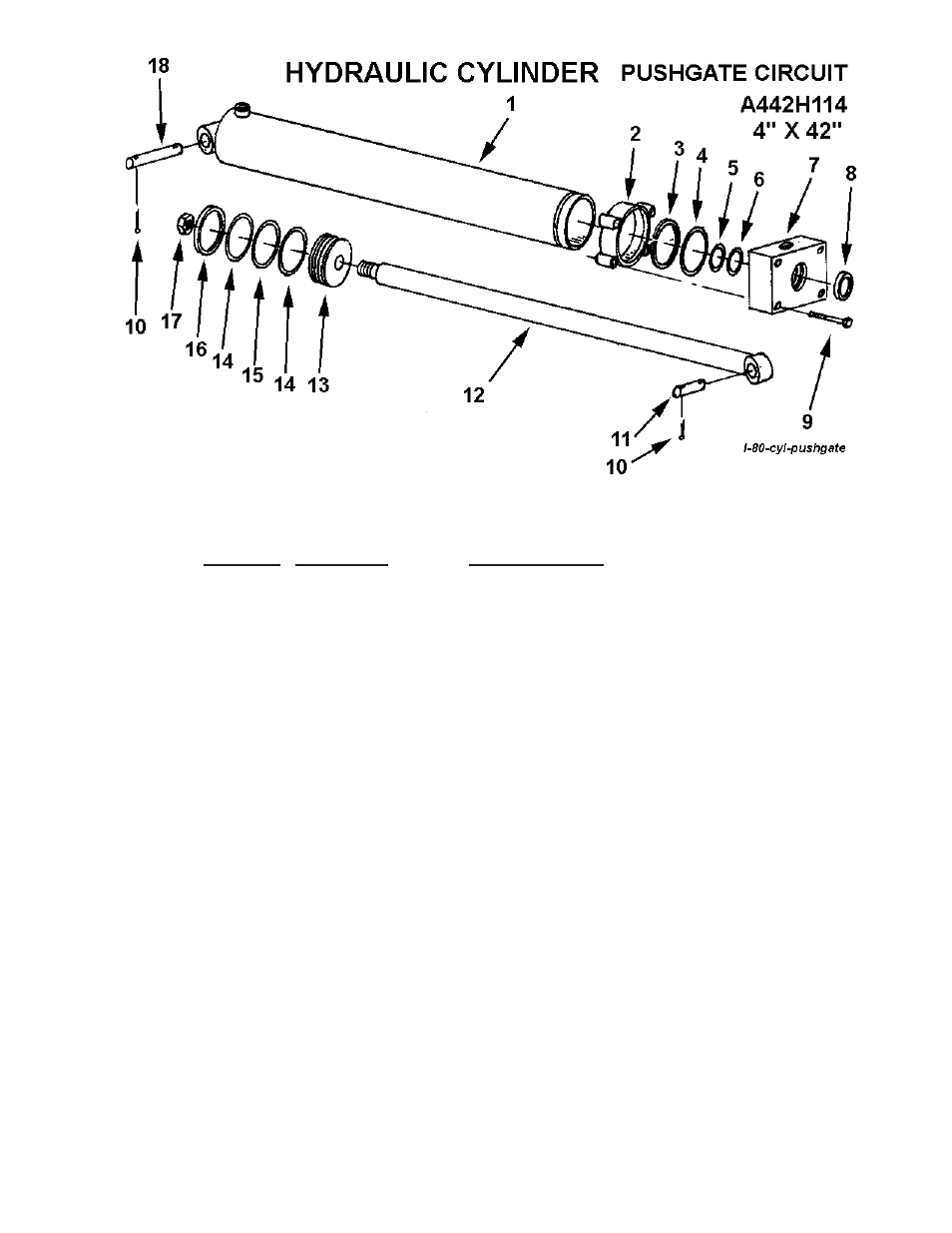

KEY NO. PART NO. DESCRIPTION
1 A80H21 Barrel Assembly
2 A80H22 Clamp ring
3 A80H23 Retainer ring
4 A80H24 O-ring, 4" OD x 1/8"
5 A400H12 O-ring, 2" ID
6 A400H12A Backup washer
7 A80H25 Head gland
8 A80H06 Wiper seal, 2" ID
9 Bolt, 1/2" NF x 4-1/2", Gd 5, w/ nut
10 Cotter pin, 1/4" x 4"
11 A8061 Pin, 1-1/4" x 4"
12 A80H26 Rod Assembly
13 A80H27 Piston
14 A300H05 Backup washer, 4" OD
15 A300H06 O-ring, 4" OD x 3/16"
16 A300H04 Cast iron ring, 4" OD
17 A400H17 Piston nut, 1-1/4" NF
18 A8062 Pin, 1-1/4" x6-1/2"
A80H30 Packing kit containing:
1 - A80H24 2 - A300H05 1 - A400H12
1 - A300H06 1 - A400H12A 1 - A300H04
1 - A80H06
15
