Ashland 80S - Manual (Page 14)

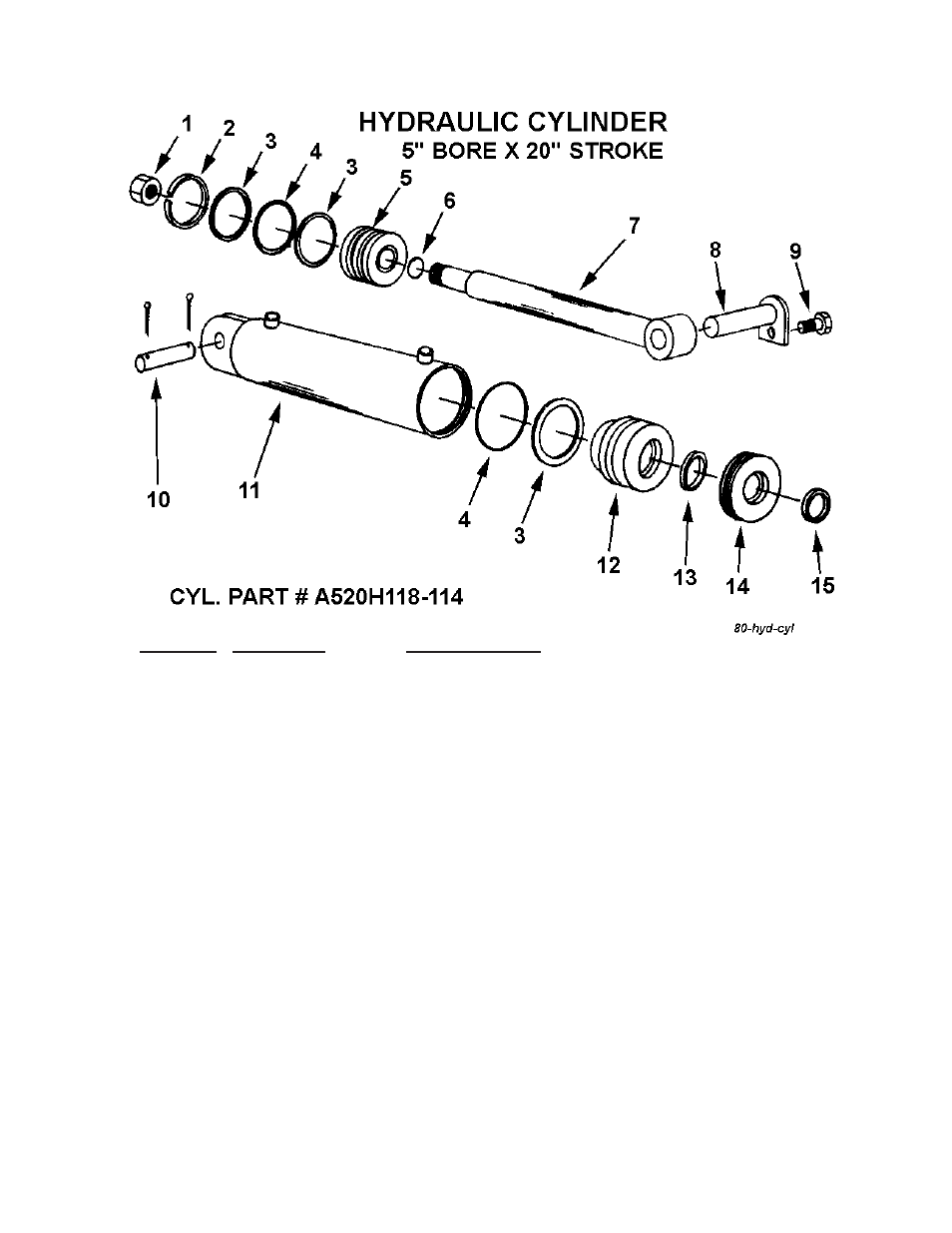

KEY NO. PART NO. DESCRIPTION
1 A400H17 Nut, 1-1/4" NF, lock type
2 A400H04 Cast ring, 5" OD
3 A400H05 Backup washer, 5" OD x 1/4"
4 A400H06 O-ring, 5" OD x 1/4"
5 A80H01 Piston, 5" OD
6 A60H52 O-ring, 1-1/4" ID x 1/16"
7 A80H08A Shaft, 2" dia.
8 A8007A Pin, 1-1/4" x 7-1/2" w/ tab head
9 Capscrew, 5/8" x 1-1/4" w/ lockwasher
10 A45003 Pin, 1-1/8" x 3-1/4"
Cotter pin, 3/16" x 1-1/2"
11 A80H02 Barrel assembly, 5" ID
*12 A80H03 Head gland, 5" OD
13 A80H04 Seal, 2" ID
*14 A80H05 Head cap
15 A80H06 Wiper seal, 2" ID
A80H07 Packing kit containing:
1 - A400H04 1 - A60H52 3 - A400H05
1 - A80H04 2 - A400H06 1 - A80H06
*16 A80H05A One piece Gland and Cap
14
