Ashland 61S - Manual (Page 8)

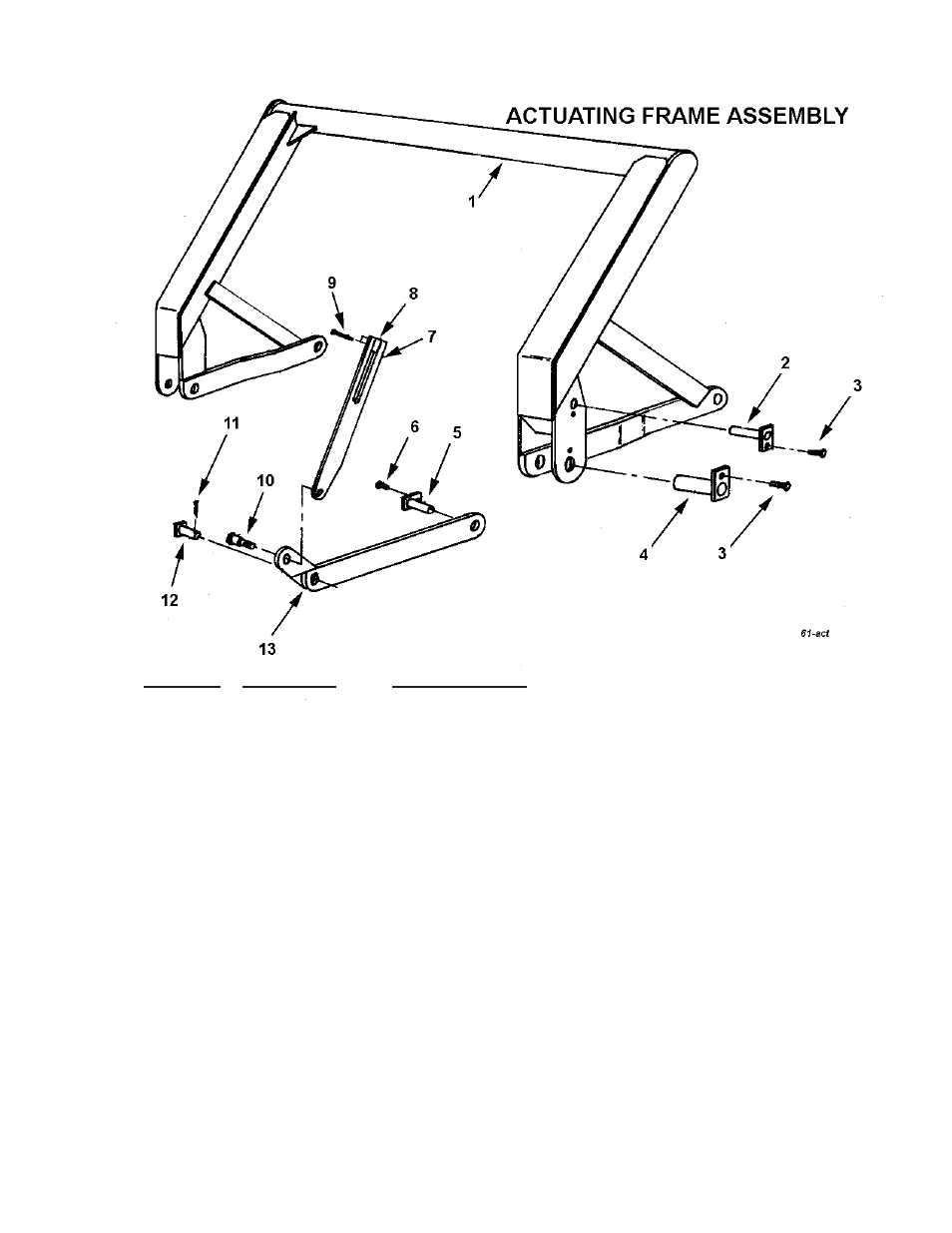

KEY NO. PART NO. DESCRIPTION
1 A6105 Actuating frame
2 A4524 Pin, 1-1/8" x 6" w/ tab head
3 Capscrew, 5/8" x 1-1/4" NC w/ LW
4 A6101 Pin, 1-3/4" x 6-1/8" w/ tab head
5 A8005 Pin, 1-1/2" x 2-11/16" w/ tab head
6 Capscrew, 5/8" x 1-1/2" w/ nut & LW
7 A6106 Actuating link
8 A6107 Stop block
9 Bolt, 3/8" x 4-1/2" NC w/ nut & LW
10 A30020 Shoulder pin, 1-1/4" x 1"
w/ ctsk grease hole in head w/ lock nut
11 Cotter pin 1/4" x 2"
12 A6007A Pin, 1-1/4" x 4-1/8" w/ square head & hole for grease zerk
13 A6108 Actuating arm, L. H.
A6109 Actuating arm, R. H.
8
