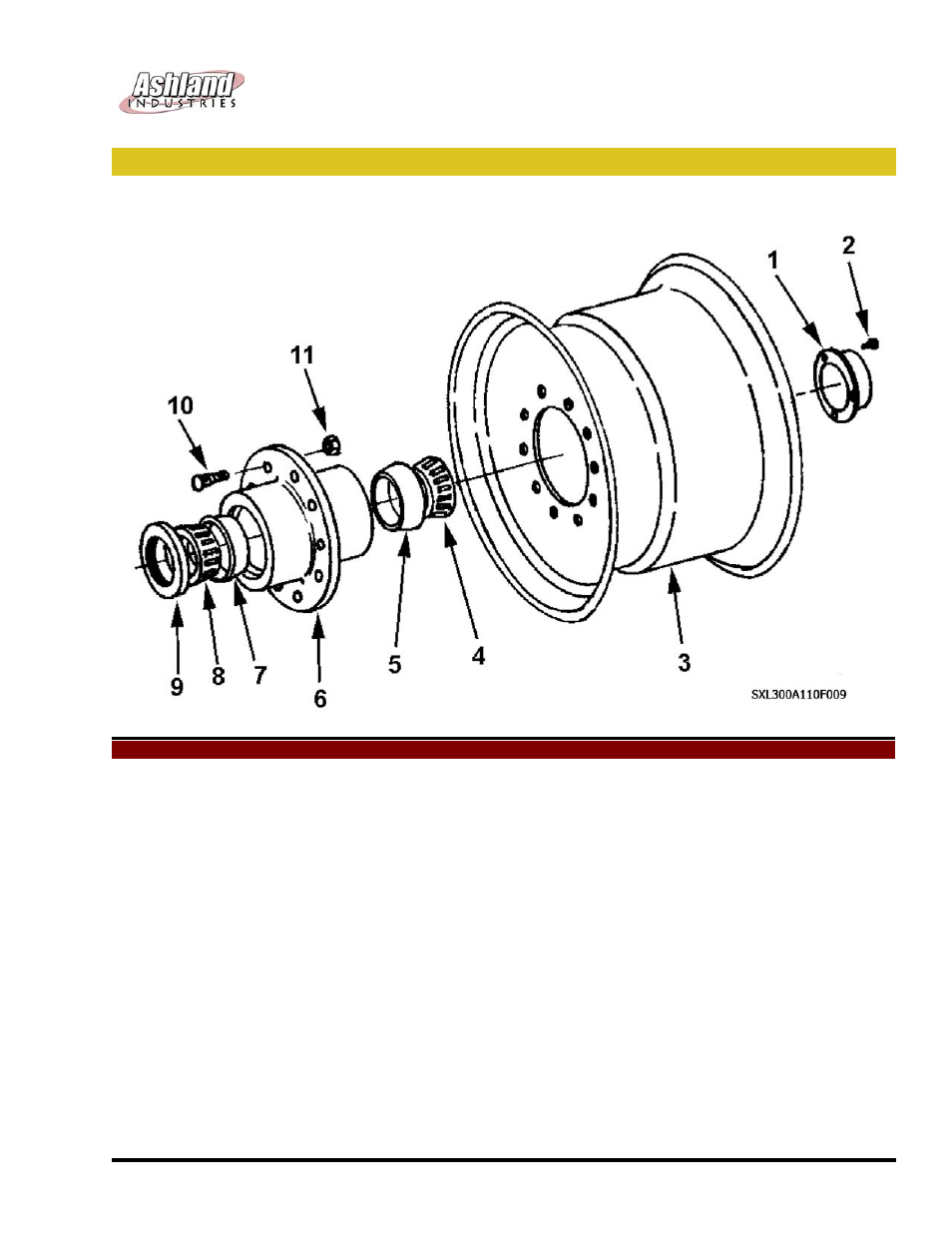

ASHLAND SCRAPERS
Assembly - Wheel Front (110)

KEY

PART

DESCRIPTION

1

A14004

Hub cap

2

AFB-00080

Bolt, 5/16 NC x 1/2 lg.

3

A10170

Wheel, 14 x 16.1 (I-110XL2)

4

A14015

Bearing cone ( Timken 644 )

5

A14014

Bearing cup ( Timken 632 )

6

A14010A

Hub

7

A14013

Bearing cup ( Timken 742 )

8

A14012

Bearing cone ( Timken 749 )

9

A14011

Grease seal ( CR 42624 )

10

A10176

Stud

11

A10046

Lug Nut
