ASHLAND SCRAPERS

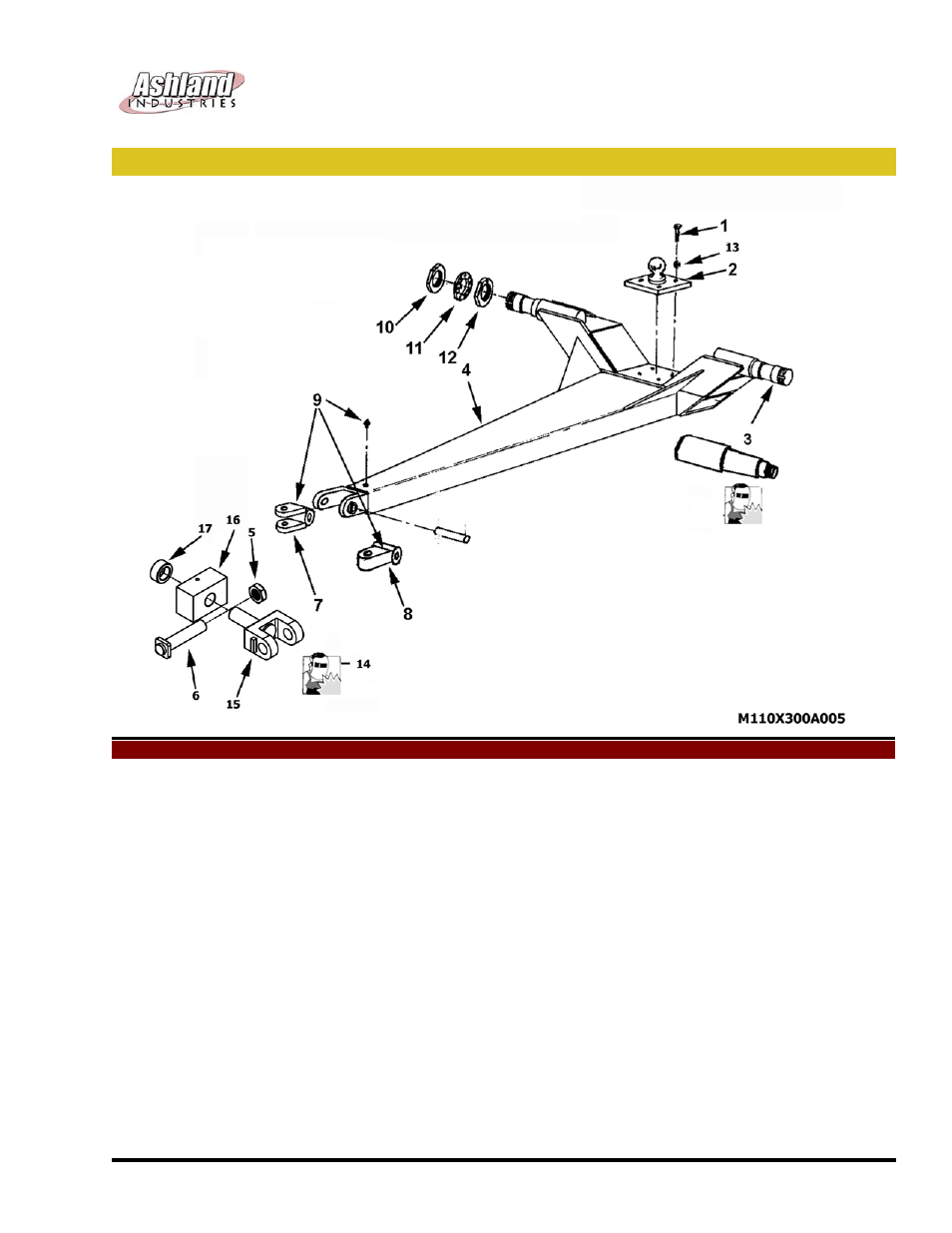

Pole & Axle Assembly (110)
KEY PART DESCRIPTION SN 110XL2
1 AFB-00005 Bolt, 3/4" NC X 2 1/2"
2 A10035 Ball Swivel
3 500581 Flat Sided spindle (weld on) 22346-XXXXX
3 A14021 Spindle Only (Weldable) XXXXX-22345
4 A10181 Pole
5 500433 Nut: Lock
6 600053 Pin: Swivel Hitch
7 A10033 Double Lip Clevis
8 A10033A Single Lip Hitch
9 14505 Grease Fitting
10 A10048 Spindle Nut
11 A10049A Lock Collar
12 A10172 Nut w/lock pin
13 AFW-00002 Lockwasher, 3/4"
14 600064 Yoke Hitch Rebuild Kit (Contains items 5,6,15,16,17)
15 A030168-3A Swivel Yoke Assembly
16 A030172-11 Swivel Block
17 A030568-01 Hitch Collar
