INSTALLATION (continued)

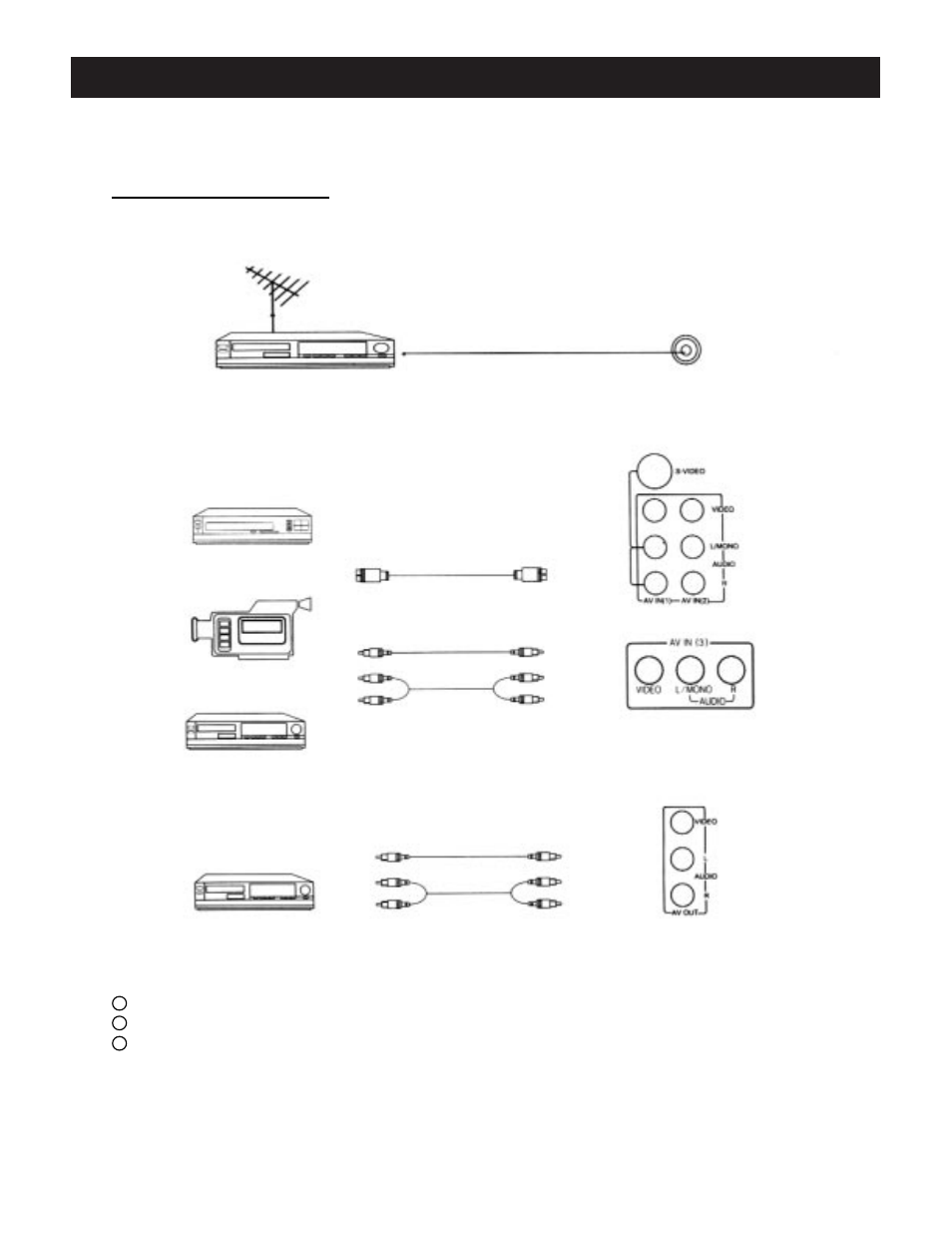

To Connect External Equipment
The following are optional connections. Please refer to operation manuals of external audio/video equipment that will be con-
nected to your set.
Connect VCR' s or DVD player' s RF OUT terminal to the AN-
TENNA IN jack located on the rear panel.
Coaxial Cable
VCR with Modulator
AUDIO/VIDEO OUT
DVD Player
AUDIO
With S-VIDEO Terminal
VIDEO
Yellow
White
Red
Yellow
White
Red
AUDIO
VIDEO
Yellow
White
Red
Yellow
White
Red
Camcorder
VCR
VCR
AUDIO/VIDEO IN
AV IN on the rear panel
AV IN on the frontr panel
AV OUT on the rearr panel
ANTENNA IN
Notes:
1 Before connection, do power off your TV and external equipment.
2 To receive signaIs from externaI equipment, you must seIect a proper AV input.
3 Do not use S - VIDEO and AV IN(1) terminals at the same time.
