For your safety
The thermal cut-out shuts the tool down if it is overloaded.
Technical specifications
Voltage
Output
Temperatures
Airflow rate
Protection class
Power cord
120 V/60 Hz
300 W
750°F without nozzle
930°F with reducer
1 /
4
" (7 mm) incl.
100 l / 3.5 CFM
I (with protective ground terminal)
Industry grade rubber 6 ft (1,8 m)
- 5 -
English
Extension Cords
As the distance from the supply outlet increases, heavier
gauge extension cords are required. The use of extension
cords of inadequate size wire causes a serious drop in volta-
ge and loss of power. Protect the cord from damage. Keep
cords away from excessive heat, sharp edges and damp
or wet areas. Repair or replace damaged extension cords
before using.
Ext. Cord Length
40 Ft. (12 m)
85 Ft. (26 m)
100 Ft. (30 m)
170 Ft. (52 m)
270 Ft. (82 m)
400 Ft. (122 m)
650 Ft. (198 m)
Wire Size
16
14
12
10
8
6
4
Note:
The HG 350 ESD utilizes a 3-prong grounded plug and, for safety, must only be used with a
3-prong extension cord.
Stainless steel outlet nozzle
Air inlet with lattice guard keeps
out foreign matter
Ergonomic soft grip handle
3-position switch
OFF/COOL/HOT
Hanging ring
Rubber sheathed cord
LED light for illuminating the area
you are working on
Heat indicator.
Turns red when the outlet
nozzle reaches a temperature
over 120°F
Reduction nozzle 1 /
4
" (7 mm)
(incl. with tool)
Wire Stand

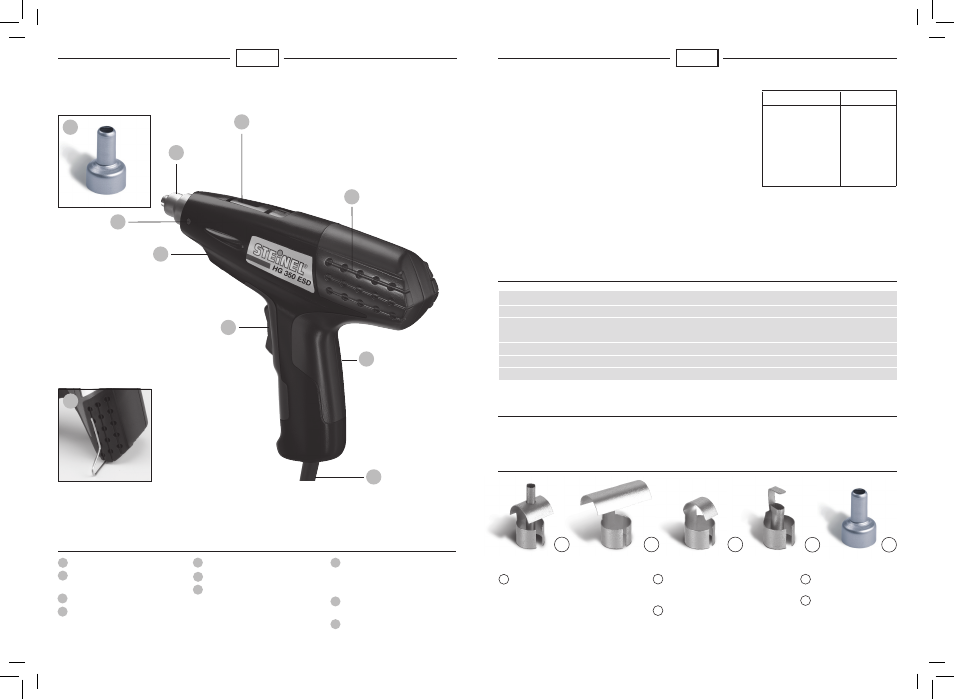

Tool features
4
1
2
3
5
6
7
9
8
10
HG 350 ESD
2
4
3
- 4 -
1
7
5
6
9
8
10
Accessories
A C D E
Reducer with Reflector Guard
For desoldering electronic compounds.
In addition to coming (incl.) with the
tool, the reducer is also available for
individual purchase in case of loss.
Item No. 07735
2 /
5
" / 10 mm Reflector
For shrinking tubing & solder sleeves
Item No. 07755
Precision Reflector
For shrinking tubing &
solder sleeves
Item No. 07745
A 1 1 / 2 " / 40 mm Reflector
For shrinking tubing & solder sleeves
Item No. 07765
B
C
D
1 / 4 " / 7 mm Reducer
Item No. 07730
E
B
English
