Typical mounting height for the IS 360 is
8 to 10 feet
The sensor’s reach will vary depending on the user’s
approach. The fi ne tune adjustment can change the
coverage angle to achieve detection earlier.

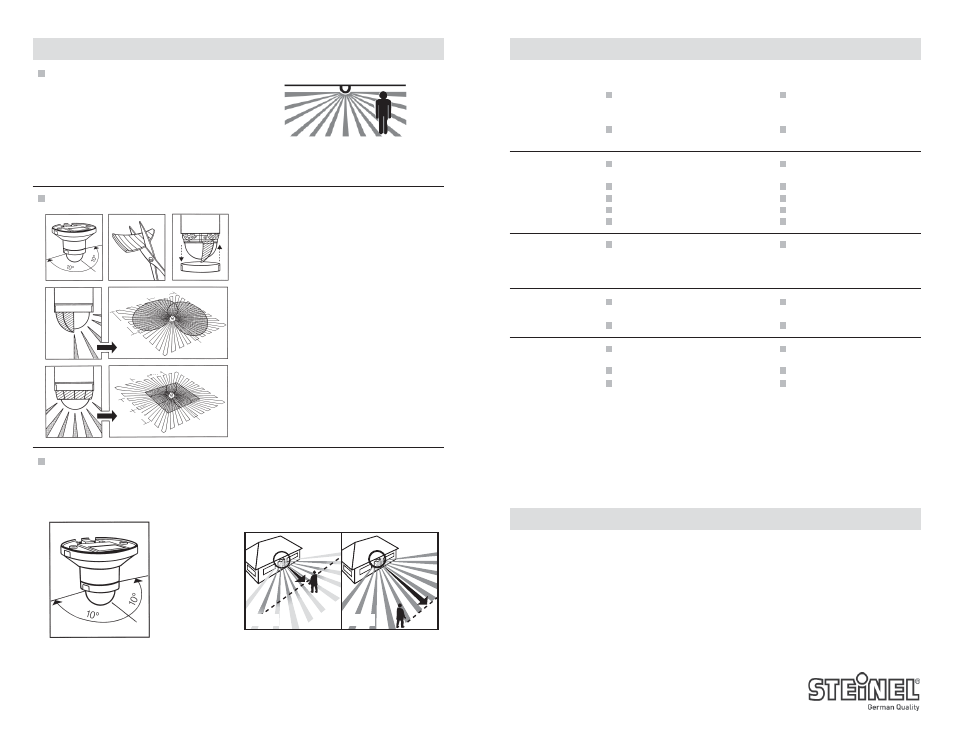

Shrouds, supplied with each unit, snap in
place, allowing users to adjust coverage
as needed. Shrouds cover any desired
number of lens segments and reduce
the reach. Undesired detection of cars,
pedestrians, etc. outside the desired
detection range can be eliminated.
The shrouds can be divided vertically or
horizontally along the grooved divisions,
or cut with scissors. After removing
the decorative ring, the shrouds are
suspended on the upper part of the sensor
lens. The decorative ring is subsequently
reapplied and the shrouds are fi xed fi rmly
in place.
Coverage adjustment - shrouds
Coverage adjustment - fi ne tune rotation
Fine tune adjustment is also possible by
turning the sensor housing ± 10°. This
alters the angle of the coverage zone.
Setup & Commissioning (cont’d)
Coverage size
With an installation height of 8 to 10 feet,
maximum reach is up to 40 ft. If needed,
the detection zone can be adjusted (see
below).
Coverage may vary depending on mounting
height and environmental conditions.
www.steinel.net (800) 852-4343
For example, in an application where
users are not detected soon enough,
adjusting the sensor housing 10° ensures
that the user’s motion enters a switching
zone sooner, thus turning lights on sooner.
ca.5m ca.12m 16 ft 40 ft
6
40 ft
40 ft
15 ft
15 ft
15 ft
15 ft
No power at the
sensor
Lights do not switch
ON
Lights do not switch
OFF
Lights keep
switching ON/OFF
Lights switch ON
without obvious
movement
breaker has tripped; light switch is in
OFF position
short circuit
light level setting is in nighttime
mode during daytime operation
lamp burned out
power is off
breaker has tripped
detection zone not correctly adjusted
abundant heat from the fi xture is
within detection zone and keeps
lights on as a result of temperature
change
switched on light is within detection
zone
animals moving in detection zone
wind is moving trees and bushes in
the detection zone
cars in the street are detected
sudden temp changes due to
weather (wind, rain, snow) or exhaust
air from fans or open windows
reset breaker, turn light switch
to ON position, check wiring
with voltage tester
check for proper wiring
connections
adjust light level setting
replace lamp
turn power on at circuit breaker
reset breaker
readjust
readjust zone or apply shroud
adjust detection zone or apply
shrouds, increase distance
adjust zone or apply shrouds
adjust zone or apply shrouds
adjust zone or apply shrouds
adjust detection zone or install
in a different place
Troubleshooting
Warranty
STEINEL America warrants its products
against defects in material or workmanship
for a period of fi ve years. STEINEL will
replace or repair the item provided that
it has not been altered or subjected to
abuse, accident, improper installation or
improper use. There are no obligations
M-11601-1 www.steinel.net (800) 852-4343
7
or liabilities on the part of STEINEL for
consequential damages arising out of or
in connection with the use or performance
of this product or other indirect damages
with respect to loss of property, revenue,
or profi t, or cost of removal, installation or
reinstallation.
Malfunction Cause Remedy
