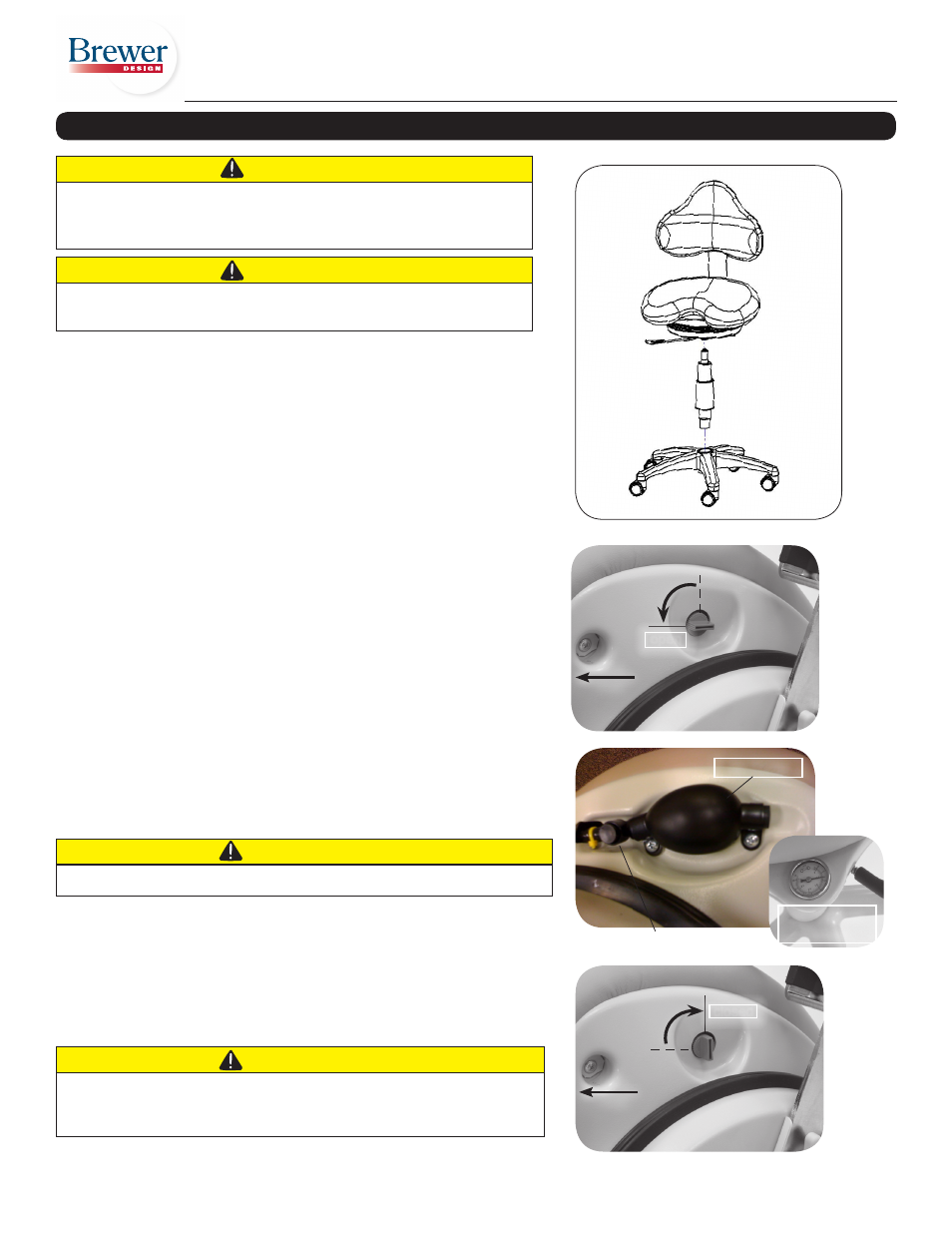

Stool assembly:

1. Remove all packing materials prior to removing the components.
2. Remove the attached backrest and seat component and carefully

set aside.

3. Remove caster base and unwrap cylinder from protective wrap.
4. Insert cylinder with cylinder cover into the caster base.
5. Carefully set the seat/backrest combination onto the piston head

of the cylinder.

ASSEMBLY INSTRUCTIONS

6. Verify Shut-off Valve, located under the seat, is in the

open position.

7. Fill the Air Suspension System by squeezing the Air Pump until the

air pressure gauge reads 4-6 psi.

8. Turn the Air Shut-off Valve ¼ turn to the

closed position. This valve

should remain closed while the stool is in use.

9. Carefully sit on seat to “taper lock” the seat to the cylinder.

Air Pump

Air Pressure

Gauge

Air Release Valve

Air Shut-off Valve

open

Stool
Front

closed

Stool
Front

To avoid damaging the stool’s upholstery, do not use a knife or

other sharp object to open the package. Also, to avoid damag-

ing the stool do not use levers for lifting.

CAUTION

Stool backrest and seat component weighs approximately 40

lbs. Use proper techniques when lifting.

CAUTION

Pump 4-6 lbs of air pressure in the system before using the stool.

CAUTION

Engage activation lever and slowly experience the tilt motion of

the stool. Slowly release air pressure from the system to experi-

ence the full extent of free motion.

CAUTION
