Electrical requirements
Product rating is 208 or 240V, 60Hz. For 240V, connect to a
50-amp circuit; connect to a 40-amp circuit for 208V operation.
The cooktop must be connected to a supply circuit of the
proper voltage and frequency and protected by a time-delay
fuse or circuit breaker.
ZEU36KSKSS black electric cooktop
with stainless steel accents,
bridge and triple-ring burner
Combination installations
Consideration must be given to electrical supply locations when
the cooktop is installed with other products in the same cabinet.
Always refer to each product’s installation instructions for
clearances and electrical requirements.
• Install this cooktop with any exhaust hood of the same
or greater width; 300 CFM or greater air flow rating is
recommended.
• The 36" cooktop may be installed with a 36" Monogram
downdraft vent. See downdraft vents for details.
* 3-1/4" deep at the front.
4-5/8" deep at the rear conduit
location. Requires 5" minimum
clearance below the cooktop
bottom to combustible materials.
16" Min
Junction
Box
605Dia125
605Dia126
3-1/4"
6-1/4"
5-1/2"
16" Min
Junction
Box
605Dia125
ZEU30RSFSS black electric
cooktop with stainless steel
accents, bridge and
triple-ring burner
Electrical requirements
Product rating is 208 or 240V, 60Hz. For 240V, connect to a
40-amp circuit; connect to a 30-amp circuit for 208V operation.
The cooktops must be connected to a supply circuit of the
proper voltage and frequency and protected by a time-delay
fuse or circuit breaker.
Combination installations
Consideration must be given to electrical supply locations when
the cooktop is installed with other products in the same cabinet.
Always refer to each product’s installation instructions for
clearances and electrical requirements.
• Install this cooktop with any exhaust hood of the same or
greater width; 300 CFM or greater air flow rating is recommended.
• The 30" cooktop may be installed in combination with a
Monogram 30" downdraft vent. Install the 36" cooktop with
a 36" downdraft vent. See downdraft vents for details.
• A 27" warming drawer may be installed beneath a 30" digital
cooktop, and a 30" warming drawer may be installed beneath
a 36" digital cooktop.
• A Monogram single oven may be installed below these cooktops.
The serial plate is located on the bottom of the cooktops.
All models require 5" minimum
clearance below the cooktop bottom
to combustible materials.

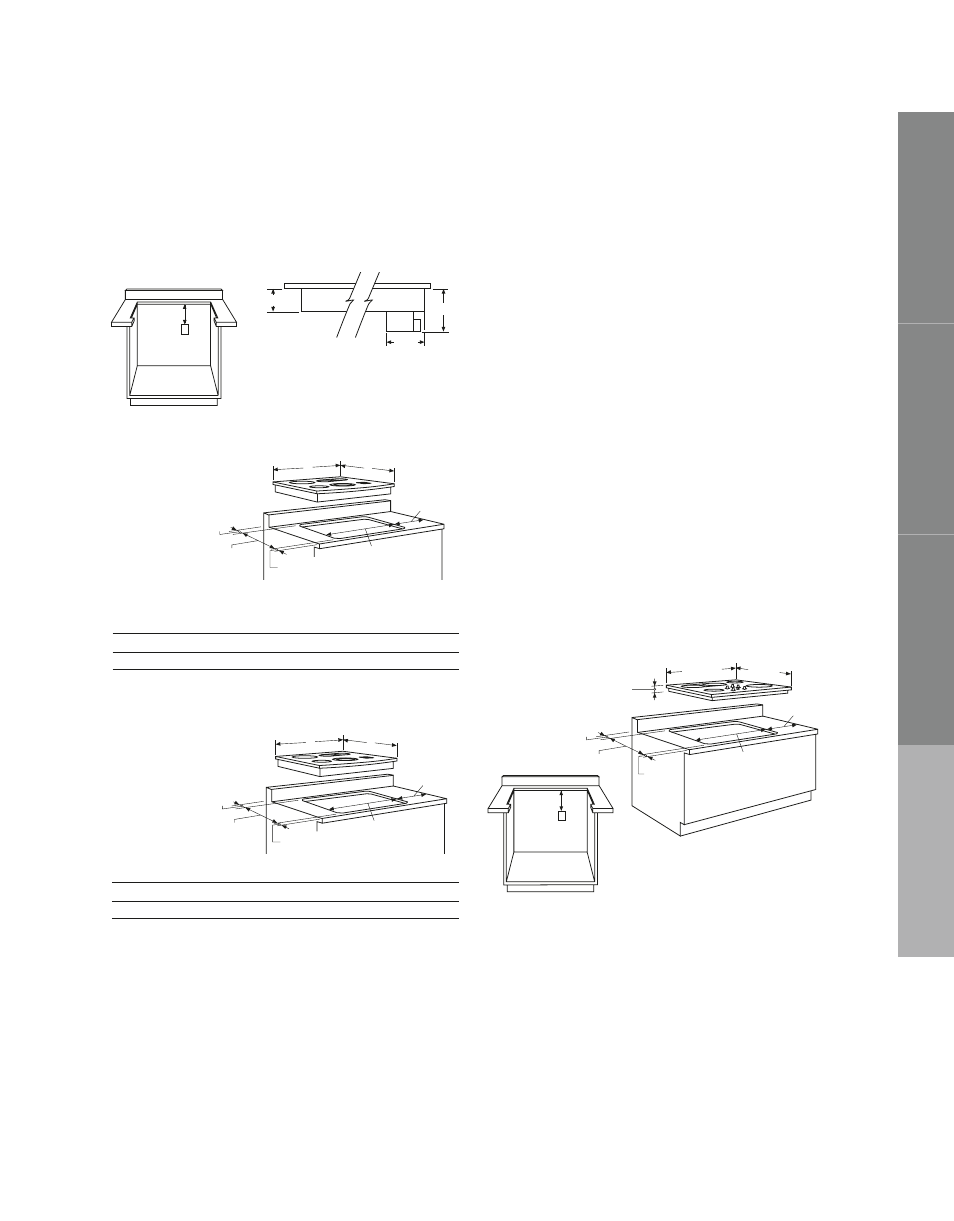

Advance planning for electric cooktops
605Dia124
A
28-1/2"
2" Min.
to Side Walls
B
2-1/2" Min.
to Front Edge
1-3/4"
Min.
19-5/8"
ZEU36RSFSS black electric
cooktop with stainless steel
accents, bridge and
triple-ring burner
605Dia123
A
33-7/8"
2" Min.
to Side Walls
B
2-1/2" Min.
to Front Edge
1-3/4"
Min.
19-1/8"
Front
30" digital cooktop (in inches)
A B (at center)
29-7/8" 21-5/8"
36" digital cooktop (in inches)
A B (at center)
36-1/8" 21-1/4"
