122
Dimensions and Specifications (in inches)
Custom Panel for Model ZBD9900RII
These dishwashers require a 3/4"-thick custom panel and
custom handle which should be installed before the unit is
mounted to the cabinet. An installation template is packed
with the model and can be obtained in advance. Order Pub.
No. 31-30269. Complete panel installation instructions are
included on the template.
Custom panel size requirements
• Panel height must be 28-3/8" MIN. and 31-1/2" MAX to
accommodate different toekick heights
• Max. panel width cannot exceed cutout dimensions less 1/8"
(2.5mm) reveal on each side
• Springs shipped with unit can handle panel weight up to 15
lbs. Panels weighing 15-19 lbs. : order one accessory spring.
Panel weight: up to 15 lbs. Up to 19 lbs. with accessory spring
WD01X10445. If panel weight is over 19 lbs, order two of the
accessory spring kits, WD01X10445.
IMPORTANT: The custom panel must not obstruct the fan
exhaust vent; otherwise, moisture from the vent could
eventually damage the panel and create drying problems.
Corner Installation: If the dishwasher is installed in a corner,
there must be a minimum clearance of 2" (50mm) from the side
wall so the door can open.

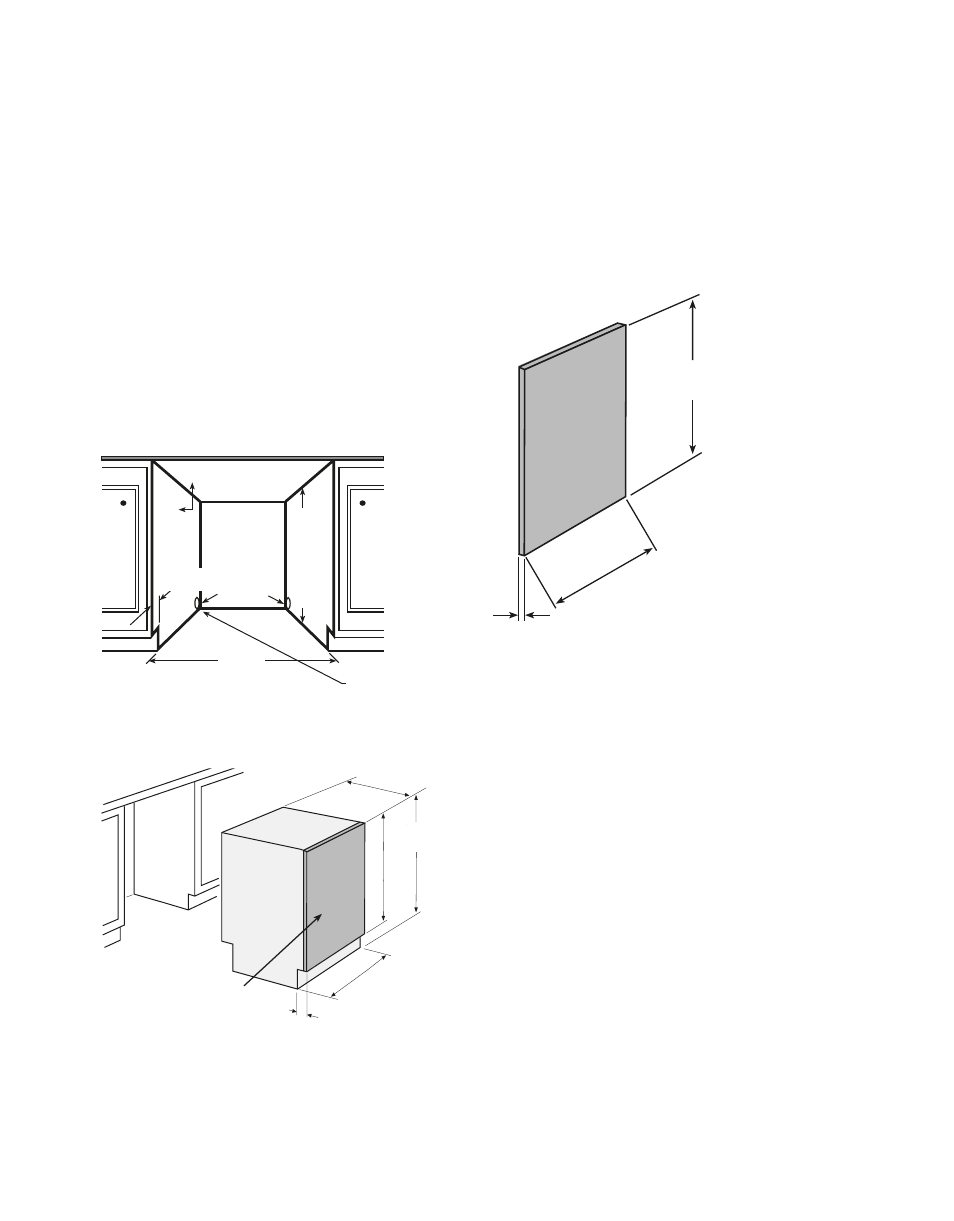

CUSTOM PANEL
3/4” thick
19 mm
23-3/
8”
to 23-3/
4”
594-603m
m
28-3/8” to 31-1/2”
721-800mm
** Height must be 28-3/8” MIN. - 31-1/2”
MAX. to accommodate different toe kick
heights.
The Monogram ® fully integrated dishwasher is designed to
install perfectly flush with 24" inset cabinetry when fitted
with a stainless steel or custom panel.
Supplied or custom toekick
• Depending on cabinetry style, a custom toekick can also be
installed to match cabinetry. Care must be taken to assure
door swing clearance above toekick. Maximum custom
toekick height is 6".
Electrical requirements
The dishwasher must be supplied with 120V, 60Hz, and
connected to an individual properly grounded branch circuit
protected by a 15 amp circuit breaker or time-delay fuse.
Advance planning for fully integrated dishwasher
Cable Hole
1-3/4” DIA.
44 mm DIA.
90°
2-4”
50 -105 mm
* W = 24”
W = 610 mm
H = 34-1/4” to 36-3/8”
H = 870-920 mm
Make sure the edges of the cable
hole are even to avoid damage to
the drain and supply hoses and the
electric cable.
* Actual width of Dishwasher allows for
installation in a 23-5/8” wide cutout.
If optional Stainless Steel door panel
(ZXSS9900) is used, the cutout MUST be
24”.
NOTE: A 24” cutout may require additional
trim for a fi nished appearance.
Cable Hole
1-3/4” DIA.
44 mm DIA.
90°
2-4”
50 -105 mm
* W = 24”
W = 610 mm
H = 34-1/4” to 36-3/8”
H = 870-920 mm
Make sure the edges of the cable
hole are even to avoid damage to
the drain and supply hoses and the
electric cable.
* Actual width of Dishwasher allows for
installation in a 23-5/8” wide cutout.
If optional Stainless Steel door panel
(ZXSS9900) is used, the cutout MUST be
24”.
NOTE: A 24” cutout may require additional
trim for a fi nished appearance.
50-83
mm
594 mm
870-920mm
720-800m
m
581m
m
34-1/4 to 36-1/8”
23-3/
8”
2 to 3-1/
4”
22-7/8”
28-3/8 to 31-1/
2
”
(T
ub
W
idt
h)
Dishwasher door shown
without custom panel or
panel kit
50-83
mm
594 mm
870-920mm
720-800m
m
581m
m
34-1/4 to 36-1/8”
23-3/
8”
2 to 3-1/
4”
22-7/8”
28-3/8 to 31-1/
2
”
(T
ub
W
idt
h)
Dishwasher door shown
without custom panel or
panel kit
