NOTES
24"
(61.0)
min cutout depth
6"
(15.2)
4"
(10.2)

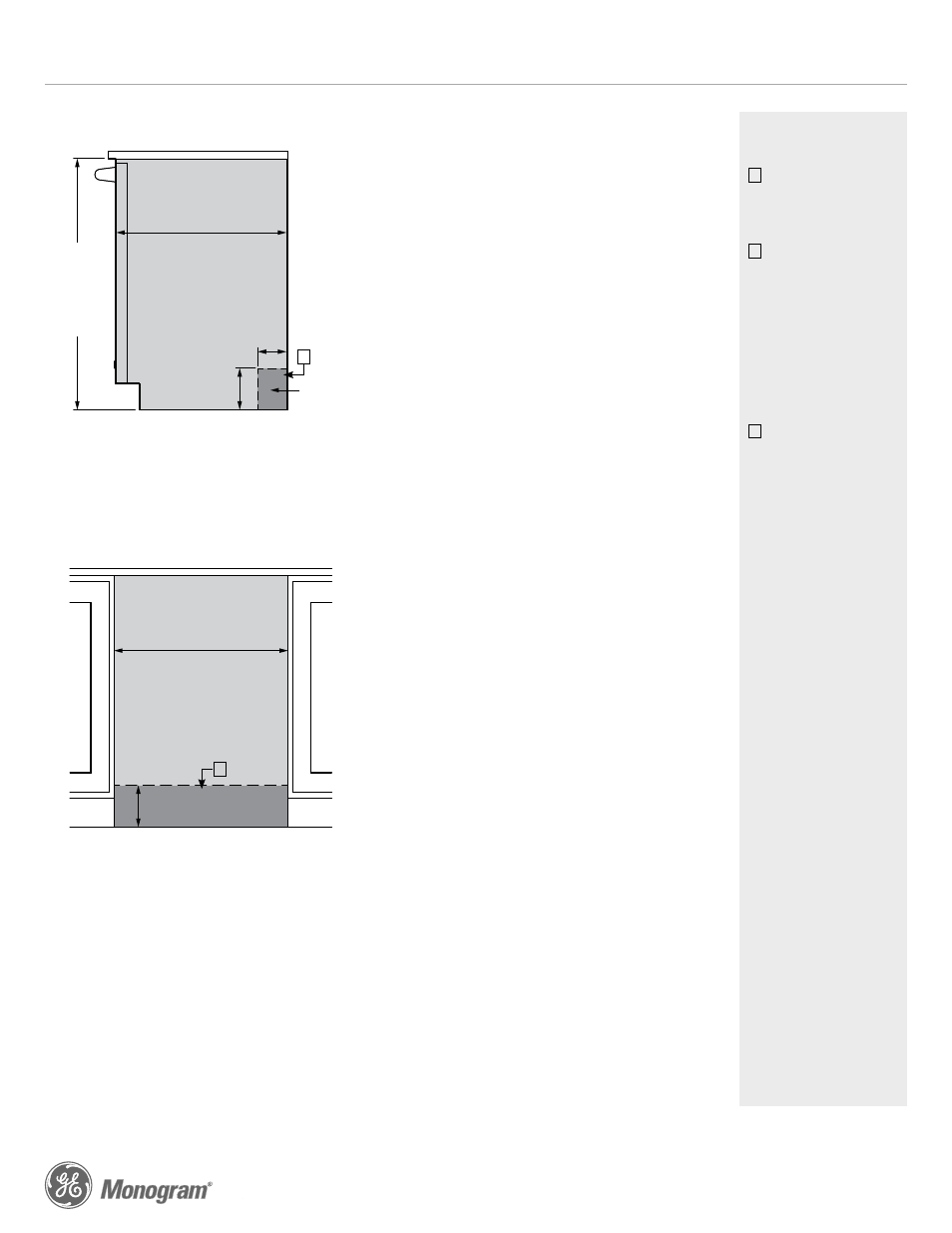

FLUSH CUTOUT INSTALLATION
33 1/2"
(85.1) min
underside of
counter to floor
34 3/4"
max
(88.3)
ZDT870SPFSS & ZDT800SPFSS
24 "
(61.0)
Min
cutout width
INSTALLATION CUTOUT FRONT VIEW
6"
(15.2)
ELECTRIC/
WATER
ELECTRIC/
WATER
INSTALLATION
A The dishwasher drain
hose must be no more
than 12 feet in length
for proper drainage.
B Electrical connections
are at the right front
of the dishwasher and
water connections are
on the left. The hot
water line should extend
forward 30" to 40"
from the rear wall. The
electrical must extend
forward at least 24" to
reach the junction box.
C To prevent siphoning,
an air gap or high drain
loop must be used.
Product Specification Created 3/14
GE Monogram ® 24" Fully Integrated Dishwasher
B
B
ZDT800SPFSS
