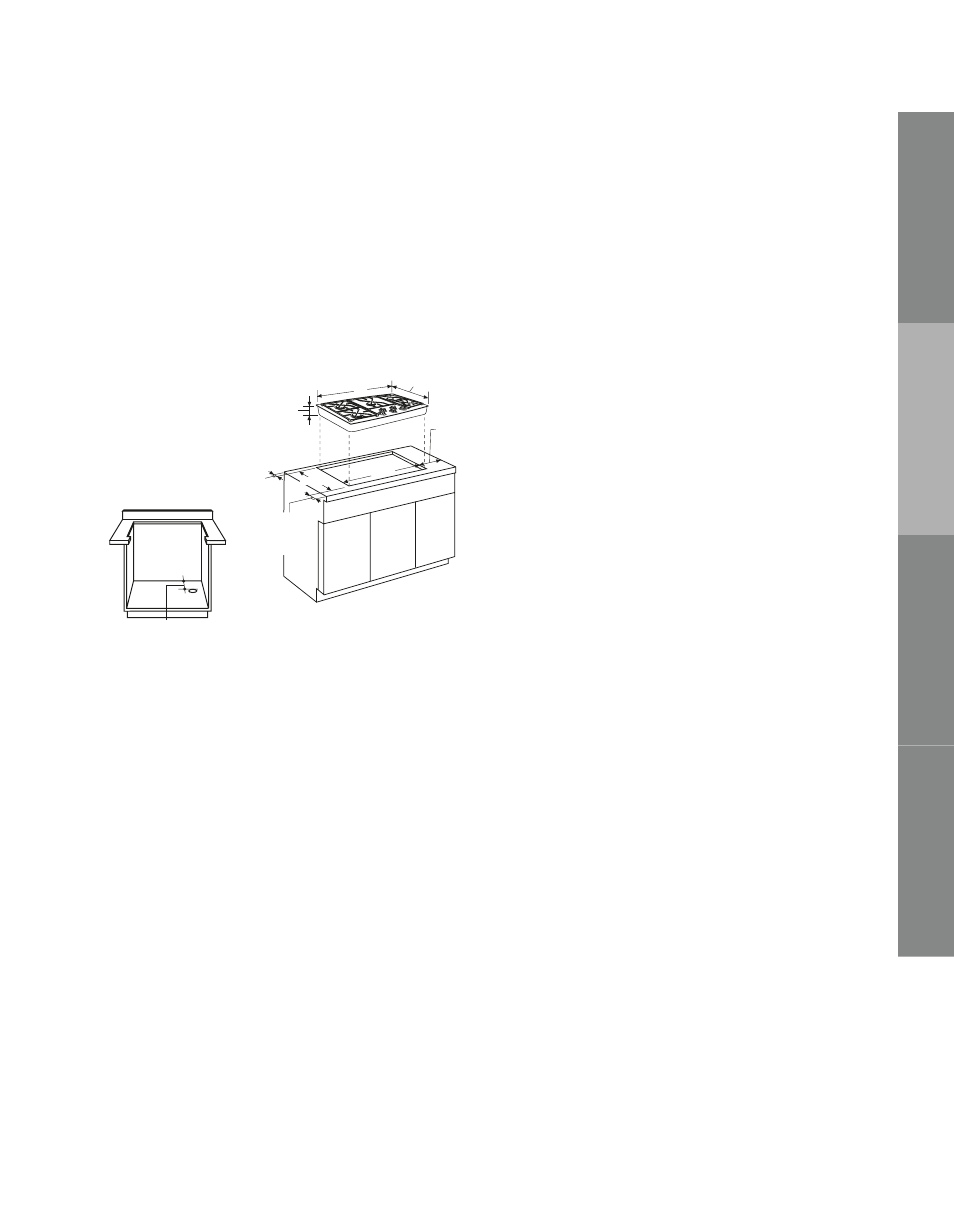

Advance planning for gas cooktops
605Dia120
2-1/4" Min.
to Rear Vertical
Combustibles
6" Min.
Cutout
To Side
Walls
33-7/8"
2-1/2"
Min. From
Front of
Countertop
19-1/8"
36"
21-7/16" SS
21-1/4" B
Deep at Center
3-1/16"
Gas-on-glass cooktop
Gas-on-glass cooktop is factory set for natural gas operation. It
can be converted to LP operation with a conversion kit shipped
with the cooktop.
Electrical requirements
This cooktop requires a 120V, 60Hz power supply.
A separate circuit, protected by a 15-amp time-delay
fuse or circuit breaker, is required. The receptacle should
be checked by a qualified electrician for correct
polarity and proper grounding.
Gas supply
• This cooktop is designed to operate at 5" water
column pressure. A regulator is required at the natural gas
source to provide a maximum of 7" water pressure to the
cooktop regulator.
• When converted to liquid propane operation, it is designed to
operate at 10" water column pressure. A regulator is required
at the LP source to provide a maximum of 14" water pressure to
the cooktop regulator.
Combination installations
Consideration must be given to gas and electrical supply
locations when the cooktop is installed with other products in
the same cabinet. Always refer to each product’s installation
instructions for clearances and electrical requirements.
• Install this cooktop with any 36" or wider exhaust hood
with 300 CFM or greater air flow rating.
• This cooktop may be installed in combination with a Monogram
36" downdraft vent. See downdraft vents for details.
• This cooktop may be installed above a Monogram
30" warming drawer. See warming drawers for details.
• This cooktop may be installed above a Monogram single oven.
The serial plate is located on the bottom of the cooktop.
ZGU36KSKSS Black
with stainless steel trim
Locate the gas on the right side,
1" forward of the back of the cutout.
Install an electrical outlet 12" below
the countertop. 1" Min. Forward of
Back of Cutout
