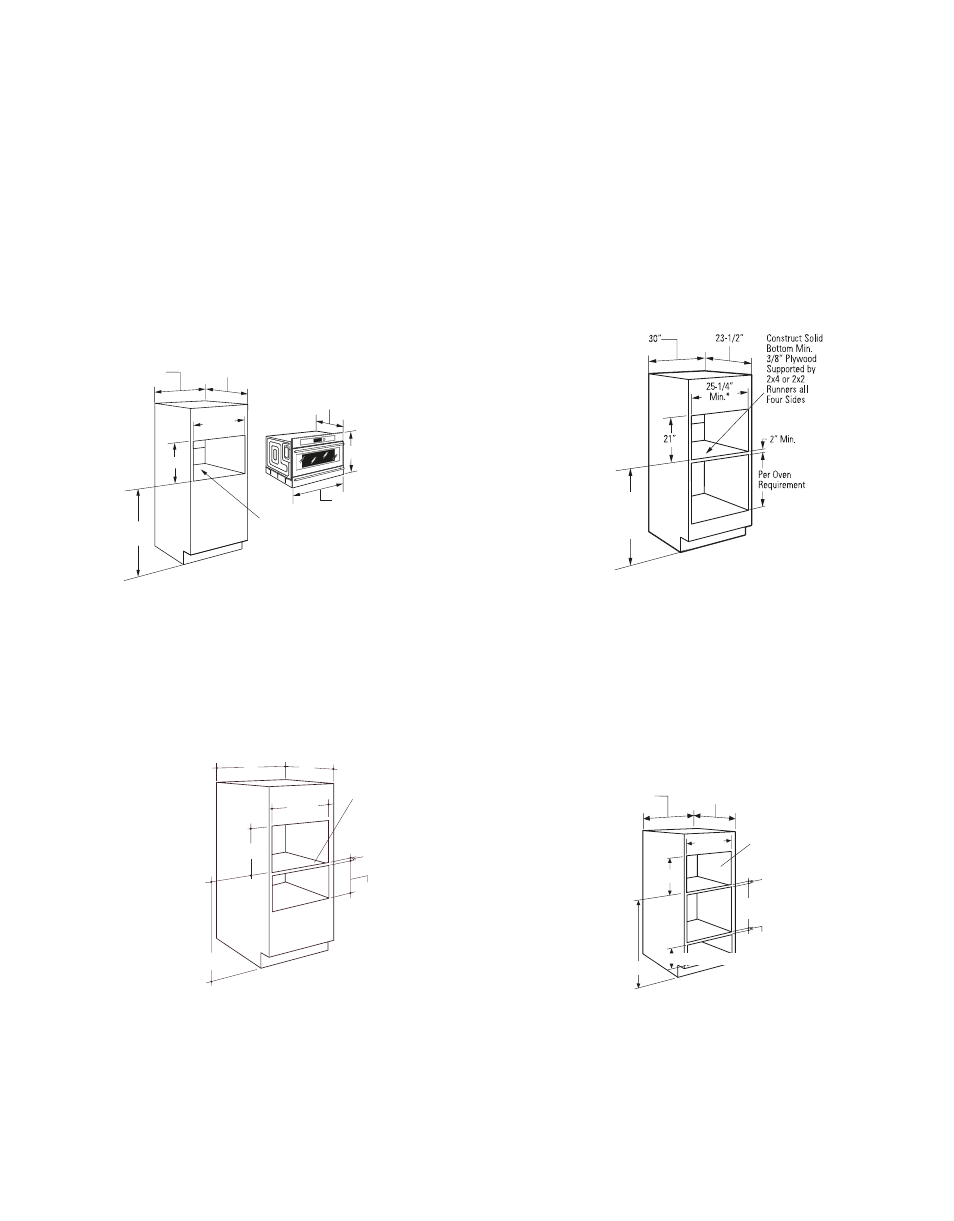

Advance planning for wall ovens with Advantium ® 240 Speedcook technology
with optional storage drawer
ZSC2201NSS Advantium 240 oven with accessory storage
drawer ZX2201NSS installed above a Monogram single wall
oven and a warming drawer
An anti-tip block must be installed at the rear of the warming
drawer opening. See installation instructions for complete details.
• The Advantium oven and single oven combination must use
separate electrical junction boxes.
• The warming drawer must be supplied with a separate 120V,
60Hz, properly grounded receptacle.
Note: Additional
clearance between
cutouts may be
required. Check to be
sure the oven supports
above the warming
drawer location do not
obstruct the required
interior 23-1/2" depth
and 9-1/4" height. See
each specific product’s
installation instructions
for details.
30" 23-1/2"
21"
45-1/4"
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2" Min.
Per Oven
Requirement
2" Min.
Per warming drawer requirement
25-1/4"
36-3/4" Min.
30"
23-1/2" Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2" Min
Per Warming
Drawer
Requirement
25-1/4"
21"
ZSC2201NSS Advantium 240 oven with accessory storage
drawer ZX2201NSS installed above a Monogram
® single wall oven
When installed over a single oven or a warming drawer, allow at
least 2" between the two openings. This separation will provide
clearance for bottom overlap of the Advantium oven and top
overlap of the single oven or warming drawer.
• The Advantium oven and single oven combination must use
separate electrical junction boxes.
36-3/4”
Min.
45-1/4”
Recommended
Note:
Additional
clearance
between
cutouts
may be
required.
ZX2201NSS Accessory storage drawer
The accessory storage drawer is ideal for storing extra Advantium
trays and the convection shelf. It is only compatible with the
ZSC2201NSS. Use these cutout dimensions for ZSC2201NSS and
ZX2201NSS combination installations. The drawer is assembled to
the Advantium oven before it is installed into the cutout.
ZSC2201NSS Advantium 240 oven with accessory storage
drawer ZX2201NSS
Order a 30"-wide single oven cabinet or cut the opening in a wall
to the dimensions shown.
ZSC2201NSS Advantium 240 oven with accessory storage
drawer ZX2201NSS installed above a Monogram warming drawer
An anti-tip block must be installed at the rear of the warming
drawer opening. Again, see installation instructions for complete
details.
• The warming drawer must be supplied with a separate 120V,
60Hz, properly grounded receptacle.
* The middle rail
separating the
two openings
may need to be
larger than the
2" min. shown.
