GE JGAS02SENSS - Manual

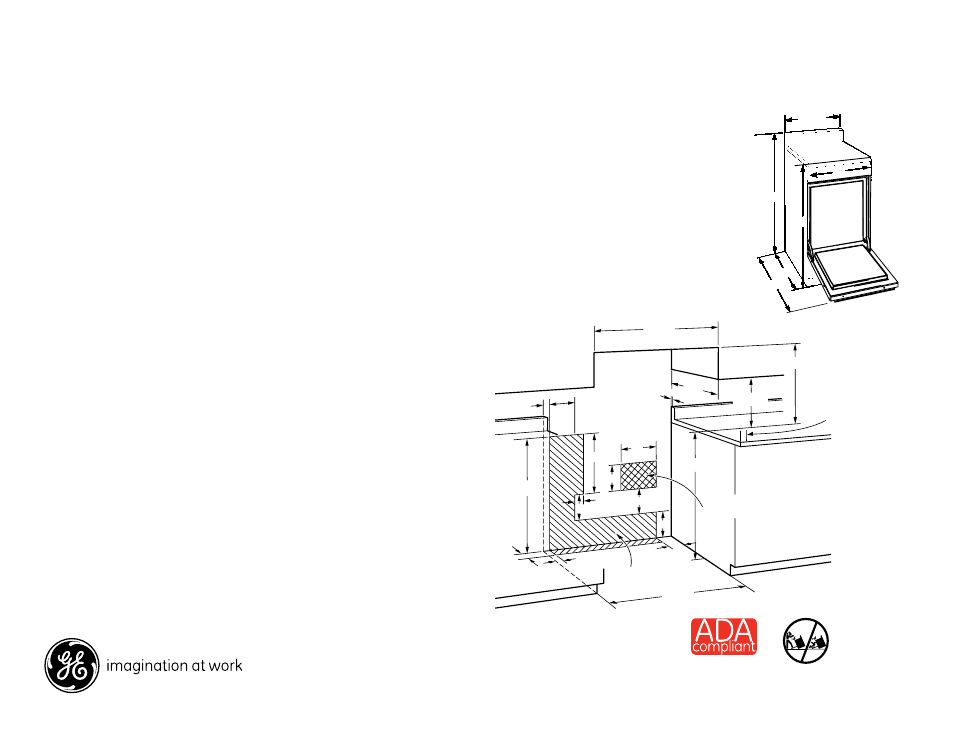

Dimensions and Installation Information (in inches)
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
JGAS02SEN
GE ® 24" Standard Clean Free-Standing Gas Range
Specification Revised 12/11 330401
3
24-3/8
24-2/3
2
5-1/2
30
2
2
8
8
8
36
8
12
3
5
14
1/4
13
Max.
18 Min.
30 Min.
Electrical
Connection
Area
NOTE: Recommended gas
hook-up locations behind
range. Gas fittings and
shut-off cock should NOT
protrude more than 2" from
the wall to allow the range
to fit against the wall.
Minimum
distance to
walls above
the cooktop
on each side
Gas
Hookup
Area
36
44-2/3
41
24-1/3
24
23.15
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Optional Gas Range Accessory Drip Pans for
Sealed and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
*
