GE ® 30" Drop-In Electric Range

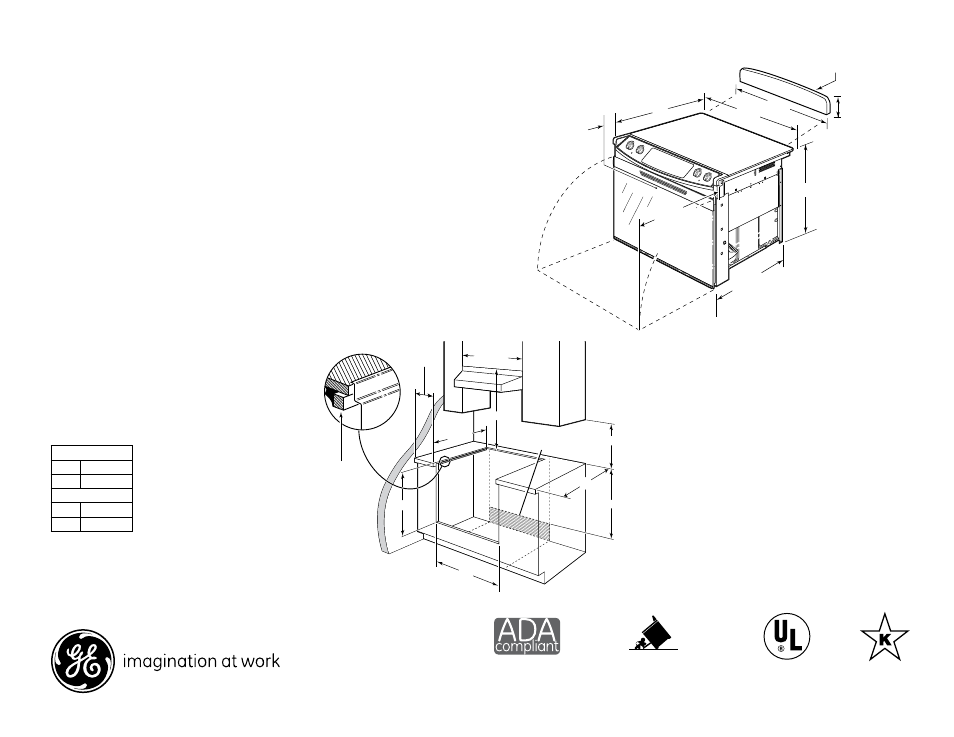

Dimensions and Installation Information (in inches)
Dimension and installation information are shown in inches.
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
2-7/8"
To Front Surface
of Countertop
30
27-1/2
25
23-3/16
If necessary,
build upsides
to 1-1/4" thick
to provide
countertop
support
27
20-5/8" Door
Clearance
From Front
Surface of
Countertop
24 31-1/4
30 4
Accessory
Backguard JXS32
25-3/4*
(excluding handle)
*Total depth from wall to
front of closed oven door
including handle is 28-1/2.
28-1/2
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
2-7/8"
To Front Surface
of Countertop
30
27-1/2
25
23-3/16
If necessary,
build upsides
to 1-1/4" thick
to provide
countertop
support
27
20-5/8" Door
Clearance
From Front
Surface of
Countertop
24 31-1/4
30 4
Accessory
Backguard JXS32
25-3/4*
(excluding handle)
*Total depth from wall to
front of closed oven door
including handle is 28-1/2.
28-1/2
Listed by
Underwriters
Laboratories
ADA qualified based
on Uniform Federal
Accessibility Standards
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
*
Specification Created 6/13 320834
IMPORTANT: 30" DROP-IN RANGES ARE DESIGNED TO HANG FROM THE COUNTERTOP.
IT DOES NOT REST ON THE FLOOR. FOR INSTALLATION ALTERNATIVES, REFER TO
INSTALLATION INSTRUCTIONS.
Note: This appliance has been approved for 0” spacing to adjacent surfaces
above the cooktop. However, a 6” minimum spacing to surfaces less than 15”
above the cooktop and adjacent cabinet is recommended to reduce exposure
to steam, grease splatter and heat.
Optional Kits For Drop-In Electric Ranges (Available At Additional Cost)
Installation information: Before installing,
consult installation instructions for current
dimensional data and additional requirements.
Accessory Backguards
(Attaches to the back of range
as a backguard when unit is installed
in 30" free-standing cutout)
JXS32SS (Stainless) - 4" High
JXS32BB (Black) - 4" High
Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
KW Rating
240V 11.9
208V 8.9
Breaker Size
240V 40 Amps †
208V 40 Amps †
† Note: Check local codes for required breaker size.
