GE JAS02SNSS - Manual

† Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible

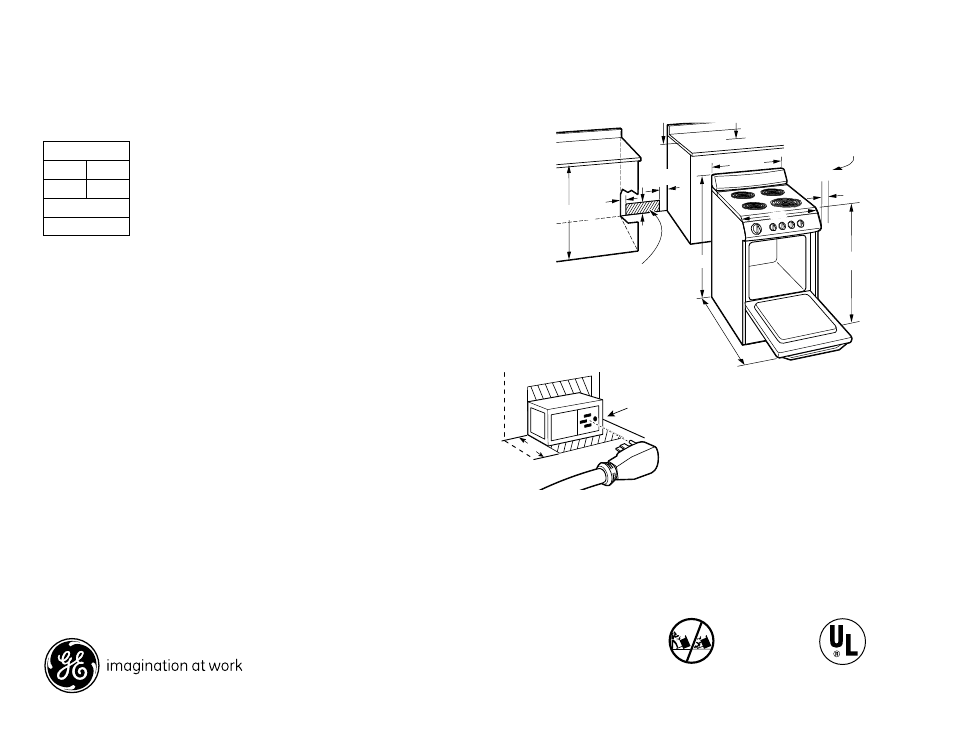

after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
One year warranty: Entire appliance; parts and labor; in-home
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.
Dimensions and Installation Information (in inches)
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 4/11 322003
KW Rating
240V 7.4
208V 9.8
Breaker Size
40 Amps †
From combustible
walls above
cooking surface
2
36
13
MAX
36 MAX
A
5
2
2-1/2
30 MIN
15 MIN
Surface
mount
outlet
(Depth with
door open)
24-3/8
41
24-1/3
Recommended acceptable electrical
outlet area. Orient the electrical
receptacle so the length is parallel
to the floor.
Floor
Outlet box
Cord
Wall Mounted
Wall
2-1/4"
24
A= 44-2/3 for model JAS02SNSS
and 47 for model JAP02SNSS.
JAS02SN
GE ® 24" Standard Clean Free-Standing Electric Range
