GE JB870SFSS - Manual

Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

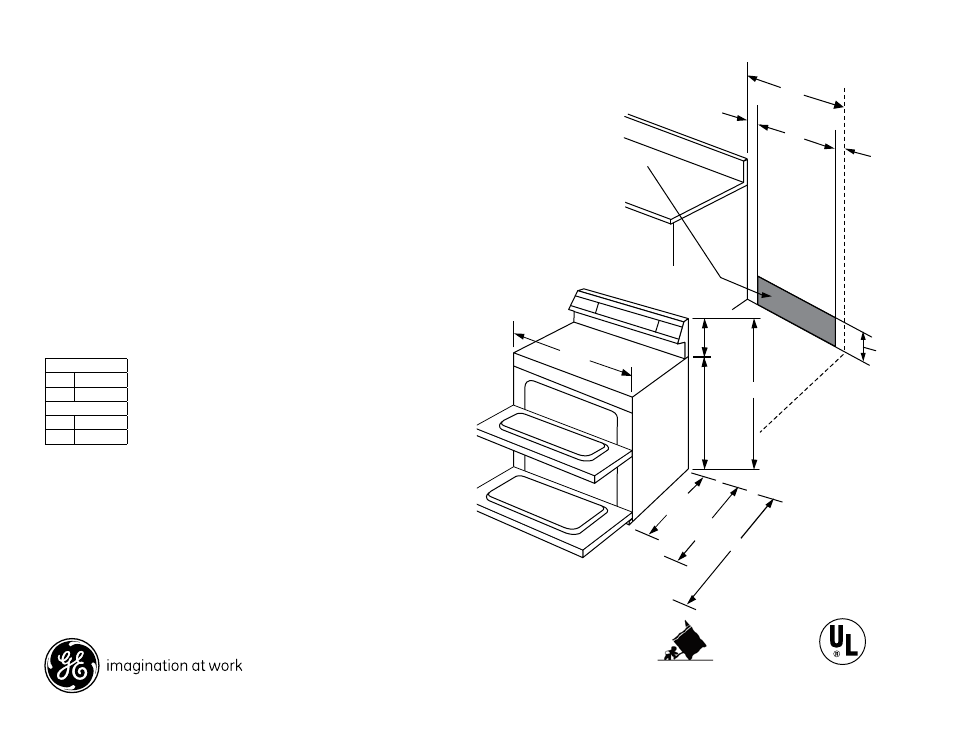

Dimensions and Installation Information (in inches)
For answers to your Monogram ® or GE ®
appliance questions, visit our website at
geappliances.com or call GE Answer Center ®
service, 800.626.2000. Specification Created 6/13 321566
JB870SF
GE ® 30" Free-Standing Electric Double Oven Range with Convection
30
24
3
3
7-1/2
Use a flush mount
outlet receptacle.
Orient the receptacle
so the length is
parallel to the floor.
Acceptable electrical
outlet area:
w/o handle
w/handle
45
28-1/4
25-3/4
47
29-7/8
35-3/4
to
36-1/2
11
30" Free-Standing Electric Double Oven Range
Receptacle Locations
Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly
against wall.
Note: This appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a 6” minimum
spacing to surfaces less than 15” above the cooktop and
adjacent cabinet is recommended to reduce exposure to
steam, grease splatter and heat.
Installation Information: Before installing, consult installation
instructions for current dimensional data and additional
requirements.
KW Rating
240V 15.2
208V 11.4
Breaker Size
240V 40 Amps †
208V 40 Amps †
† Note: Check local codes for required breaker size.
