GE JGB850SEFSS - Manual

Electrical Rating: 120V, 60Hz, 15A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
JGB850SEF
GE ® 30" Free-Standing Gas Double Oven Range
Specification Revised 10/13 330457

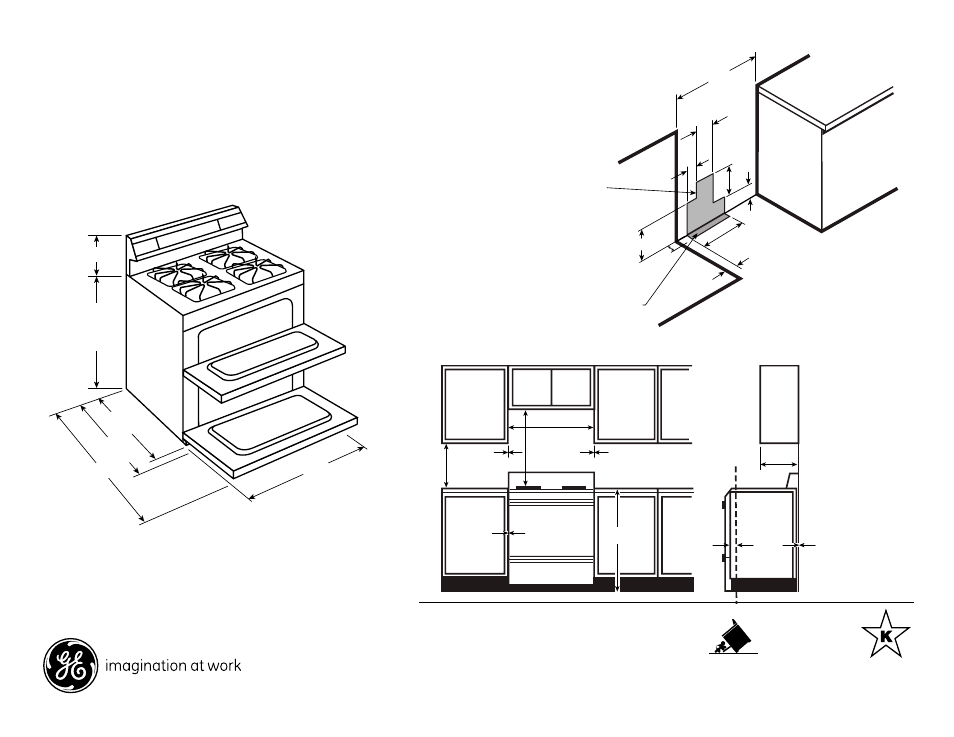

Dimensions and Installation Information (in inches)
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
Minimum
Minimum
clearance to
right wall
Maximum
depth for
cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
To cabinets below cooktop
and at the range back
To cabinets
below
cooktop and
at the range
back
18"
3"
30"
30"
13" 6"
36" 0"
0" 1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
27 3/4"
11 1/4"
44"
29 1/2"
w/o handle
w/ handle
30"
36"
to
36 1/2"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
Minimum
Minimum
clearance to
right wall
Maximum
depth for
cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
To cabinets below cooktop
and at the range back
To cabinets
below
cooktop and
at the range
back
18"
3"
30"
30"
13"
6"
36" 0"
0" 1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
27 3/4"
11 1/4"
44"
29 1/2"
w/o handle
w/ handle
30"
36"
to
36 1/2"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
Minimum
Minimum
clearance to
right wall
Maximum
depth for
cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
To cabinets below cooktop
and at the range back
To cabinets
below
cooktop and
at the range
back
18"
3"
30"
30"
13"
6"
36" 0"
0" 1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
27 3/4"
11 1/4"
44"
29 1/2"
w/o handle
w/ handle
30"
36"
to
36 1/2"
For answers to your Monogram ® or GE ®
appliance questions, visit our website at
geappliances.com or call GE Answer Center ®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
