GE CSA1201RSS - Manual

For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center ®
service, 800.626.2000.
Dimension Information (in inches)
Important: Please read carefully. For personal safety,
this appliance
must be properly grounded to avoid
severe or fatal shock.
Do not, under any circumstances, cut, deform, or
remove any of the prongs from the power cord.
Do not use with an extension cord.
Installation Information: This information is not
intended to be used for installing unit described.
Before installing, consult installation instructions
packed with product/kit for current dimensional data.
Listed by
Underwriters
Laboratories

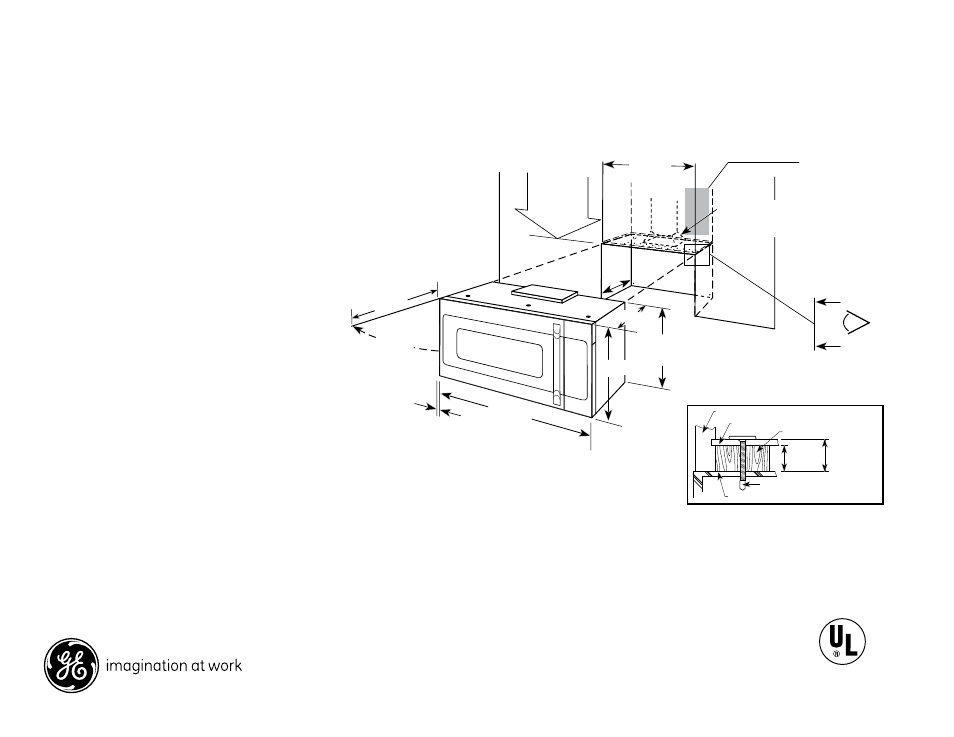

Over-the-Range Advantium oven
Dimensions (in inches)
66" MIN.
Mounting
height
from floor
Exhaust outlet
connects to
3-1/4" X 10" duct
16-1/4"
(Rear)
15-1/2"
25-1/2
15-3/4"
30"
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
13"
MAX.
12"
MIN.
(without obstruction)
100˚
Door open
30"
MIN.
width
required
Cabinet Front
SIDE VIEW A-A
Cabinet Bottom Shelf
Filler Block
Self-Aligning Screw
Oven Top
Equivalent
to Depth of
Cabinet Recess
This distance can
NOT exceed 2” to
ensure proper
installation with
the provided
screws.
240V and 120V outlets
need to be spaced on
the side if the desire is
to setup with top
exhaust.
A
A
Note: Outside venting is optional. Vent (duct) can be horizontal or vertical.
Specification Revised 7/13 240451
CSA1201RSS
GE Café Series Advantium ® 120 Above-the-Cooktop Oven
