Installation Instructions
12

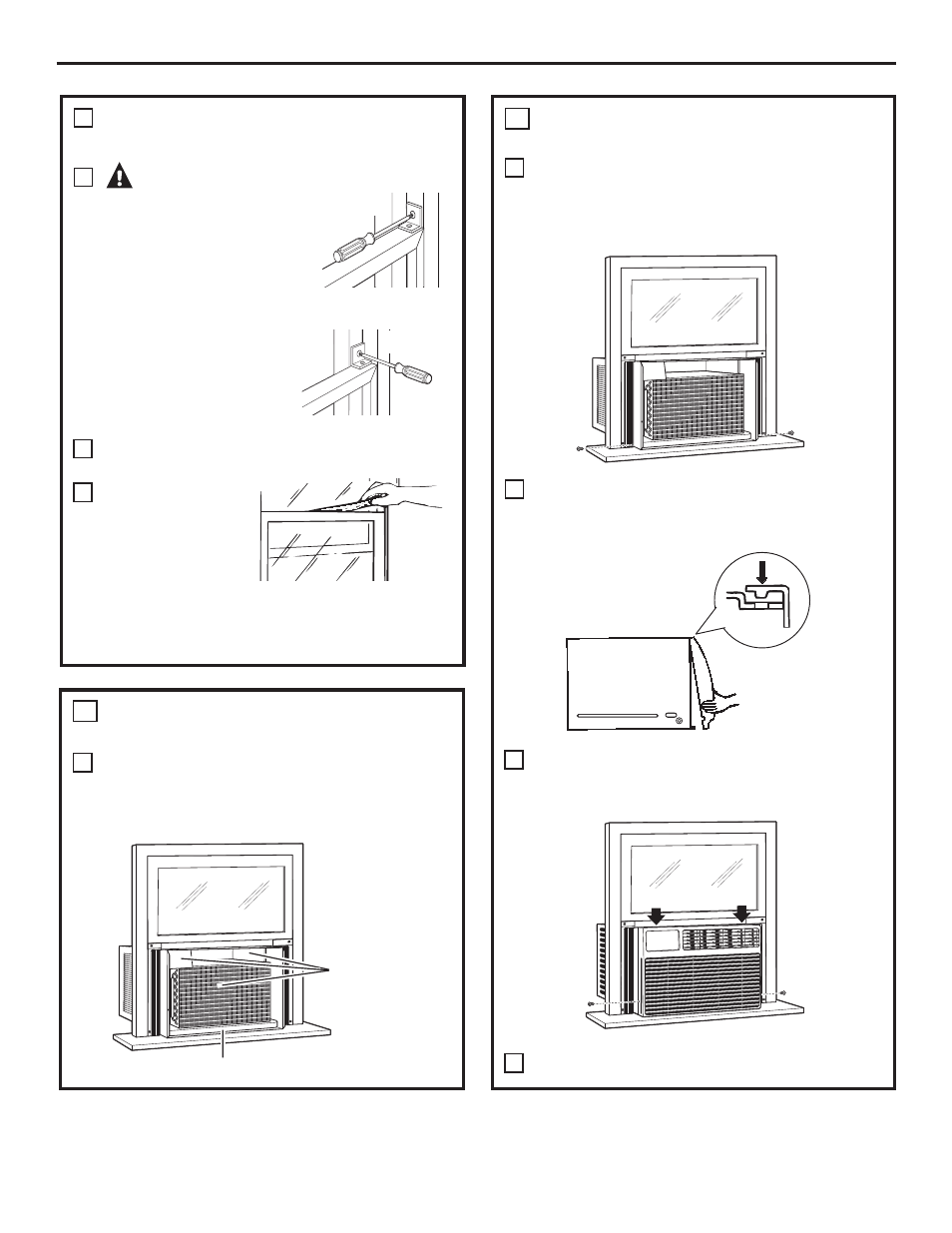

INSTALL THE AIR CONDITIONER
IN THE CASE (CONT.)
Replace the 2 ground screws removed earlier,
one on each side of the case.
IMPORTANT: The ground screws must be
reinstalled to ensure a proper ground.
Attach the front grille to the case by inserting
the tabs on the grille into the slots on the front
top of the case. Push the grille in.
Secure the front grille to the case by replacing
the 2 screws removed earlier. Press on the top
of the grille to help with side screw installation.
Connect power.
10
B
C
INSTALL THE AIR CONDITIONER
IN THE CASE
Slide the air conditioner into the case by the base
pan. Do not push on the controls, styrofoam air
discharge housing or the finned coils. Make sure
the air conditioner is firmly seated.
10
A
E
D
Do not press on
WKHVHDUHDV³
damage to the
unit may result
Base Pan
9 INSTALL SUPPORT BRACKET AND
FOAM TOP WINDOW GASKET
Attach the support bracket
with one Type C screw.
Cut the foam top window gasket to the window
width.
Stuff the foam
between the glass
and the window
to prevent air and
insects from getting
into the room.
NOTE: If the gasket supplied does not fit your
window, obtain appropriate material locally to
provide a proper installation seal.
A CAUTION:
To prevent broken glass or
damage to windows, on
vinyl or other similarly
constructed windows,
attach the support bracket
to the window side jam.
B
C
Wood
Vinyl
