3.
Slide the hinge bracket on the monitor into the opening on top of the pedestal. The panel will
click into place when fully inserted.

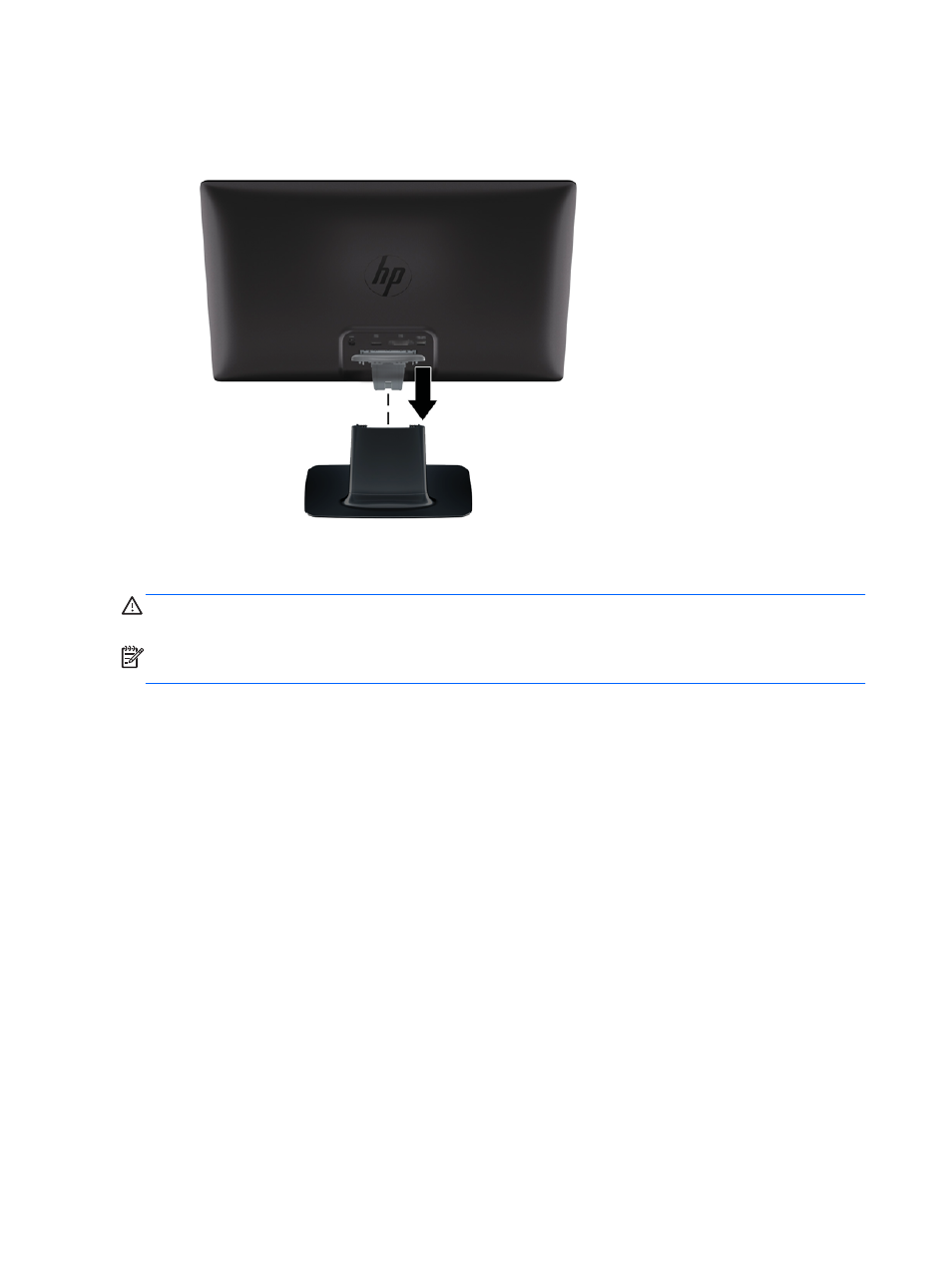

Figure 2-2
Inserting the Monitor Panel
Connecting Monitor Cables
CAUTION:
Before connecting cables to the monitor, ensure that the computer and monitor are
powered off.
NOTE:
When using a DVI, VGA, or HDMI signal, you must connect your audio output to external
speakers.
The video source is determined by the video cable used. The monitor will automatically determine
which inputs have valid video signals. The inputs can be selected by pressing the source button on
the front panel.
4
Chapter 2 Setting Up the Monitor
