Side components – HP Pavilion 23tm 23-inch Diagonal Touch Monitor User Manual
Page 15

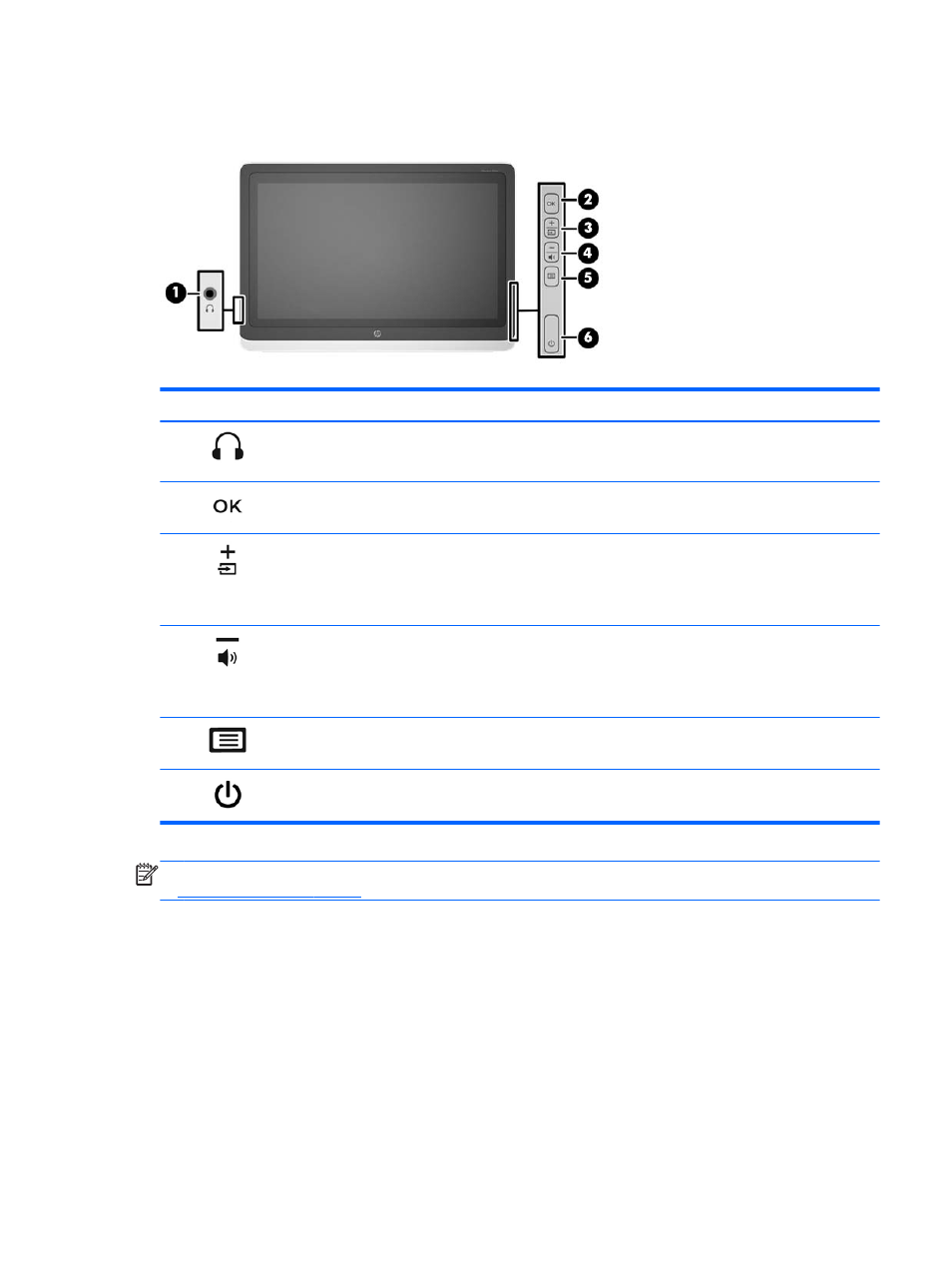

Side components
Component
Description
1
Headphone jack
Connects headphones.
NOTE:
Connecting headphones will mute the internal speakers.
2
OK button
If the OSD menu is on, press to select the highlighted menu item.
3
Plus/input button
If the OSD menu is on, press to navigate forward through the OSD
menu and increase adjustment levels.
If the OSD menu is inactive, press to activate the input button that
chooses the video signal input (DVI or HDMI).
4
Minus/volume button
If the OSD menu is on, press to navigate backward through the OSD
menu and decrease adjustment levels.
If the OSD menu is inactive, press to activate the volume adjustment
menu.
5
Menu button
Opens, selects from, or exits the OSD menu.
6
Power button
Turns the monitor on or off.
NOTE:
To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library
at
ENWW
Side components
