Using the display
Turning on the display
Turn on the display before turning on the computer. When the power is on, the LED on the power
button lights blue and the screen image will appear after about 10 seconds. If the LED doesn't light
blue or no image appears, please verify if the display is properly connected.

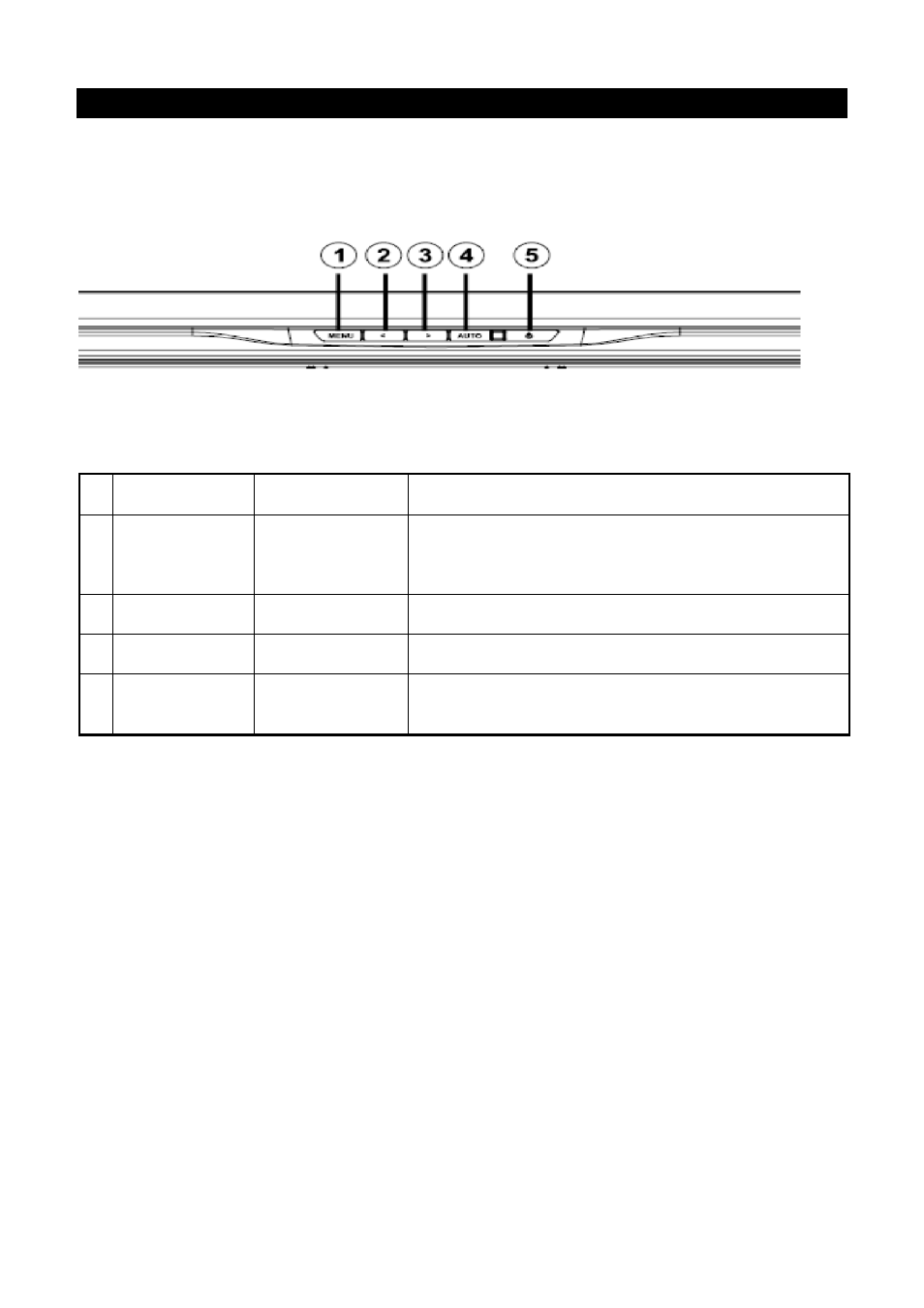

(Figure 4)
Function controls
1 MENU
OSD function
menu
OSD off: Displays the OSD function menu
OSD on: Confirm the OSD function option
2 <
Left/decrease
button
OSD off: Press this button directly to serve as the
shortcut for input
OSD on: Press this button to select/decrease the
adjustment
3 >
Right/increase
button
OSD on: Press this button to select/increase the
adjustment
4 AUTO
Auto adjustment
button
OSD off: Perform the auto adjustment function
OSD on: Exit the OSD function menu
5 POWER
Power
Switch
Power ON/OFF
Blue LED - Power ON mode
Orange LED - Power saving mode
