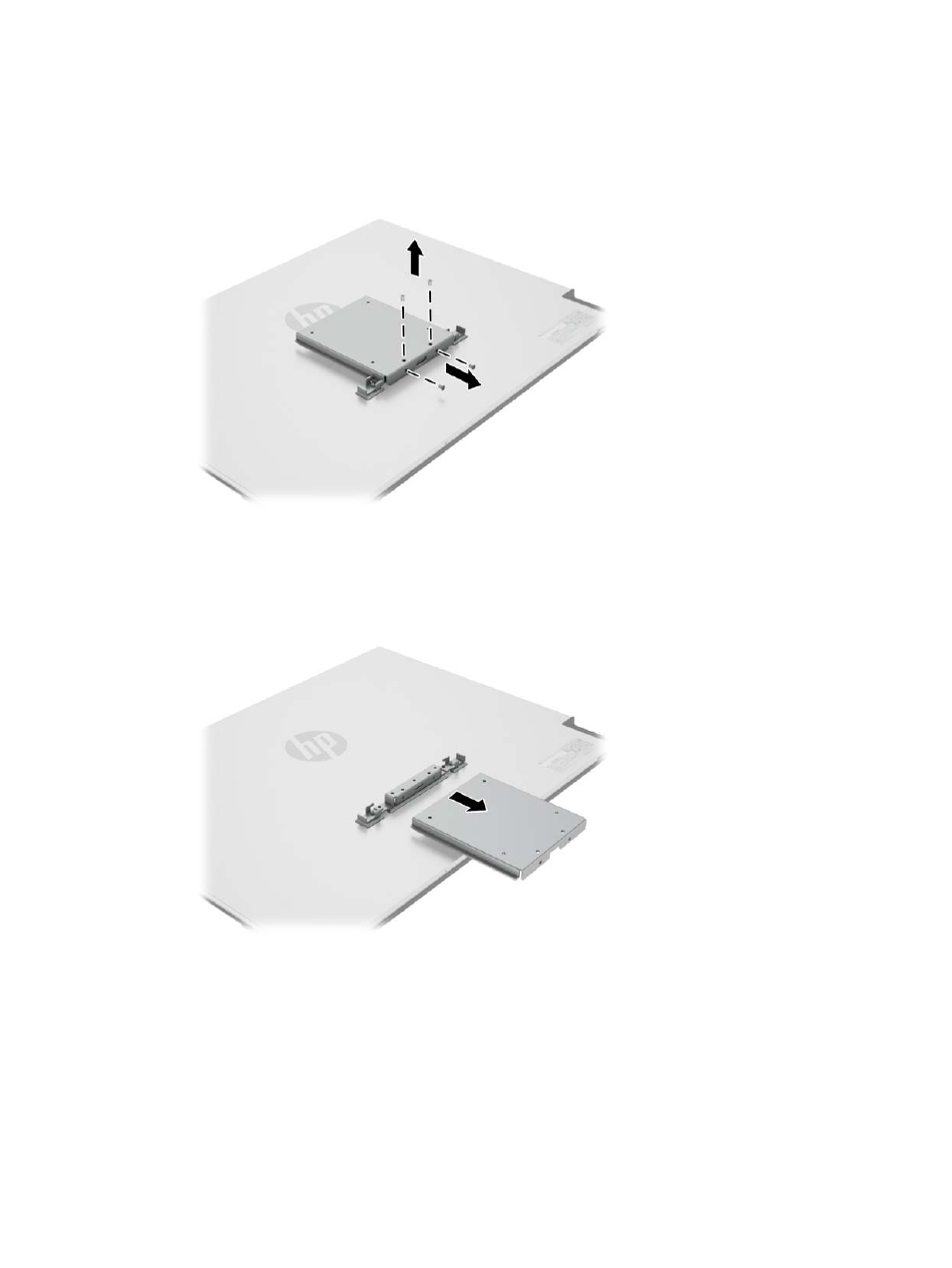

4.

Remove the four screws securing the lower edge of the VESA adapter plate to the bracket hinge.

Figure 2-10

Removing the screws securing the VESA adapter plate

5.

Slide the VESA adapter plate toward the lower edge of the monitor and off the bracket hinge.

Figure 2-11

Removing the VESA adapter plate

VESA Adapter Plate

11
