HP LP2475w Model

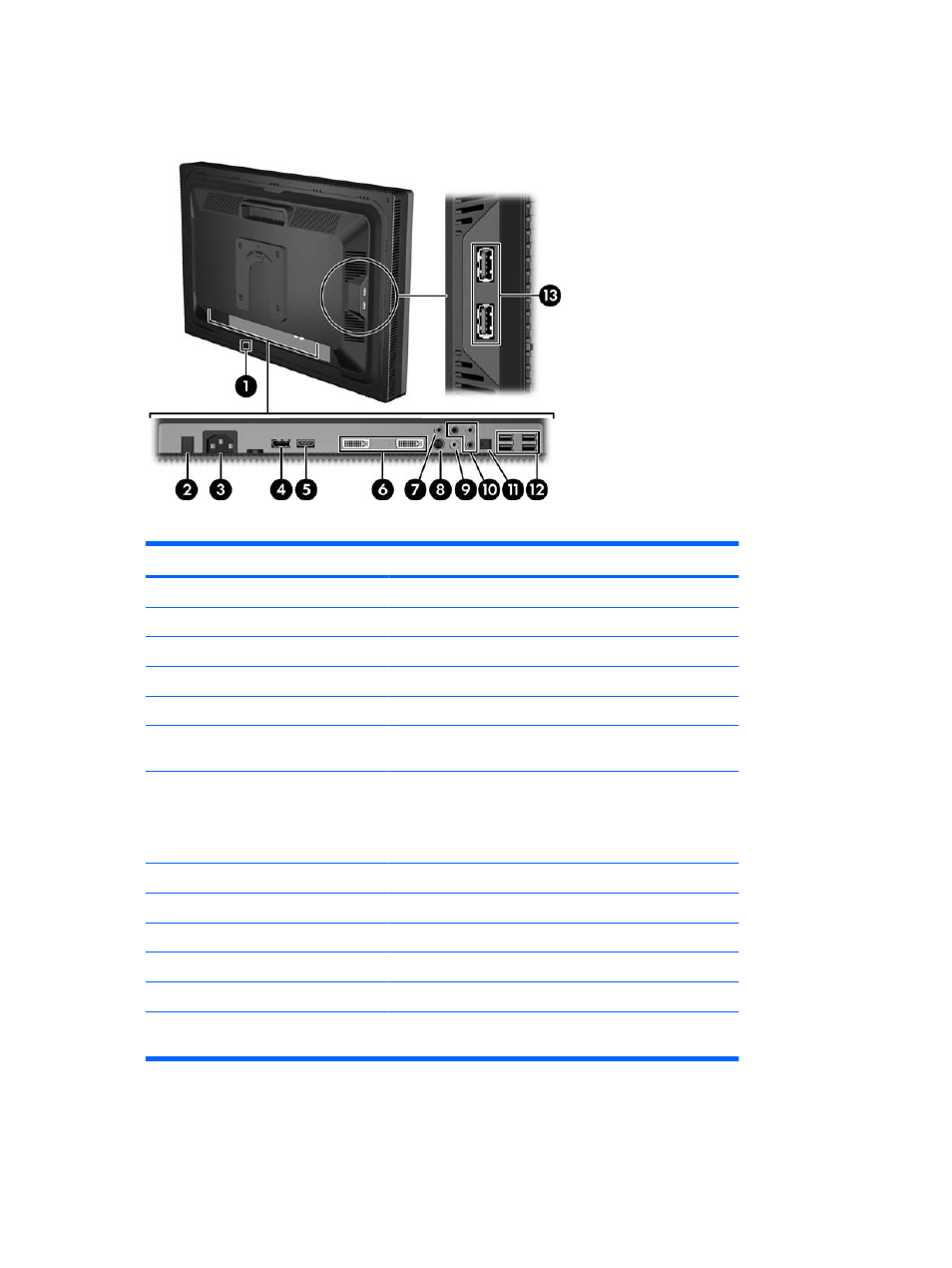

Figure 3-3 Rear Components
Table 3-2 HP LP2475w Rear Components
Component Function
1 Cable Lock Provision Provides slot for use with cable security locks.
2 Master Power Switch Turns off all power to the monitor.
3 AC Power Connector Connects the AC power cord to the monitor.
4 DisplayPort Connector Connects the DisplayPort signal cable to the monitor.
5 HDMI Connector Connects the HDMI signal cable to the monitor.
6 DVI-I Connectors Connects the DVI to VGA signal cable or DVI to DVI-D signal
cable to the monitor.
7 SPDIF Audio Connector Connects an audio cable from a digital audio input on an
external receiver or amplifier to the monitor.
NOTE: The SPDIF connector is only used with an HDMI
video input. It does not provide audio for other video inputs.
8 S-Video Connector Connects an S-Video signal cable to the monitor.
9 Composite Connector Connects a Composite signal cable to the monitor.
10 Component Connectors Connects Component signal cables to the monitor.
11 USB Upstream Connector Connects the monitor USB hub cable to a host USB port/hub.
12 USB Downstream Connectors Connects optional USB devices to the monitor.
13 USB Downstream Connectors
(side panel) Connects optional USB devices to the monitor.
8 Chapter 3 Setting Up the Monitor
